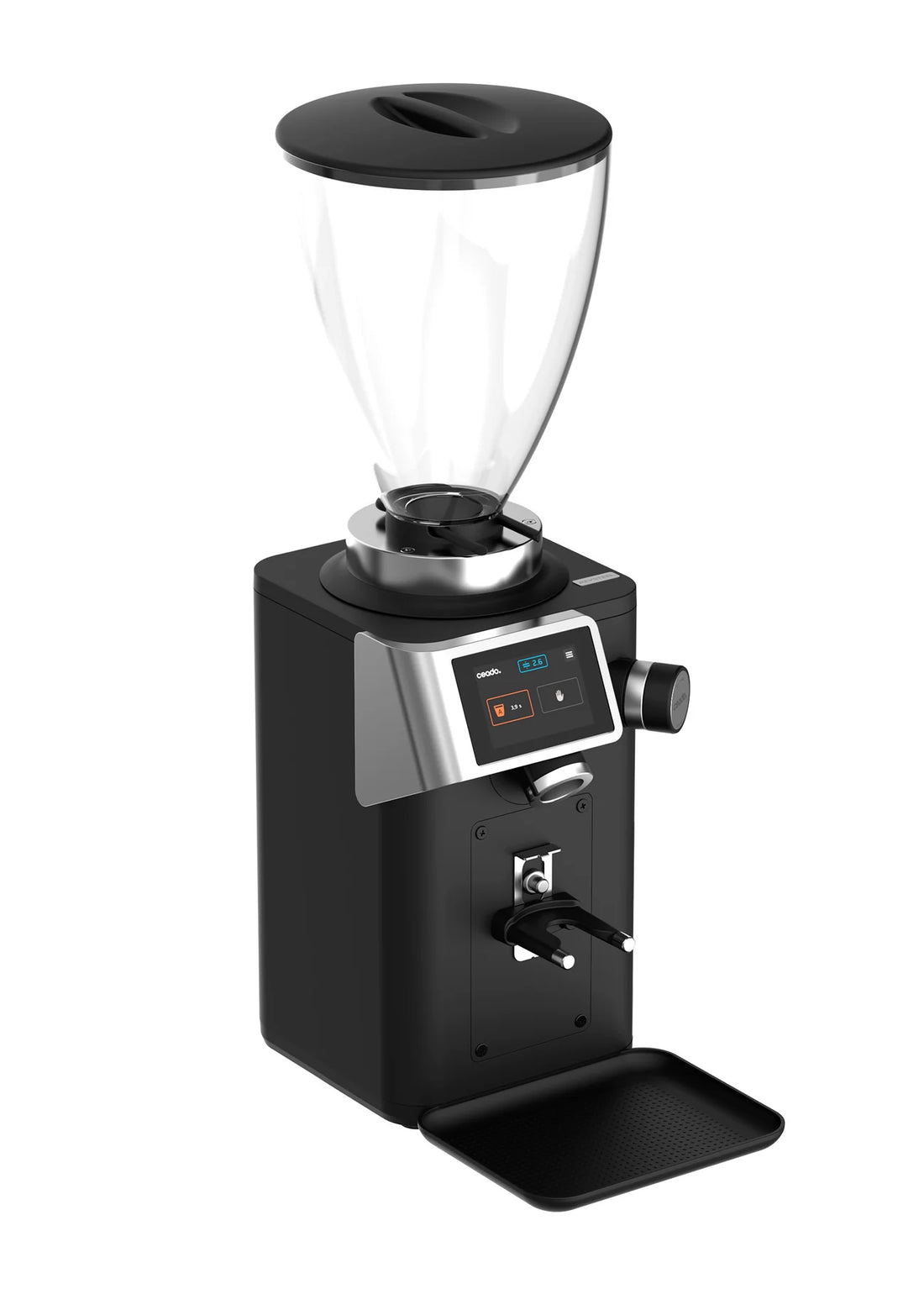

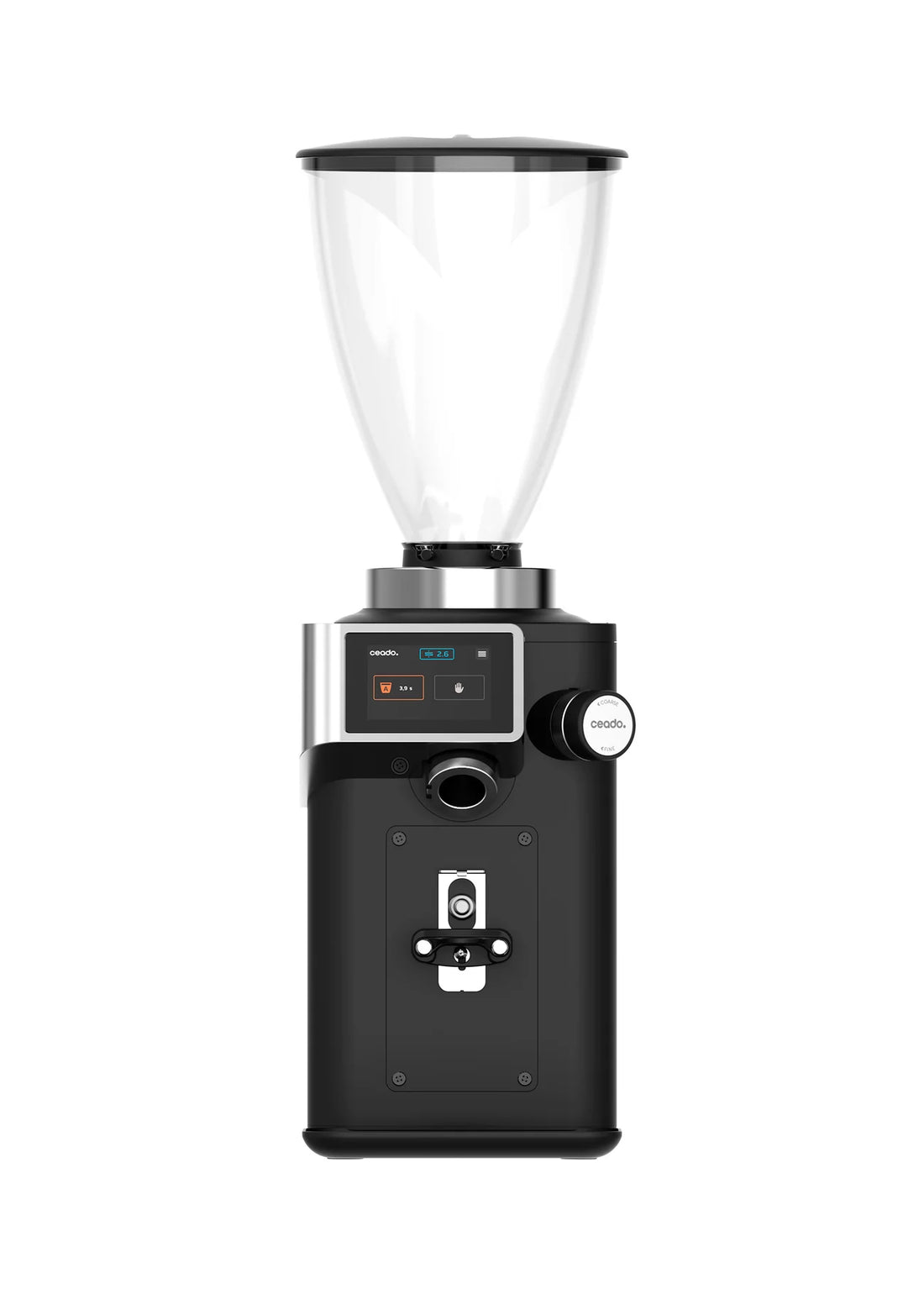

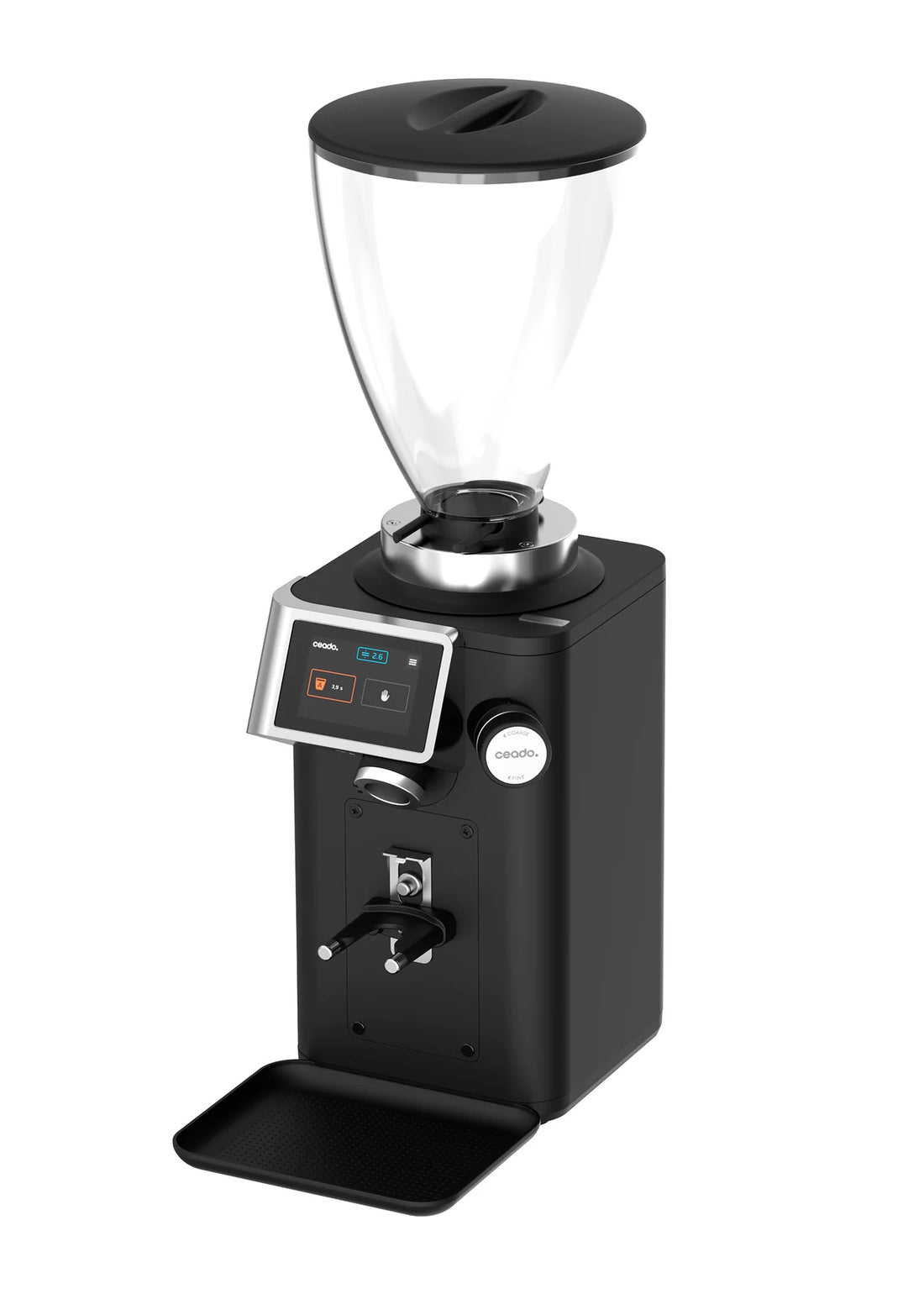

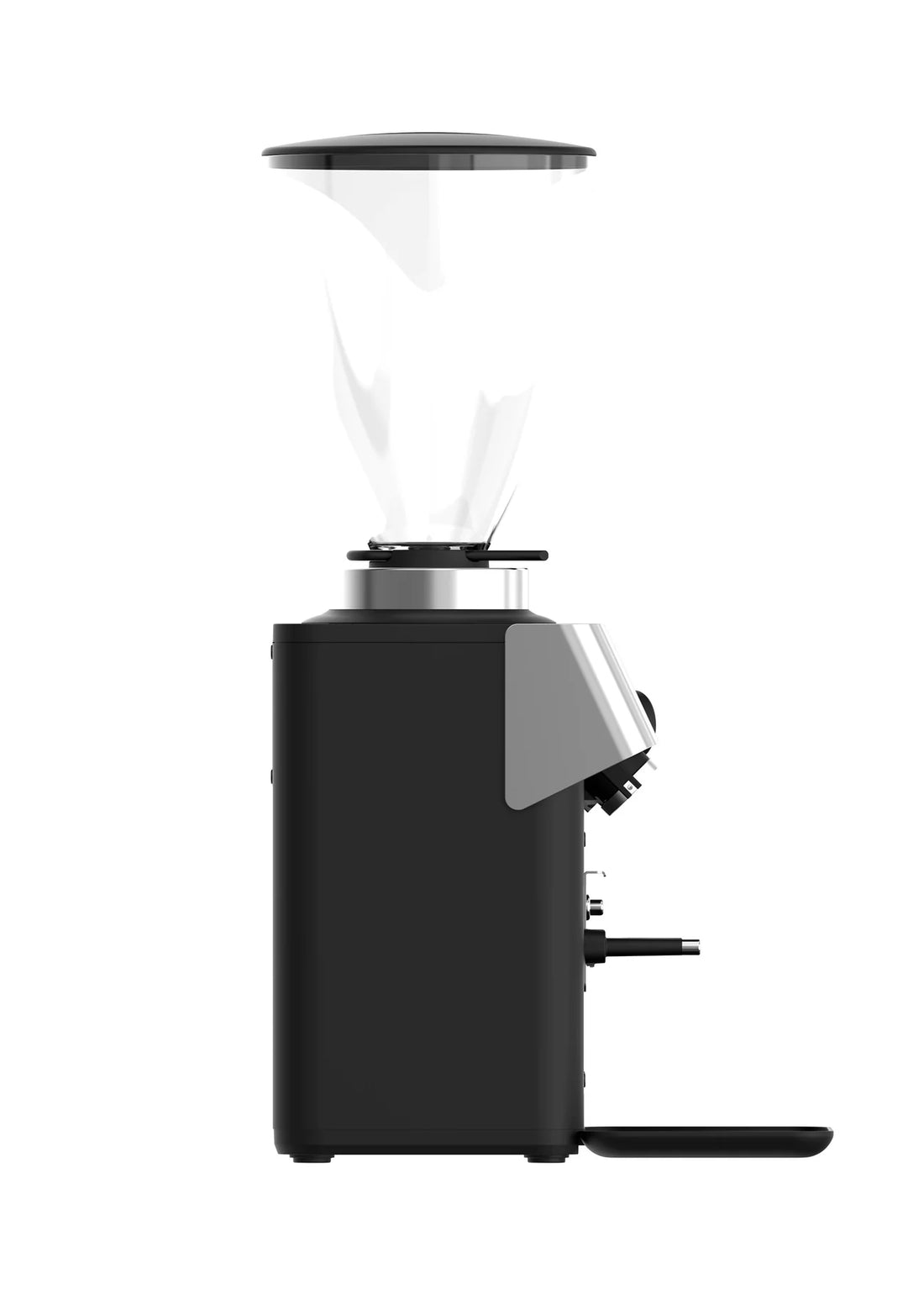

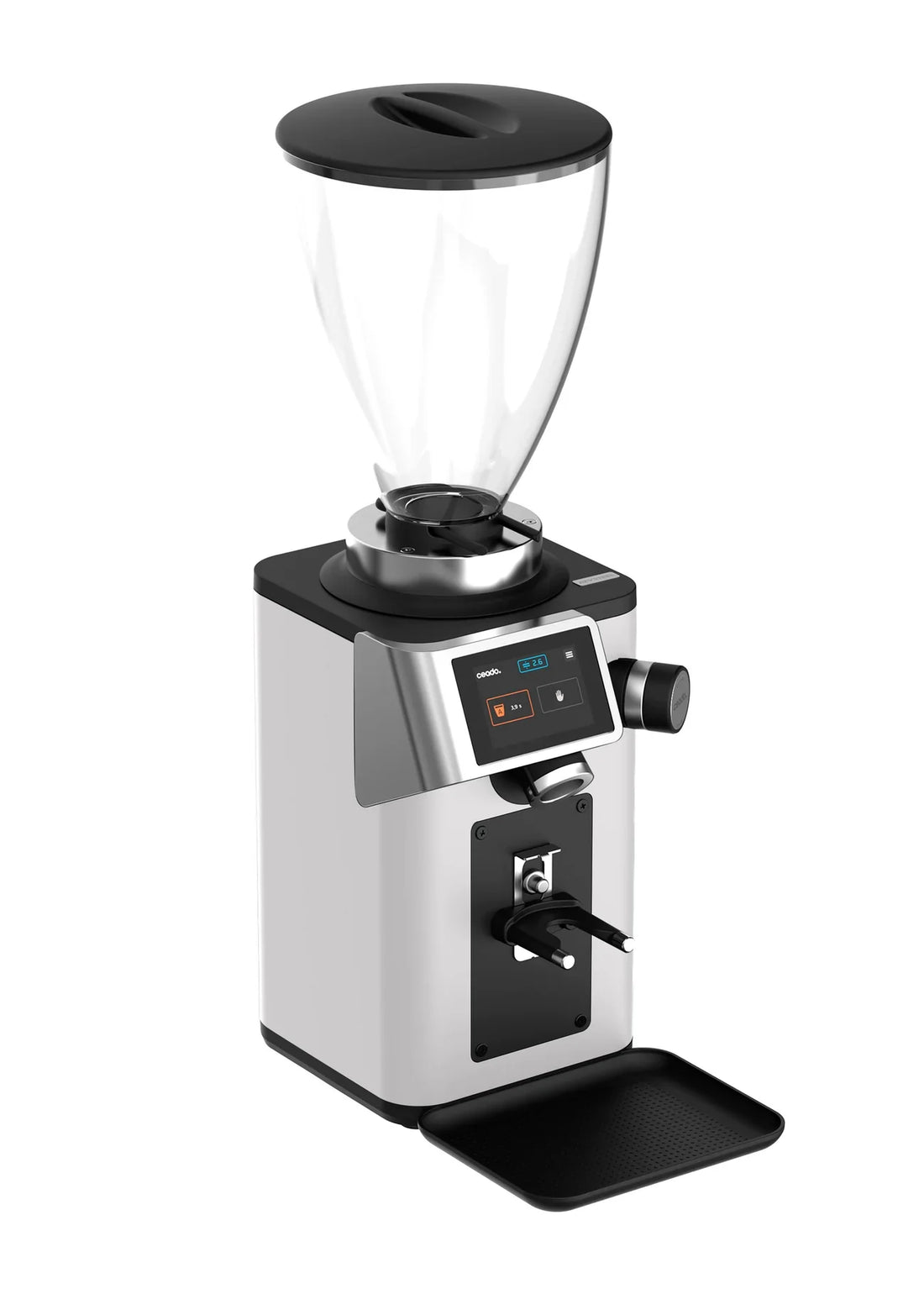

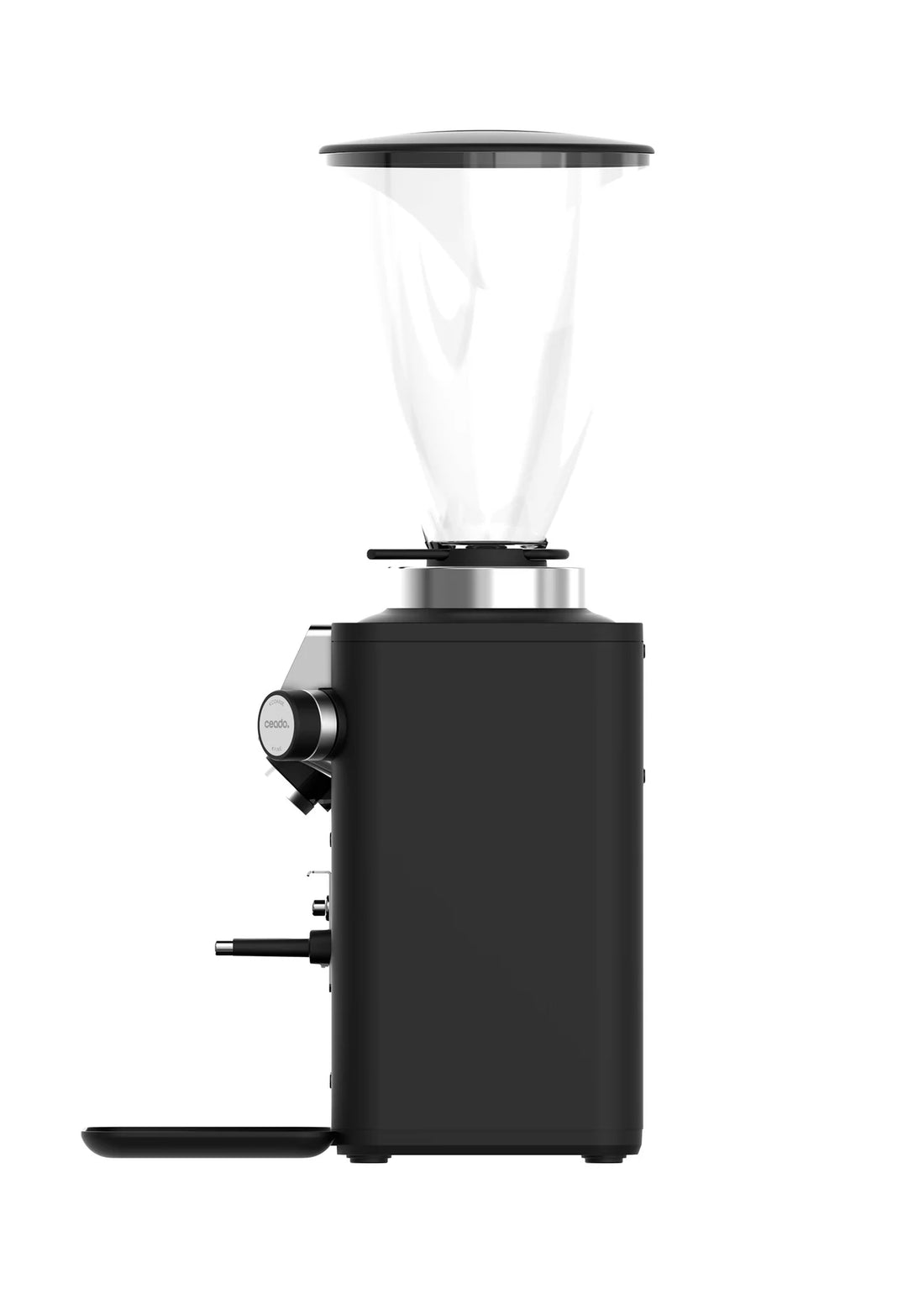

Ceado REV STEEL Espresso Grinder with PFA

Authorized dealer

Ceado REV STEEL Espresso Grinder with PFA

$2,139

No sales taxPrice match

Color: Black

In stock Free shipping

Excellent

4.7 on

Key specs

83 mm flat burrsBurrs · Flat Steel

Timed dosingDosing · Timed

4 s per double shotGrind speed · 5 g/s

About 88 doubles per fillHopper · 1600 g (3.5 lb)

23.3 in tallSize · 7.9 in × 10.6 in footprint · 31.7 lb

Runs on a standard US outletPower · 500W

See all specs ↓

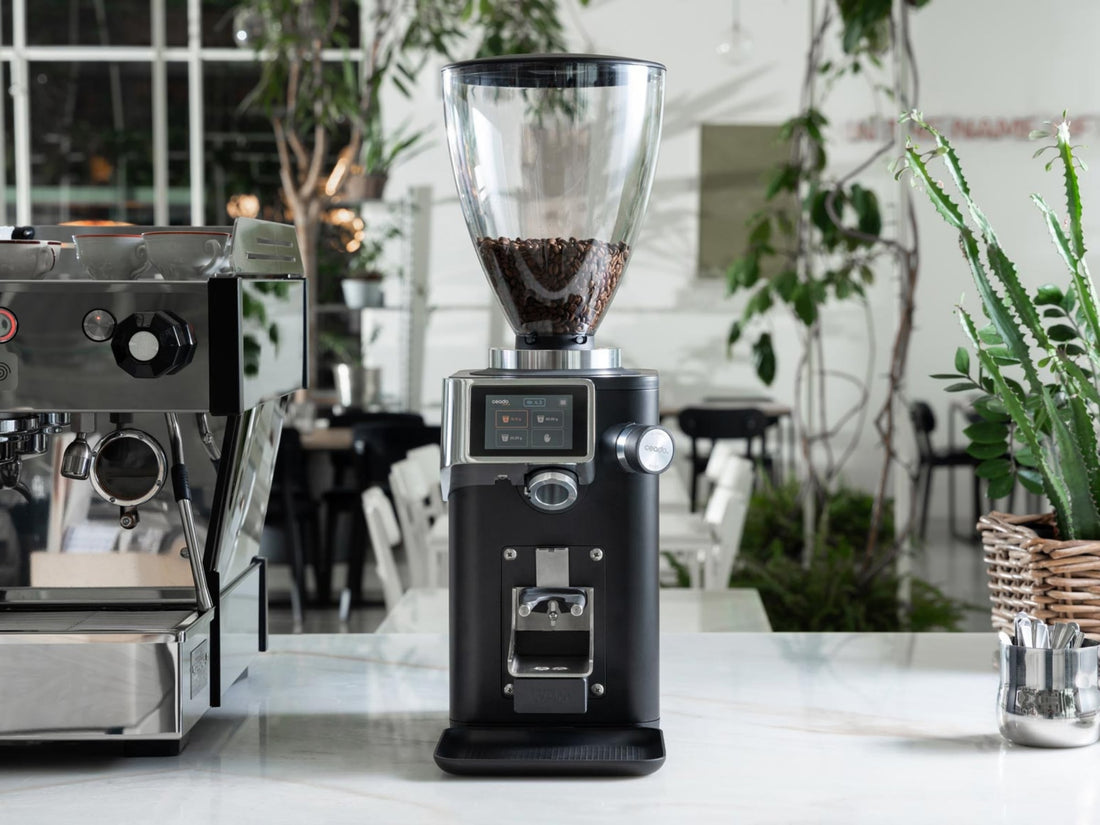

About the Ceado REV STEEL Espresso Grinder with PFA

The Ceado REV Steel delivers commercial‑grade performance to prosumer and café workflows. Its 83 mm flat steel burrs are paired with a 4 A motor for fast, quiet espresso grinding at around 5 g/s. A new ALIGN (Advanced Leveling Intelligent Grinding Nexus) system tracks burr position digitally, so your setting is always visible on‑screen and you can “pin” reference points to return to as needed. Choose models with WAM (Weight Adjustment Module) for grind‑by‑weight dosing, or without WAM for traditional time‑based operation—both built on the same chassis with a modern asymmetrical design.

WAM vs. Non-WAM

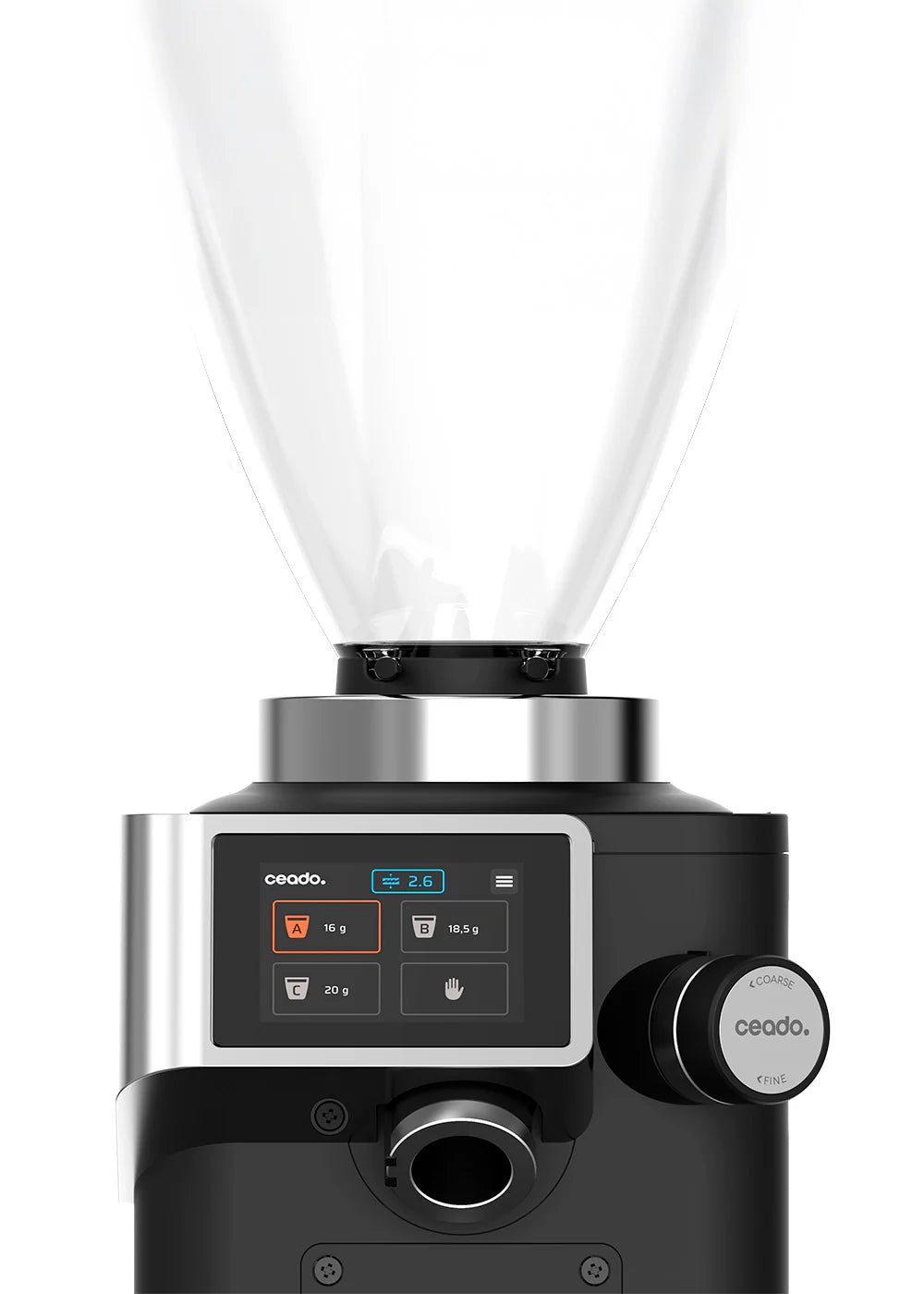

WAM (Weight Adjustment Module): Tares your portafilter and dispenses by weight with 0.1 g precision; three programmable doses (A/B/C) plus manual; two activation styles pre-selected start with automatic activation or PFA (portafilter activation) bypass with touch screen grinding.

Non‑WAM: Time‑based dosing with pre‑selected, two‑step start, PFA bypass, and click‑start modes; optional pulsing lets you top‑off a partial dose.

Key Features

Flat Steel 83mm Burrs – Grinder tracks burr life and keeps a service history. 900kg lifespan.
ALIGN Digital Positioning – Stepless adjustment with a live numeric readout; tap to view setting; pin current position for quick return; bottom‑burr moves so removing the top burr doesn’t lose your setting.
Fast & Quiet – 5 g/s at espresso fineness with lower noise than prior Ceado prosumer models.

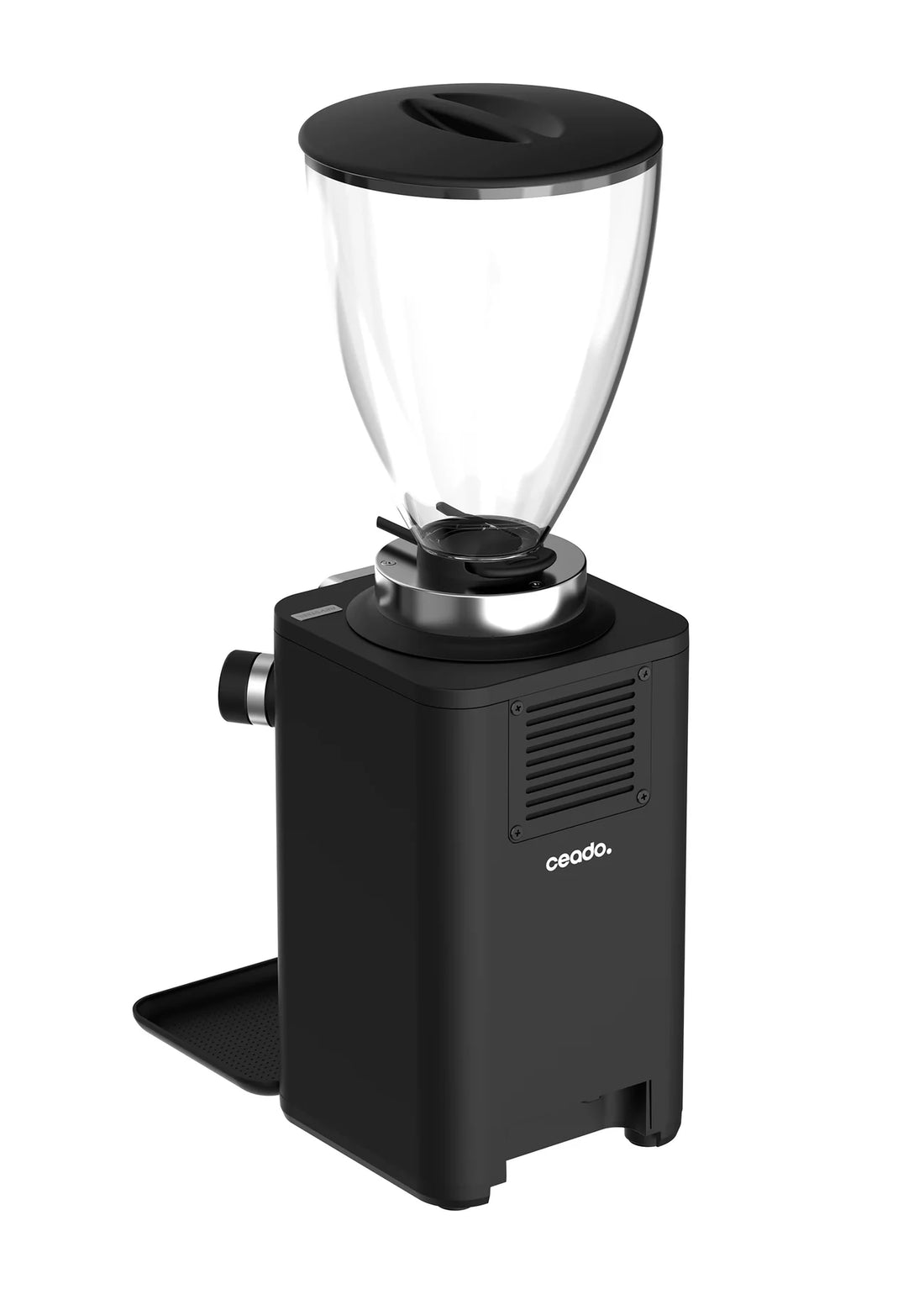

Serviceable by Design – Grinds chute removes via a single screw for deep cleaning and exposes the anti‑static de‑clumper; rear fan vent cover and filter pops out for rinsing; on‑screen filter‑clean reminder.
Thermal Management – Milled aluminum grind chamber acts as a heat sink; fan has three duty profiles (1-home use, 2 default, 3-high‑volume) driven by an hourly grind‑count algorithm.
Work Area Light – Chute mounted light with adjustable brightness (25–100%) and color (white, blue, violet, amber).
UI & Controls – Sleep/standby, display brightness, language, date/time, QR user manual, firmware info & factory reset, manager lock permissions. Scale activation/calibration menu supports later WAM installation.

Specifications

Performance
Burr diameter	83 mm
Burr type	Flat
Burr material	Flat Steel
Burr speed	1700 rpm
Burr grind life	900 kg
Grinding capacity	5 g/s
Hopper capacity	1600 g (3.5 lb)
Dosing method	Timed
Control and display	Touchscreen
Programmable recipes	Single, Double, Triple Shot
Dispensing	Doserless
Physical Measurements
Width	7.9 in
Depth	10.6 in
Height	23.3 in
Net weight	31.7 lb
Shipping weight	35.7 lb
Power
Voltage	220-240 V \| 110-120 V
Frequency	50-60 Hz
Wattage	500W
Certifications
NSF certified	Yes
Model & Series
Series	REV
Warranty	12-month parts warranty
More specs
Burr type	Flat Steel
Grinder Features	Time-Based Grinding, Display Customization, Easy to Access Burrs, Digital Burr Positioning, Internal Fan, Noise Reduction
Grinder Setting Controls / Adjustment Type	Stepless
Controls and Additional Features	Programmable Dosing, Worn Burrs Alert, Fan Filter Alert, Display Management, Screen Brightness, Grinding Light
App Connectivity	No

Manuals & downloads3

ManualCeado REV STEEL Espresso Grinder with PFA

Spare PartsCeado REV STEEL Espresso Grinder with PFA

BrochureCeado REV STEEL Espresso Grinder with PFA

Questions about the Ceado REV STEEL Espresso Grinder with PFA8

Who should consider the REV STEEL grinder?

It’s ideal for cafés and roasteries that require robust, steel burr grinding at a lower price point than the TITAN.

How does the grind quality compare to the REV TITAN?

The grind quality is excellent for commercial espresso, but burrs may wear faster compared to titanium.

Is it suitable for high-volume grinding?

Yes, it’s designed for continuous café use, but TITAN is more suited for extreme heavy duty.

Is there a noticeable flavor difference between steel and titanium burrs?

Some baristas report steel burrs give a brighter cup, while titanium provides a smoother profile and lasts longer.

Does it support stepless adjustment?

Yes, precise stepless adjustment for fine-tuning espresso.

What makes Ceado grinders different from other brands?

Ceado grinders are known for their Italian engineering, low retention designs, powerful motors, and advanced burr technology that ensures consistent grind quality for espresso professionals and enthusiasts.

How durable are Ceado grinders?

Ceado grinders are built with solid metal housings, long-lasting burrs, and powerful motors. With proper maintenance, they can last many years in commercial environments and even longer in home settings.

How noisy are Ceado grinders?

Ceado grinders are engineered to reduce vibration and noise. They are quieter than many comparable commercial grinders, though REV series models are more powerful and slightly louder.
