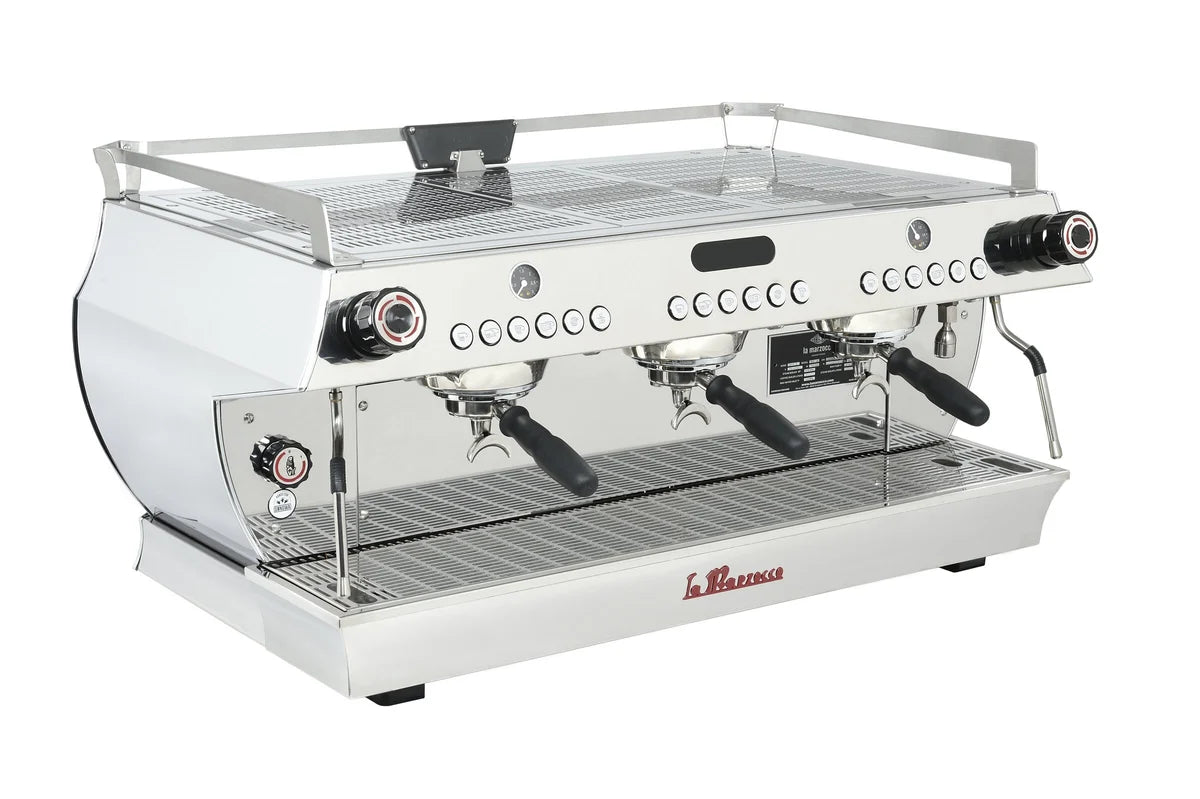

La Marzocco GB5 S AV 3 Group Espresso Machine
Authorized dealer

La Marzocco GB5 S AV 3 Group Espresso Machine

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)
$26,800
No sales taxPrice match

Configuration: 3 Group

Ships in 2 weeks Scheduled freight $799

Ready for your opening from

La Marzocco-certified installation By a local technician, booked with your delivery
Local service and genuine partsFull La Marzocco warranty, claims handled by us

Free cancellation before it ships · Returns and terms

Extend warranty to 5 years From $1,049 ·

Still deciding? Start with your questions

Tap one and we'll pick it up in the chat.

Smart tool

Build your café bar

Takes 1 minute1 min

Right gear, faster service, less waste.

Unlock up to $1,000 off your setupBuild my café bar

Key specs

3 groupsGroup heads
Dual boilerBoiler system
Needs a 31.5 A, 208–240 V circuitPower · 6,800 W
Plumbed in: water line + drainWater
38.0 in wideSize · 25.0 in deep · 21.4 in tall · 171.0 lb
11 L steam boilerSteam
See all specs ↓

About the La Marzocco GB5 S AV 3 Group Espresso Machine

The La Marzocco GB5 S AV 3 combines elegant Italian design with proven commercial espresso technology in a professional three-group machine built for high-volume cafés, restaurants, hotels, and specialty coffee environments. Featuring programmable volumetric dosing, a dual boiler system, saturated brew groups, PID temperature control, and commercial-grade construction, it delivers exceptional temperature stability, consistent espresso extraction, and reliable steam performance throughout demanding daily service.


The GB5 S AV is designed for efficient and repeatable barista workflow with programmable volumetric dosing that automatically stops each shot at the selected volume. Three independent group heads allow multiple beverages to be prepared simultaneously during busy service, while the ergonomic controls, portafilters, and spacious work area help baristas maintain speed, accuracy, and consistency throughout daily operation.


Powered by dual boilers with PID temperature control, the GB5 S AV 3 maintains precise brewing temperatures while providing dependable steam power for milk-based beverages. Its saturated brew groups, commercial-grade components, and durable stainless steel construction provide the reliability and long-term performance expected from La Marzocco, making it a dependable choice for high-volume coffee operations seeking automated dosing, consistent results, and classic Italian design.

Real setups from our customers

Specifications

Brewing
Group heads3
Boiler systemDual Boiler
Coffee boiler capacity5 L
Steam boiler capacity11 L
Temperature controlDual PID
Water sourcePlumbed
Features
DisplayDigital Display
CleaningAutomatic Backflush
AutosteamOptional
ConnectivityPro App Compatible
Physical Measurements
Width38.0 in
Depth25.0 in
Height21.4 in
Net weight171.0 lb
Power
Voltage208–240 V
Frequency60 Hz
Wattage6,800 W
Amperage31.5 A
Phase1
Certifications
CertificationsUL 197, NSF/ANSI 8
Model & Series
SeriesGB5 S AV
Warranty12-month parts
More specs
FeaturesProgrammable volumetric dosing, integrated shot timers, dimmable barista lights

Manuals & downloads5
