Open image viewer

Full manufacturer warranty

MI40

$1,329

No sales taxPrice match

Color: Black

In stock Free shipping

Excellent

4.7 on

Key specs

65 mm flat burrsBurrs

Grinds on demandDosing · Timed, On-Demand

About 66 doubles per fillHopper · 1200 g (2.6 lb)

22.05 in tallSize · 7.64 in × 12.09 in footprint · 19.62 lb

Runs on a standard US outletPower · 480W

See all specs ↓

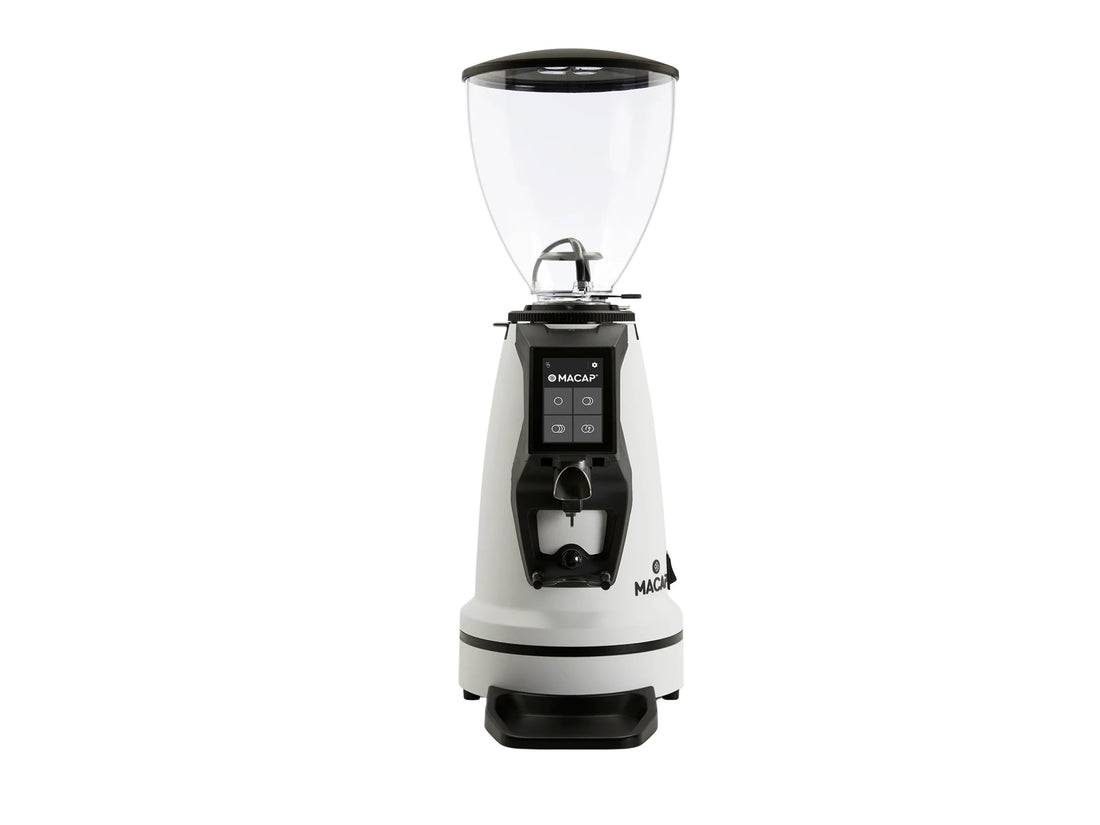

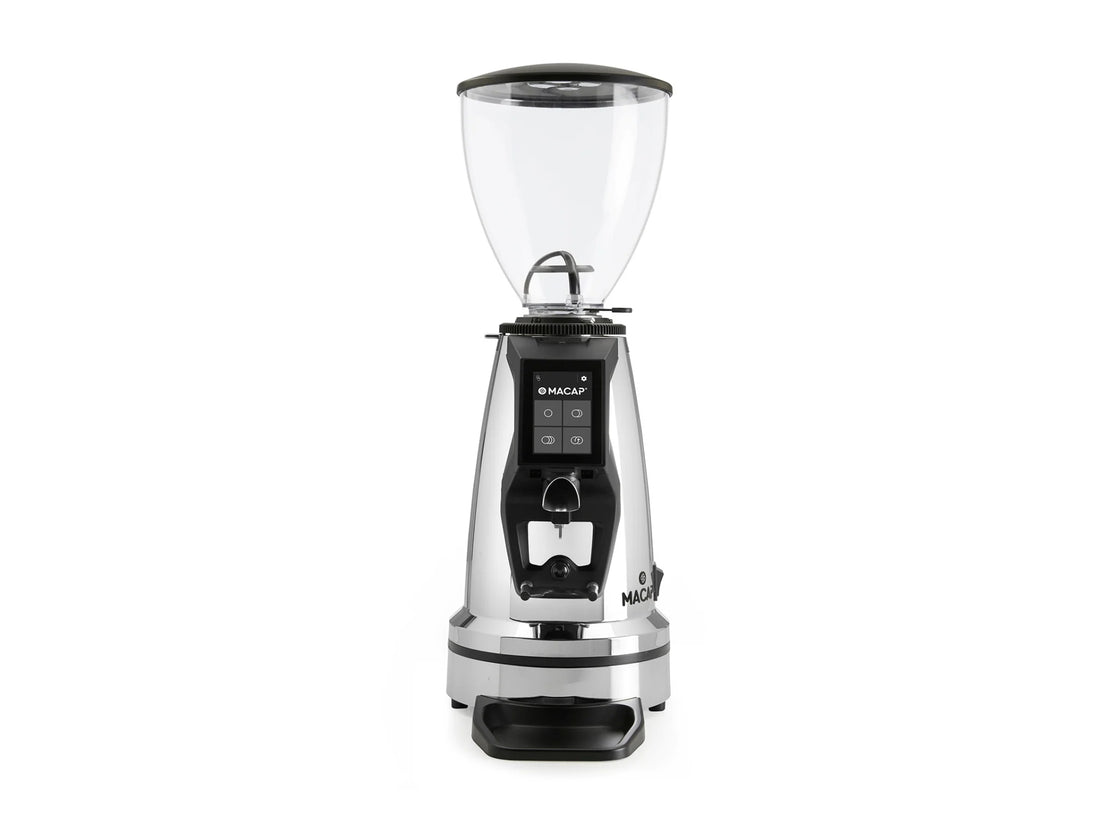

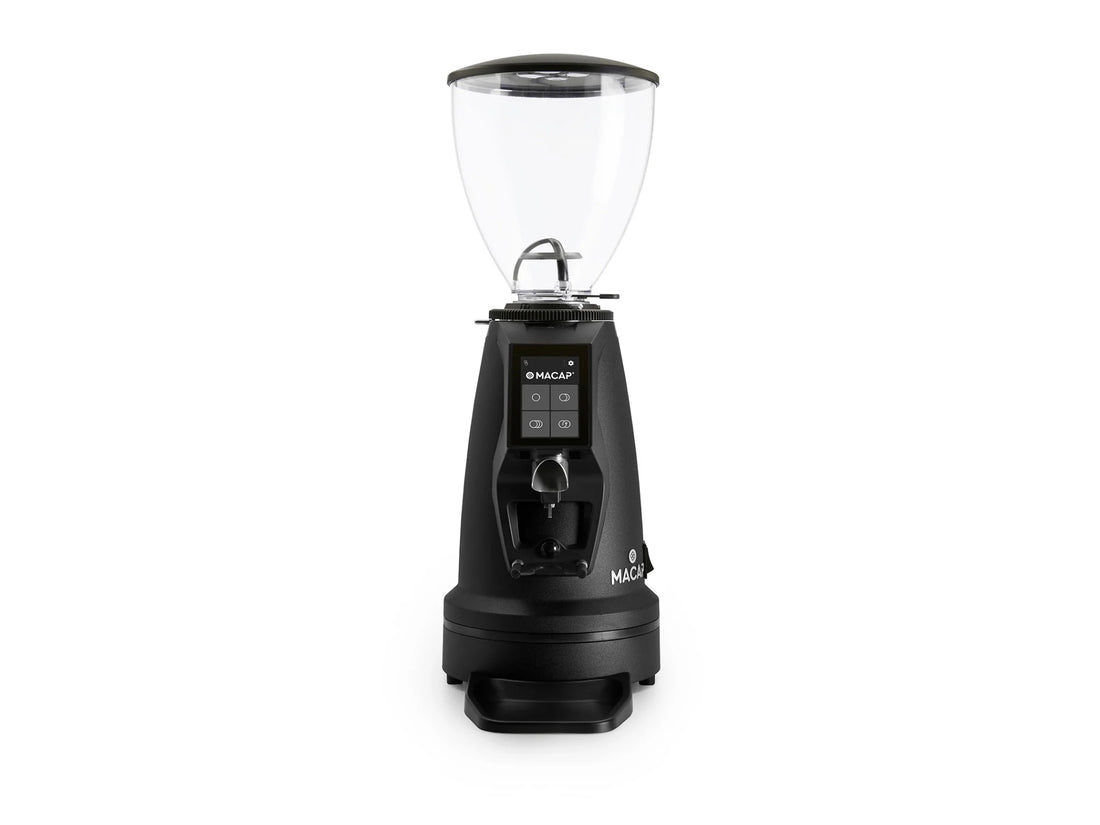

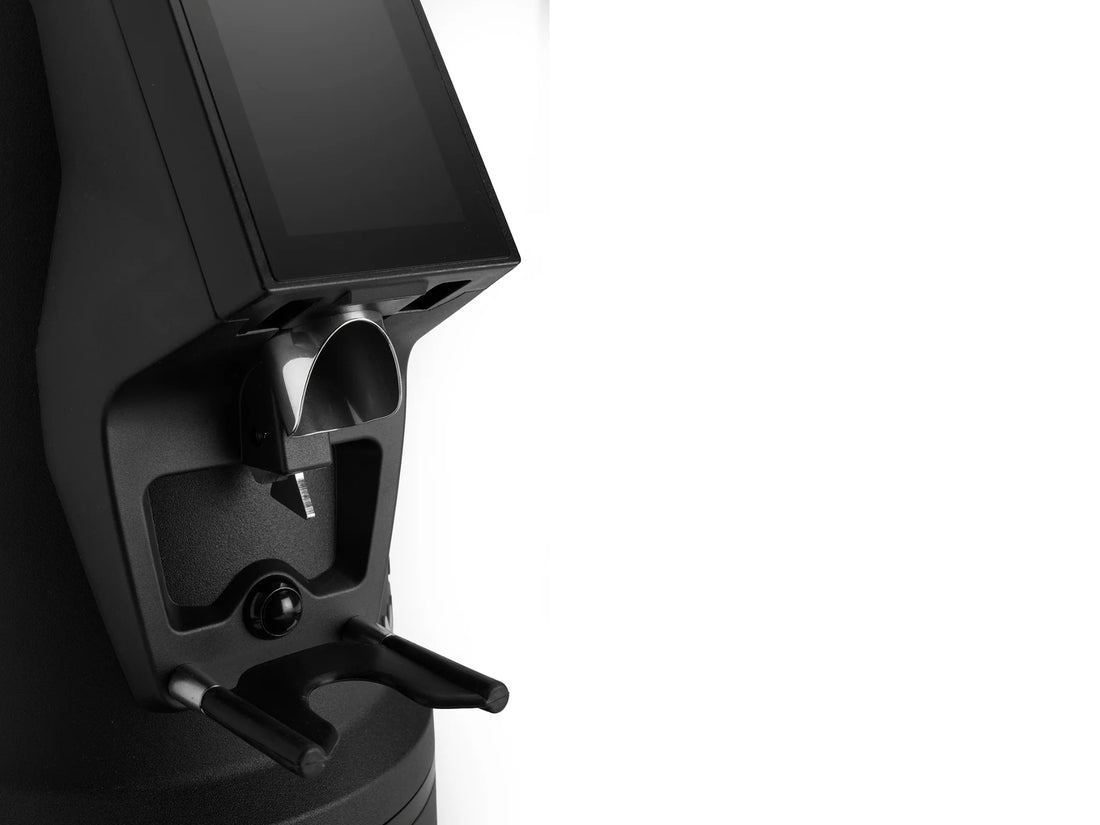

About the MI40

The Macap MI40 grinder offers modern features like a 3.5" touchscreen display and customizable dosing options. With 65mm flat burrs, an adjustable cooling fan, and an intuitive interface, it ensures precise and efficient grinding. Ideal for those seeking versatility with three working modes and easy dose customization.

Specifications

Performance
Burr diameter	65 mm
Burr type	Flat
Burr speed	1400 rpm (50 Hz) – 1680 rpm (60 Hz)
Hopper capacity	1200 g (2.6 lb)
Dosing method	Timed, On-Demand
Control and display	Touch Display
Physical Measurements
Width	7.64 in
Depth	12.09 in
Height	22.05 in
Net weight	19.62 lb
Power
Voltage	110V
Wattage	480W
Model & Series
Series	MI40
Warranty	2 year parts warranty

Manuals & downloads2

Spare PartsMI40

BrochureMI40

Questions about the MI409

What type of burrs do the Macap MI20 Touch and Macap MI40 Touch use?

The MI20 Touch features 58 mm flat steel burrs, while the MI40 Touch upgrades to 65 mm flat steel burrs for faster grinding and higher daily capacity. Both use precision-engineered hardened steel burrs for consistent espresso grinding.

What is the main difference between the Macap MI20 Touch and Macap MI40 Touch?

The MI20 Touch is designed for low-to-medium volume cafés or home baristas, whereas the MI40 Touch offers greater power, larger burrs, and faster output — making it ideal for busy commercial environments.

Do the MI20 Touch and MI40 Touch grinders have a touchscreen display?

Yes. Both models feature a 3.5-inch color touchscreen for intuitive control of dose programming, grind time, and operating modes.

How many programmable doses can I set?

Both grinders let you program up to four coffee doses plus a manual mode, allowing precise and repeatable dosing for single, double, or custom recipes.

What operating modes do these grinders offer?

The MI20 Touch and MI40 Touch both feature multiple working modes: Standard, Push & Grind, and Barista Mode, providing flexibility for different workflows and levels of automation.

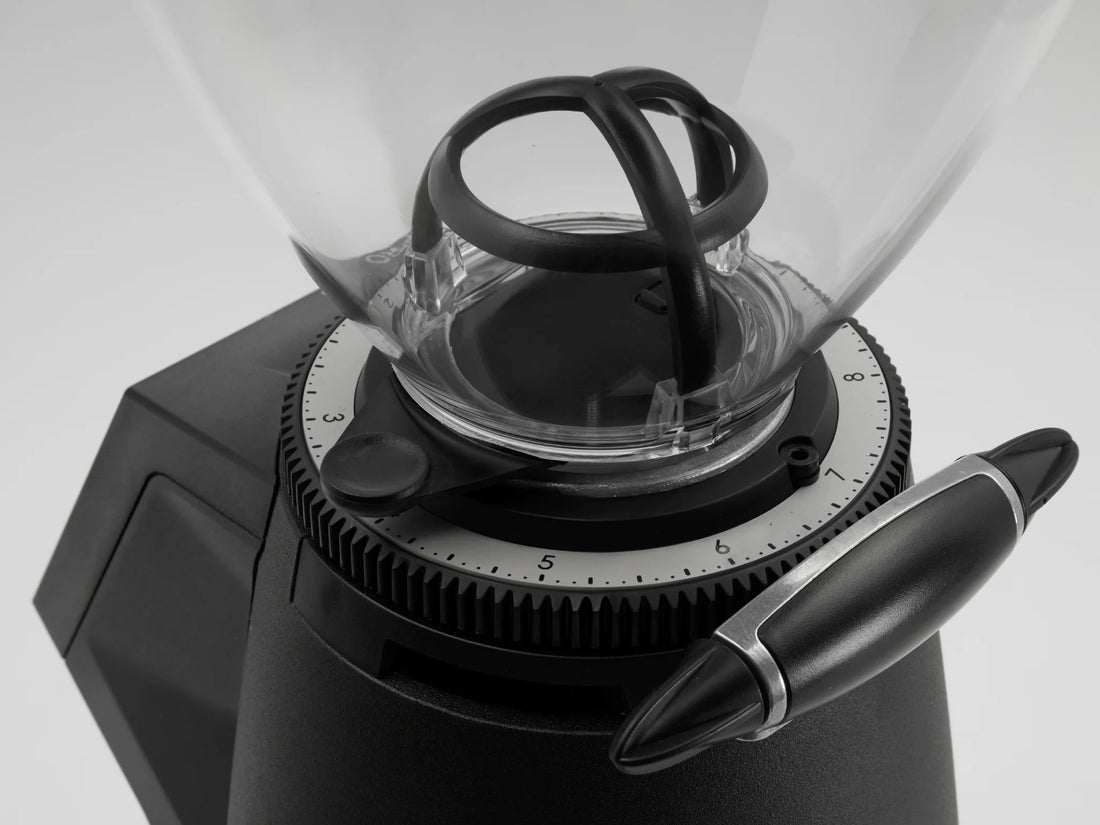

How fine is the grind adjustment on these models?

Both grinders use a stepless micrometric adjustment system, allowing extremely fine tuning for espresso grind settings without stepped limits.

What is the grind speed or productivity rate?

The MI20 Touch delivers approximately 2–2.6 g/s, while the MI40 Touch produces around 2.6–3.3 g/s, depending on roast and grind size.

What are the hopper capacities of these models?

The MI20 Touch includes a 0.5 kg hopper, suitable for small operations, while the MI40 Touch has a larger 1.2 kg hopper to handle higher demand.

Are these grinders quiet and stable during use?

Yes. Both feature anti-vibration metal forks, stable die-cast bodies, and optimized ventilation systems. The MI40 also includes active air cooling, keeping burrs cooler under heavy use.
