Zumex Minex Orange Juicer 04917
Authorized dealer

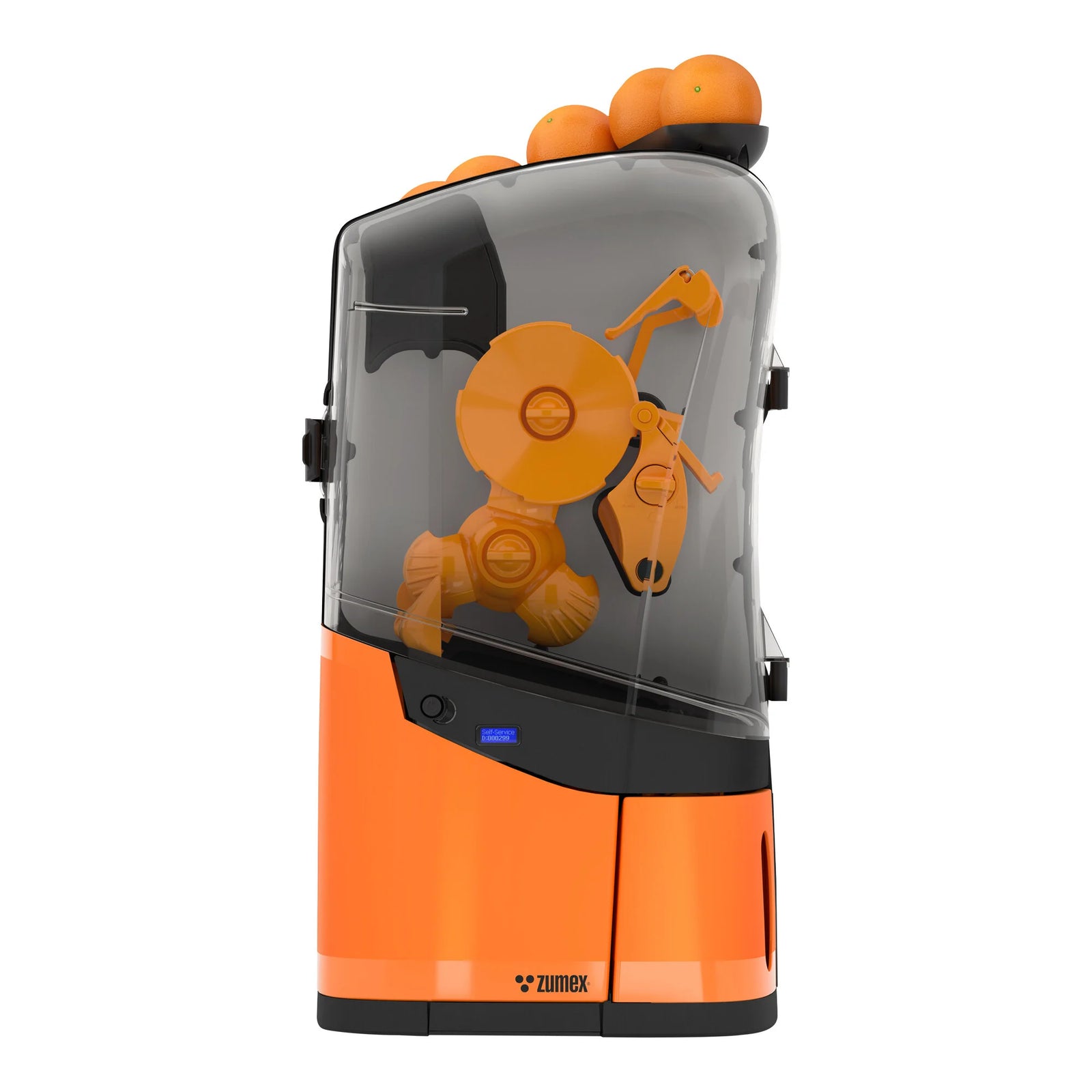

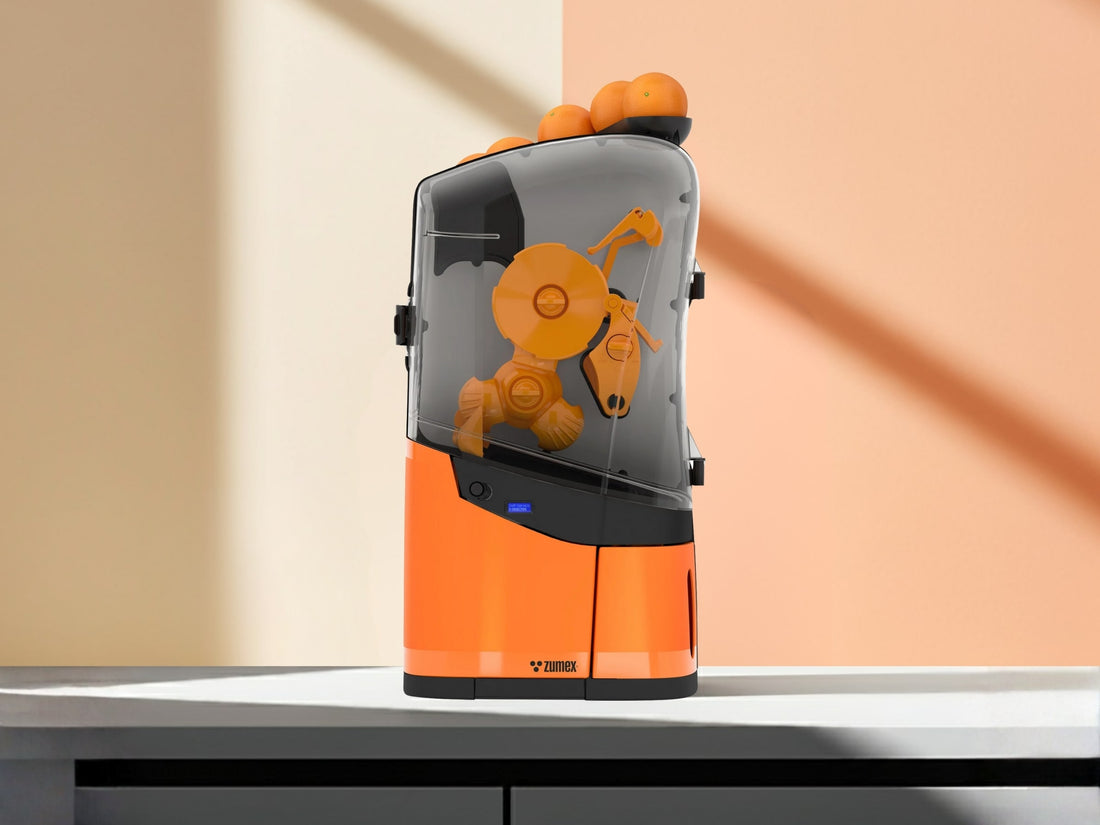

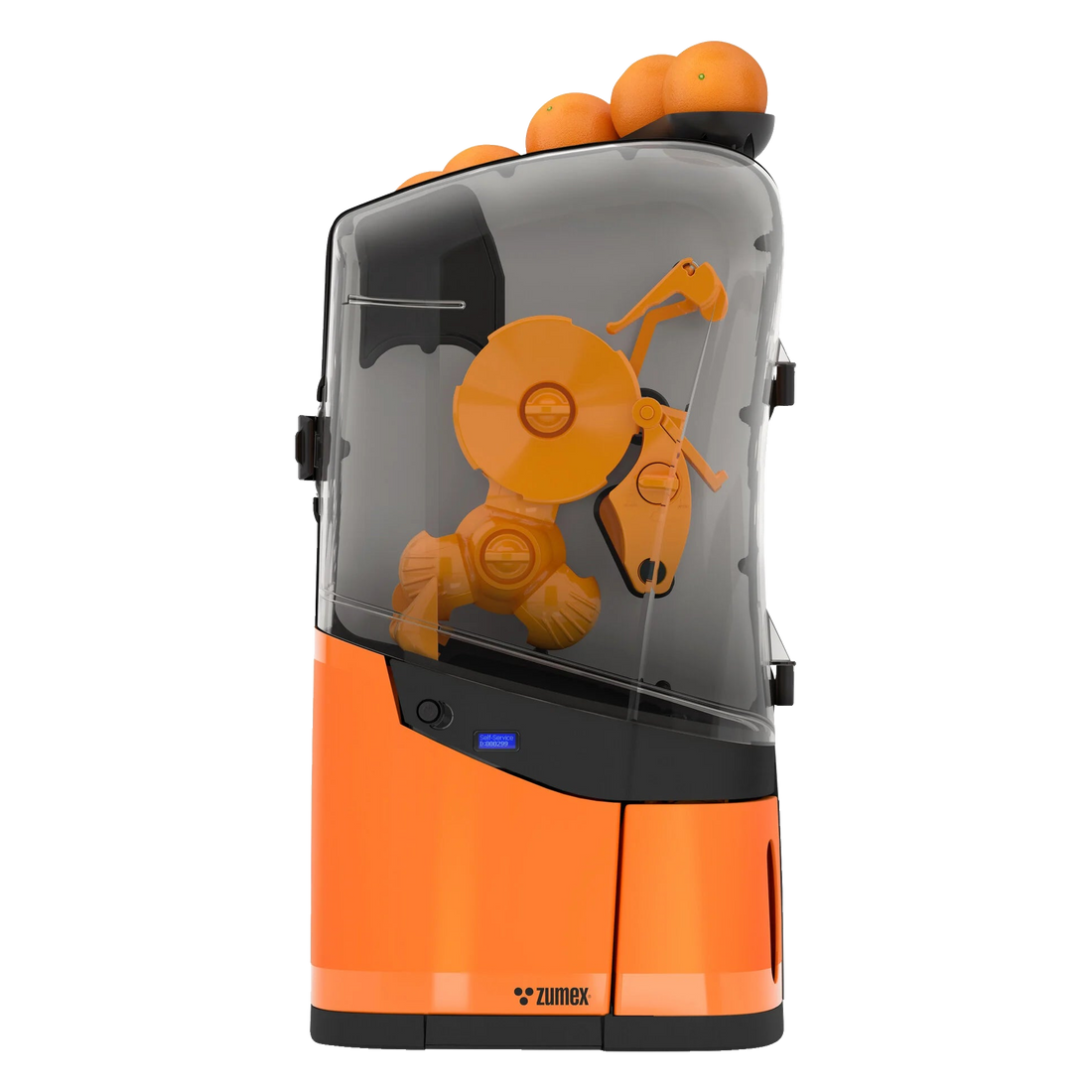

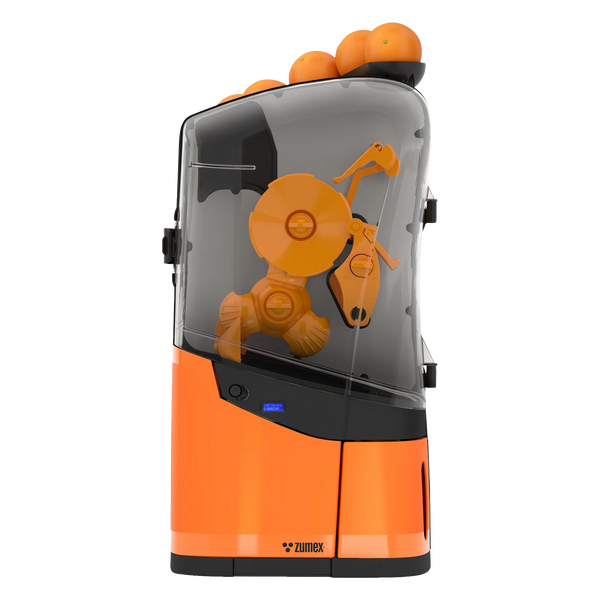

Zumex Minex Orange Juicer 04917

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)
$4,150
No sales taxPrice match

Color: Pample Orange (Most Popular)

In stock Shipping $89.90

Ships in 1–3 days

Excellent4.7 on
  • Visa
  • Master
  • American express
  • Apple pay
  • Paypal
  • Affirm

Key specs

13 fruits/minFruits per minute
Centrifugal Continuous FeedJuicing system
CommercialUse case
110-127V, 208-240VVoltage class
See all specs ↓

About the Zumex Minex Orange Juicer 04917

Zumex Minex Compact Commercial Orange Juicer for Smaller Counters

The Minex is an automatic citrus juicer for oranges, with an automatic feed that loads 6 to 7 fruits at a time. Zumex rates it at 13 oranges per minute, which works out to five to six servings of orange juice depending on fruit size, and it accepts oranges from 65 to 78 mm (2.6 to 3.1 in) across.

At about 28 in tall, 15.1 in wide, and 14.5 in deep, it is sized to sit on a countertop.

Self-Service Tap or Built-In Jug

Service can run two ways. Customers can hold a glass under the tap, which is designed not to drip and has an optional lock, or staff can let the juicer fill its 750 ml (about 25 oz) jug and pour from there.

Hygiene, Cleaning, and the Peel Bucket

ASP, a silver-ion antibacterial technology from Zumex, is used in the juicing system to inhibit the growth of bacteria. The juicing parts disassemble easily and are dishwasher safe, and peels drop into a 4.5 L (about 1.2 gal) peel bucket that converts for continuous emptying.

Safety and Display

Three safety devices and a motor seizure sensor are built into the Minex automatic juicer. A digital display shows machine activity and a running count of the oranges squeezed.

FEATURES:

  • 13 oranges per minute from a fruit feeder that holds 6-7 oranges

  • Automatic push-button operation, plus an anti-drip tap with an optional lock

  • ASP silver-ion antibacterial technology, which Zumex lists as food hygiene certified

  • Rated by Zumex below 65 dB for sound pressure during operation

  • Net weight of 43 lb (19.5 kg), on a countertop footprint of about 15 by 14.5 in

  • Zumex makes the 04917 Minex in seven colors, which its Color Kit accessory makes interchangeable

You Might Also Like

  • Zumex juicers - Juicers at Crawford, from compact units to higher-output commercial juicer models.

  • Countertop juicers - Countertop citrus and multifruit juicers for cafes, bars, and hotels.

  • Orange juicers - Commercial orange juicers at Crawford, from compact units to self-service and self-cleaning models.

Specifications
Performance
Ideal forCafes , bakeries, juice bars, and hotels
Fruit typeOranges
Fruits per minute13 fruits/min
Production rate1 juice/15 seconds
Fruit diameter2.6" - 3.1"
Feeder capacity6-7 oranges
Juicing systemCentrifugal Continuous Feed
Pulp and seed removalSelf-contained pulp extraction setup
Waste removalIntegrated convertible juice container for continuous removal on countertop
Sound levelVery quiet (less than 65dB)
Features
Antibacterial technologyASP® Food hygiene certified. Silver ion-based antibacterial technology inhibits the growth of bacteria, ensuring long-lasting, extra-efficient protection.
SafetyTriple safety detector and motor locking detection mechanism
Moisture protectionIPX0
Physical Measurements
Width15.1 in
Depth14.5 in
Height28.0 in
Weight43.0 lb
Power
Voltage100-115V/220-240V
Frequency50–60 Hz
Wattage44 W
Energy consumption0.2A/0.45A
Model & Series
SeriesMinex
Model reference no.04917
Warranty2-year | 3-year Extension with Registration through Zumex

Manuals & downloads7
Spec SheetZumex Minex Orange Juicer 04917ManualZumex Minex Orange Juicer 04917Cleaning GuideZumex Minex Orange Juicer 04917Cleaning GuideAll Zumex modelsSpare PartsZumex Minex Orange Juicer 04917WarrantyAll Zumex modelsCatalogAll Zumex models

Questions about the Zumex Minex Orange Juicer 049177
How many juices can the Zumex Minex make per minute?

The Zumex Minex squeezes 13 oranges a minute, which Zumex says works out to five to six servings depending on fruit size. Zumex classes it for moderate juice demand, and higher-output models sit in the orange juicers collection.

Can customers use the Zumex Minex juicer as self-service?

Yes, the Zumex Minex juicer has a self-service tap that fills the glass directly and is designed not to drip. When staff serve from behind the counter instead, the juicer can switch to filling its built-in jug.

What size oranges fit the Minex juicer?

The Minex juicer takes oranges from 65 to 78 mm (2.6 to 3.1 in) in diameter. Fruit within that range loads into the automatic feeder 6 to 7 at a time.

How do you clean the Zumex Minex?

Cleaning the Zumex Minex centers on its juicing system, which disassembles easily and is dishwasher safe. Zumex also publishes cleaning instructions for this model, and the waste bin can be set up for continuous emptying.

Does the Zumex Minex come with a warranty?

Yes, the Zumex Minex includes the manufacturer warranty, and Crawford Espresso is an authorized Zumex dealer. For coverage details or help comparing models, you can reach a Crawford Espresso advisor by phone or text.

What safety and usage precautions should I know before operating the machine?
  • Always plug the machine into a compatible power source matching the specs on its identification label.
  • Never attempt to use or clean the machine without safety features engaged, and never operate it from the side or backside—always load from the front.
  • Ensure the front door is fully closed—the machine won't start otherwise.
  • Avoid inserting hands into the juicing zone or near moving cutters—handle components carefully to avoid cuts.
  • The appliance is intended for commercial use (e.g., kitchens, cafés); it's not designed for continuous mass production.
  • Unplug and fully disconnect the power before cleaning, service, or part replacement to ensure safety.
What warranty and support do Zumex machines include?

Zumex backs its machines with a comprehensive warranty and global support network:

  • Standard Warranty: Typically 2 years (varies by region). Covers manufacturing defects and ensures replacement or repair of faulty parts.
  • Extended Coverage: Optional service plans are available in many markets, extending protection beyond the initial period.
  • Service & Parts Availability: Zumex provides worldwide access to spare parts, service kits, and technical support through authorized distributors.
  • Training & Setup: Many distributors offer installation, staff training, and usage guidance to help businesses get started quickly.
  • Customer Support: Zumex maintains dedicated support teams for troubleshooting, maintenance advice, and ordering parts, ensuring machines can stay in operation with minimal downtime.

In short: Zumex machines are supported by a global service infrastructure, giving operators peace of mind for years of heavy commercial use.
