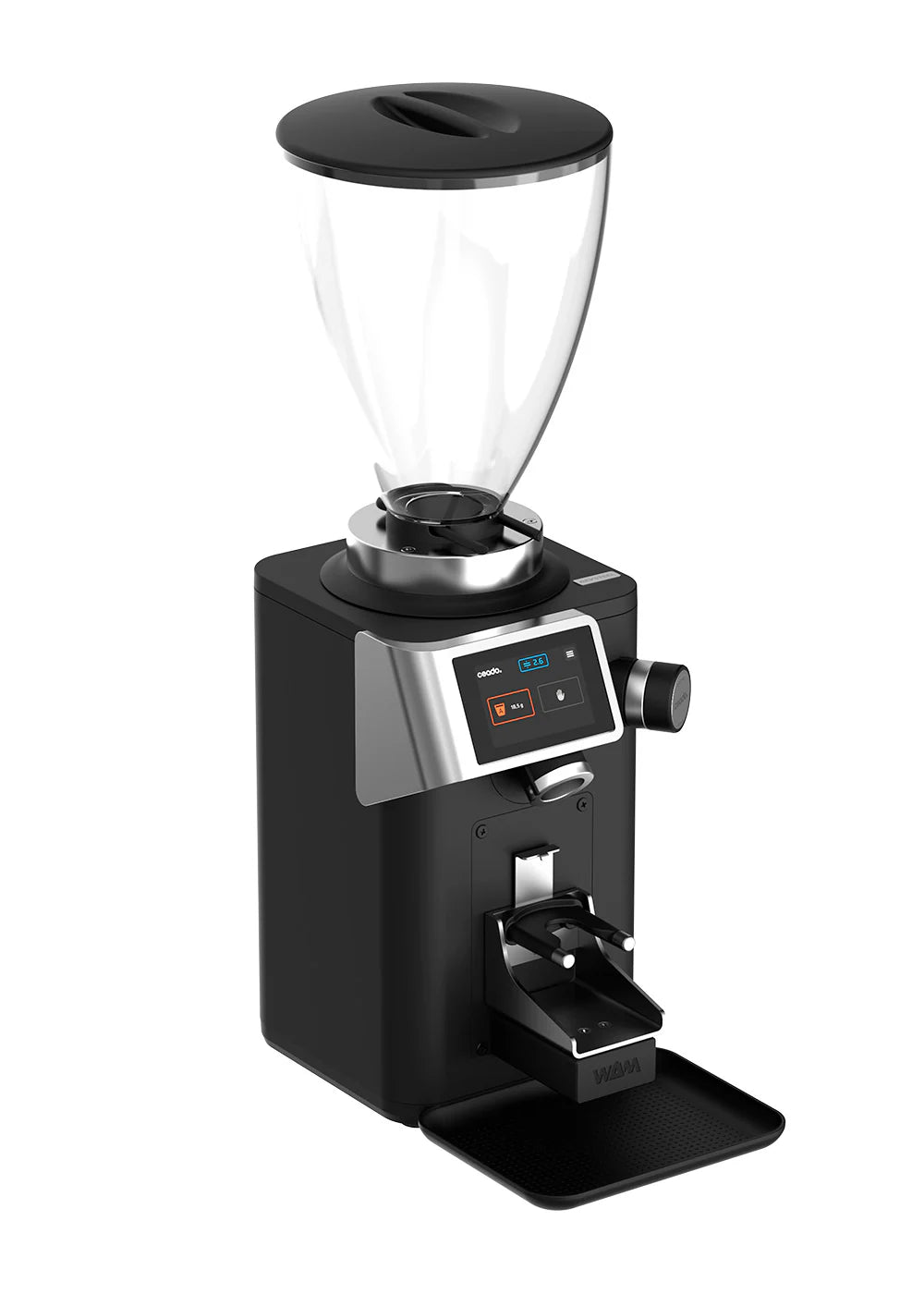

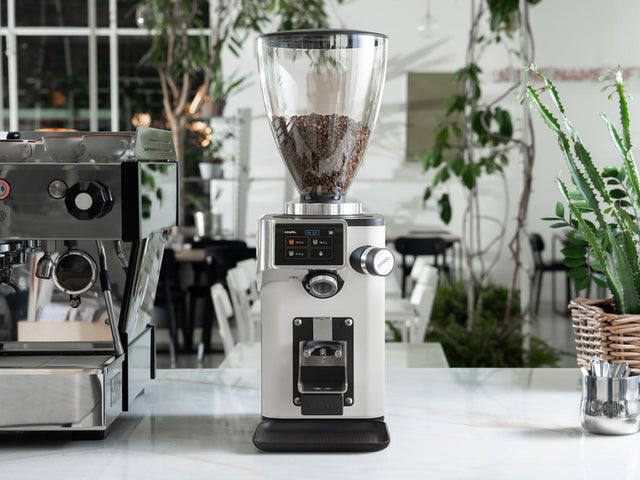

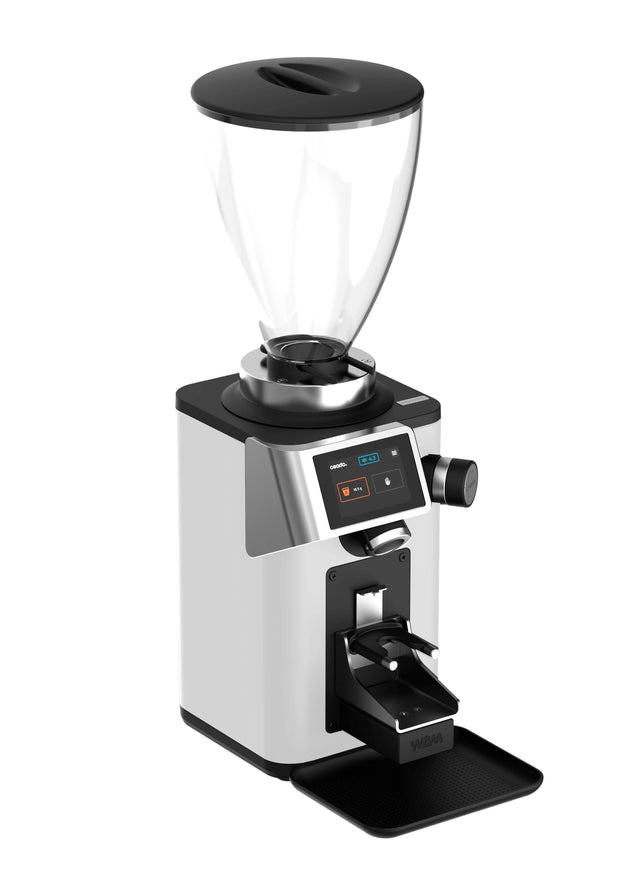

Ceado REV STEEL WAM Grind-by-Weight Espresso Grinder Black
Authorized dealer

Ceado REV STEEL WAM Espresso Grinder

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)
$2,539
No sales taxPrice match

Color: Black

In stock Free shipping

Excellent4.7 on
  • Visa
  • Master
  • American express
  • Apple pay
  • Paypal
  • Affirm

Key specs

83 mm flat burrsBurrs · Flat Steel
Weighs every doseDosing · Grind-by-Weight
4 s per double shotGrind speed · 5 g/s
About 88 doubles per fillHopper · 3.5 lb (1,600 g)
23.3 in tallSize · 7.9 in × 10.6 in footprint · 31.7 lb
Runs on a standard US outletPower · 500W
See all specs ↓

About the Ceado REV STEEL WAM Espresso Grinder

What Sets the Rev Steel WAM Apart on a Working Bar

The Ceado Rev Steel WAM tares your portafilter, grinds, and stops at the target weight to 0.1 g, with three programmable doses plus a manual mode. On a bar that changes baristas through the day, weighed dosing keeps the recipe honest, because a timer drifts as the hopper level and the beans change and a scale does not. The WAM module can be triggered by resting the portafilter on the fork or bypassed for touchscreen grinding.

Ceado's ALIGN system tracks burr position digitally and shows the setting on screen, so a barista can pin a reference point and return to it after a cleaning or a burr swap. The bottom burr is the one that moves, which means removing the top burr does not lose your setting.

The grinds chute comes off with a single screw to expose the anti-static declumper, the rear fan filter pops out for rinsing, and the screen prompts you when either needs attention. For a two-grinder cafe or a full bar refit, Crawford's contact page is the fastest route to a spec conversation.

FEATURES:

  • 83mm flat steel burrs grind at 5 grams per second at espresso fineness with reduced noise

  • Grind-by-weight dosing to 0.1 g precision, with three programmable doses and manual override

  • ALIGN digital burr positioning with stepless adjustment and an on-screen numeric readout

  • 1,600 g bean hopper and a 1,700 rpm burr speed sized for steady cafe service

  • Burr life rated at 900 kg, with the grinder tracking wear and keeping a service history

  • Milled aluminum grind chamber works as a heat sink, backed by a three-profile cooling fan

  • NSF certified, 7.9 by 10.6 by 23.3 inches, 31.7 lb net, on 110 to 120V at 500 W

You Might Also Like

  • Ceado grinders - The complete Ceado range at Crawford, including the Rev Steel, Rev Titan, and Rev Zero in WAM and portafilter-activated versions.

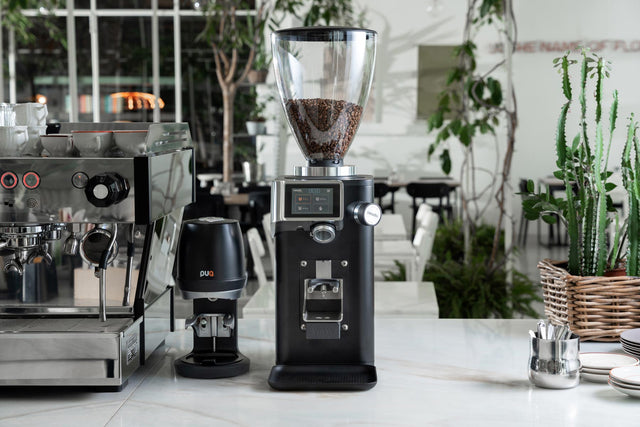

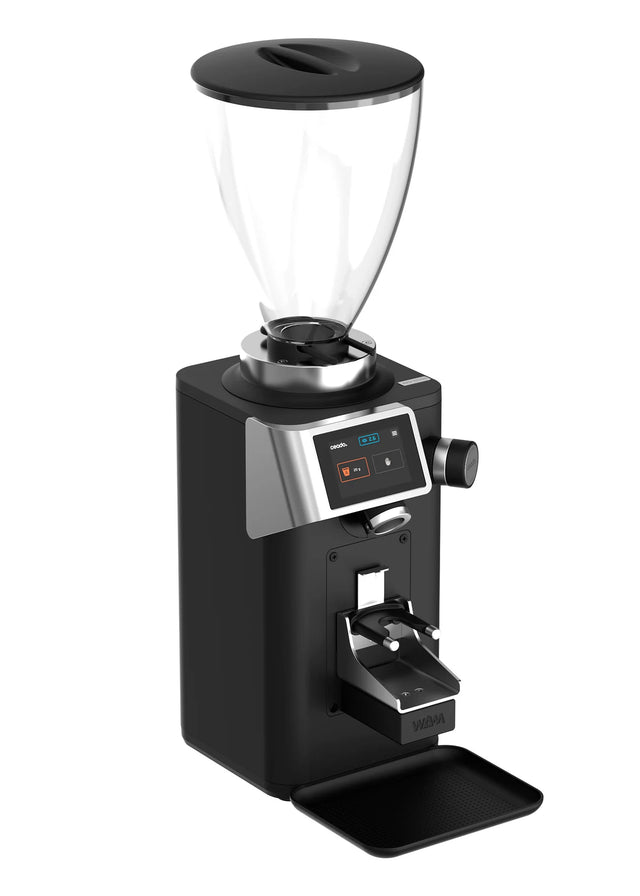

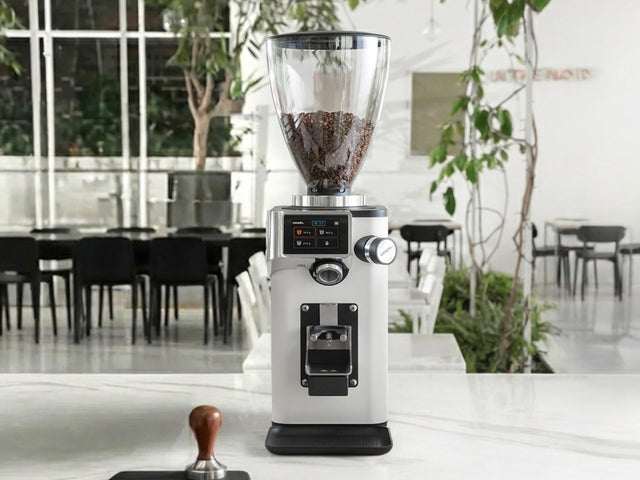

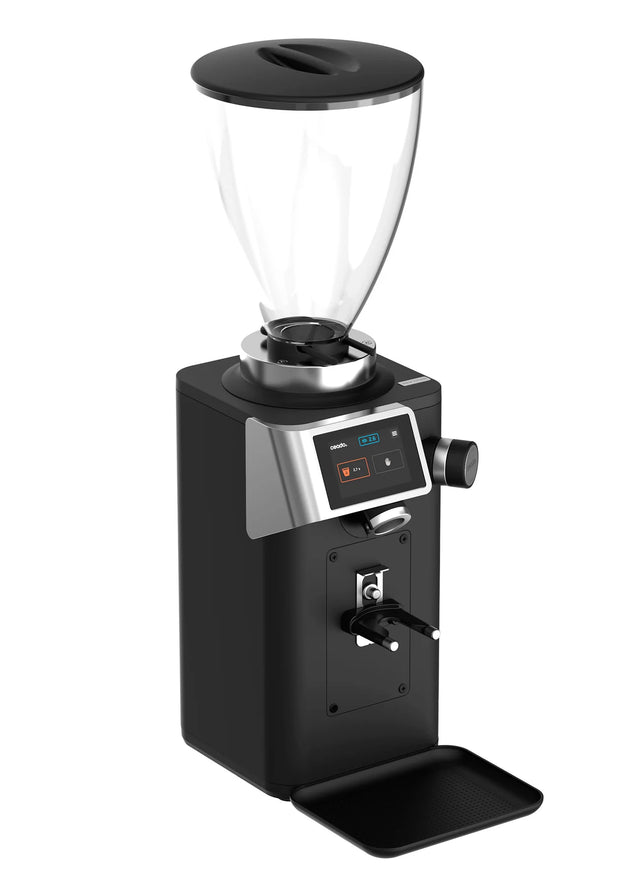

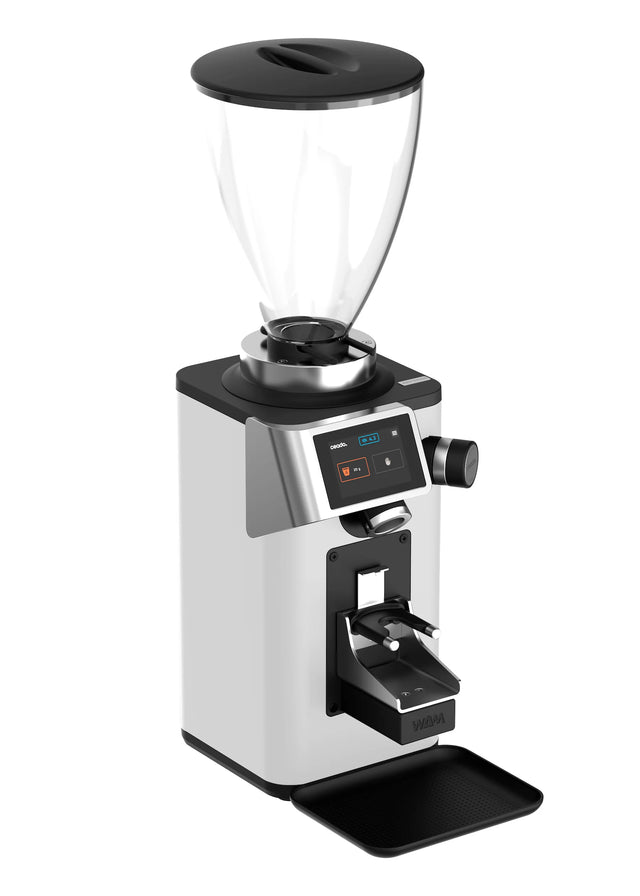

  • Ceado Rev Titan WAM Grind-by-Weight Espresso Grinder - The higher-output Rev with titanium-coated burrs rated to 2,500 kg and a 6 gram per second grind speed.

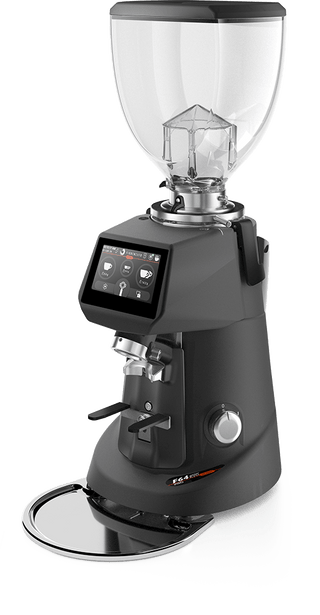

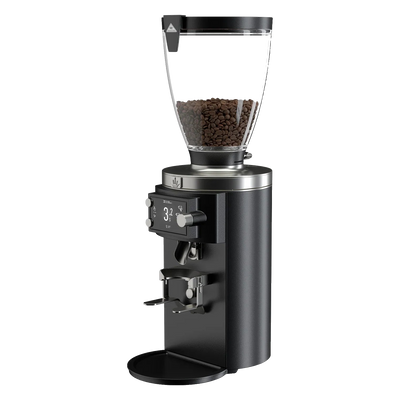

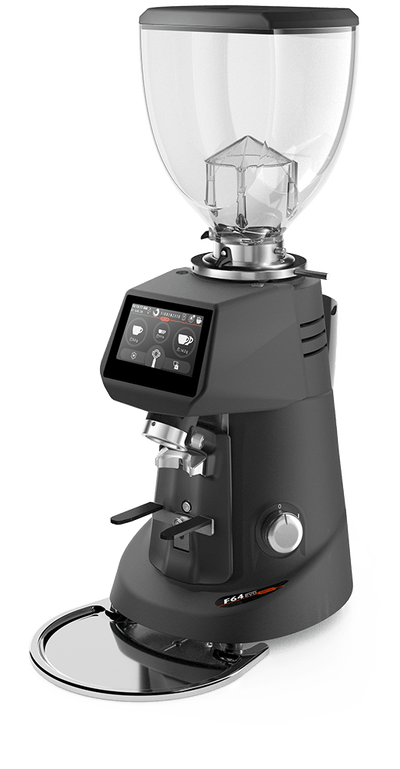

  • Grind-by-weight grinders - Every weighed-dose grinder in the catalog across Ceado, Mahlkonig, and Fiorenzato, for bars standardizing on dose accuracy.

Specifications
Performance
Burr diameter83 mm
Burr typeFlat
Burr materialFlat Steel
Burr speed1700 rpm
Burr grind life900 kg
Grinding capacity5 g/s
Hopper capacity3.5 lb (1,600 g)
Dosing methodGrind-by-Weight
Control and displayTouchscreen
Programmable recipesSingle, Double, Triple Shot
DispensingDoserless
Physical Measurements
Width7.9 in
Depth10.6 in
Height23.3 in
Net weight31.7 lb
Shipping weight35.7 lb
Power
Voltage110-120 V
Frequency50-60 Hz
Wattage500W
Certifications
NSF certifiedYes
Model & Series
SeriesREV
Warranty12-month parts warranty
More specs
Burr typeFlat Steel
Grinder FeaturesWeight Based Grinding, Display Customization, Easy to Access Burrs, Digital Burr Positioning, Internal Fan, Noise Reduction
Grinder Setting Controls / Adjustment TypeStepless
Controls and Additional FeaturesProgrammable Dosing, Worn Burrs Alert, Fan Filter Alert, Display Management, Screen Brightness, Grinding Light
App ConnectivityNo

Manuals & downloads3
ManualCeado REV STEEL WAM Espresso GrinderSpare PartsCeado REV STEEL WAM Espresso GrinderBrochureCeado REV STEEL WAM Espresso Grinder

Questions about the Ceado REV STEEL WAM Espresso Grinder8
Who should consider the REV STEEL grinder?

It’s ideal for cafés and roasteries that require robust, steel burr grinding at a lower price point than the TITAN.

How does the grind quality compare to the REV TITAN?

The grind quality is excellent for commercial espresso, but burrs may wear faster compared to titanium.

Is it suitable for high-volume grinding?

Yes, it’s designed for continuous café use, but TITAN is more suited for extreme heavy duty.

Is there a noticeable flavor difference between steel and titanium burrs?

Some baristas report steel burrs give a brighter cup, while titanium provides a smoother profile and lasts longer.

Does it support stepless adjustment?

Yes, precise stepless adjustment for fine-tuning espresso.

What makes Ceado grinders different from other brands?

Ceado grinders are known for their Italian engineering, low retention designs, powerful motors, and advanced burr technology that ensures consistent grind quality for espresso professionals and enthusiasts.

How durable are Ceado grinders?

Ceado grinders are built with solid metal housings, long-lasting burrs, and powerful motors. With proper maintenance, they can last many years in commercial environments and even longer in home settings.

How noisy are Ceado grinders?

Ceado grinders are engineered to reduce vibration and noise. They are quieter than many comparable commercial grinders, though REV series models are more powerful and slightly louder.
