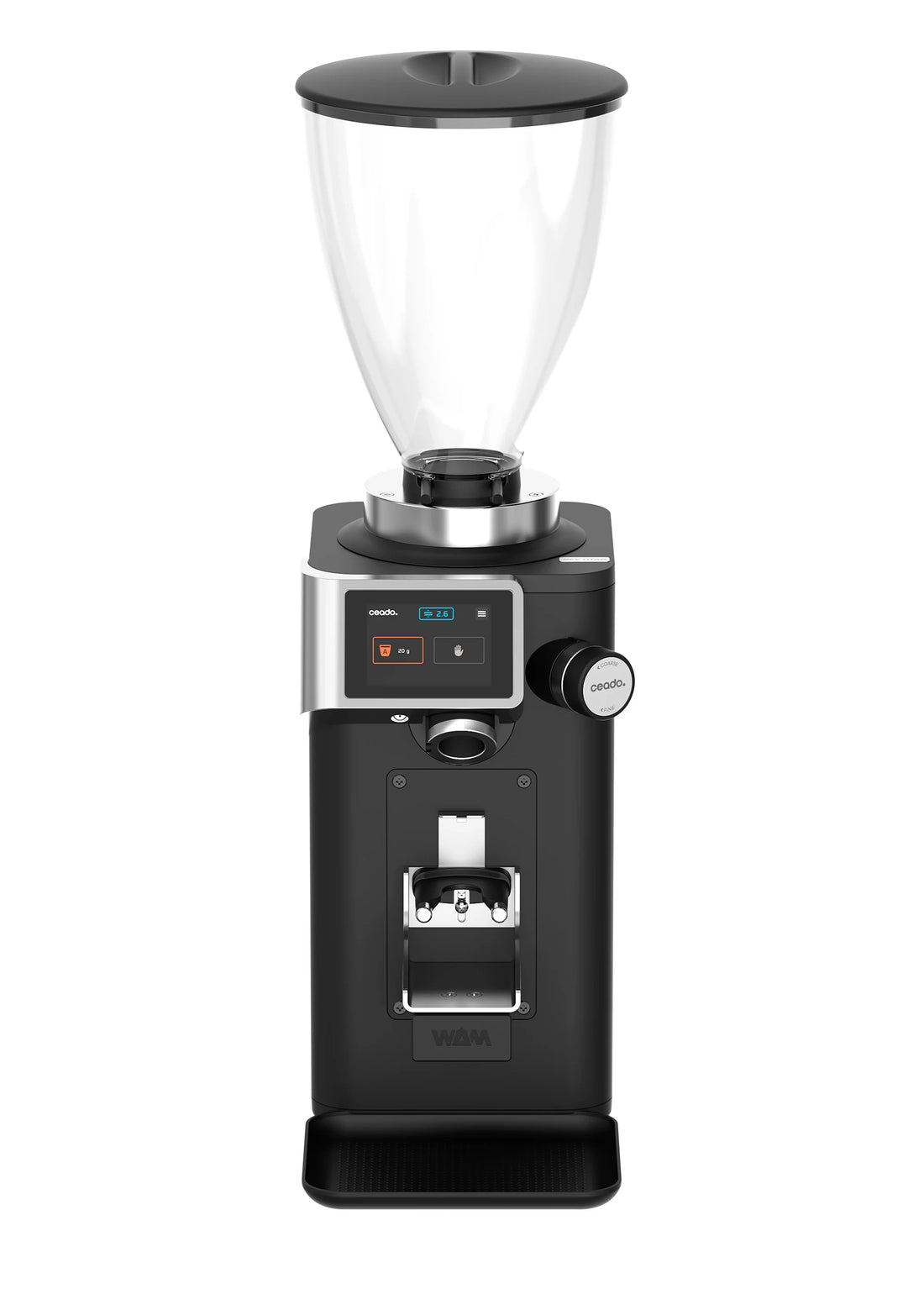

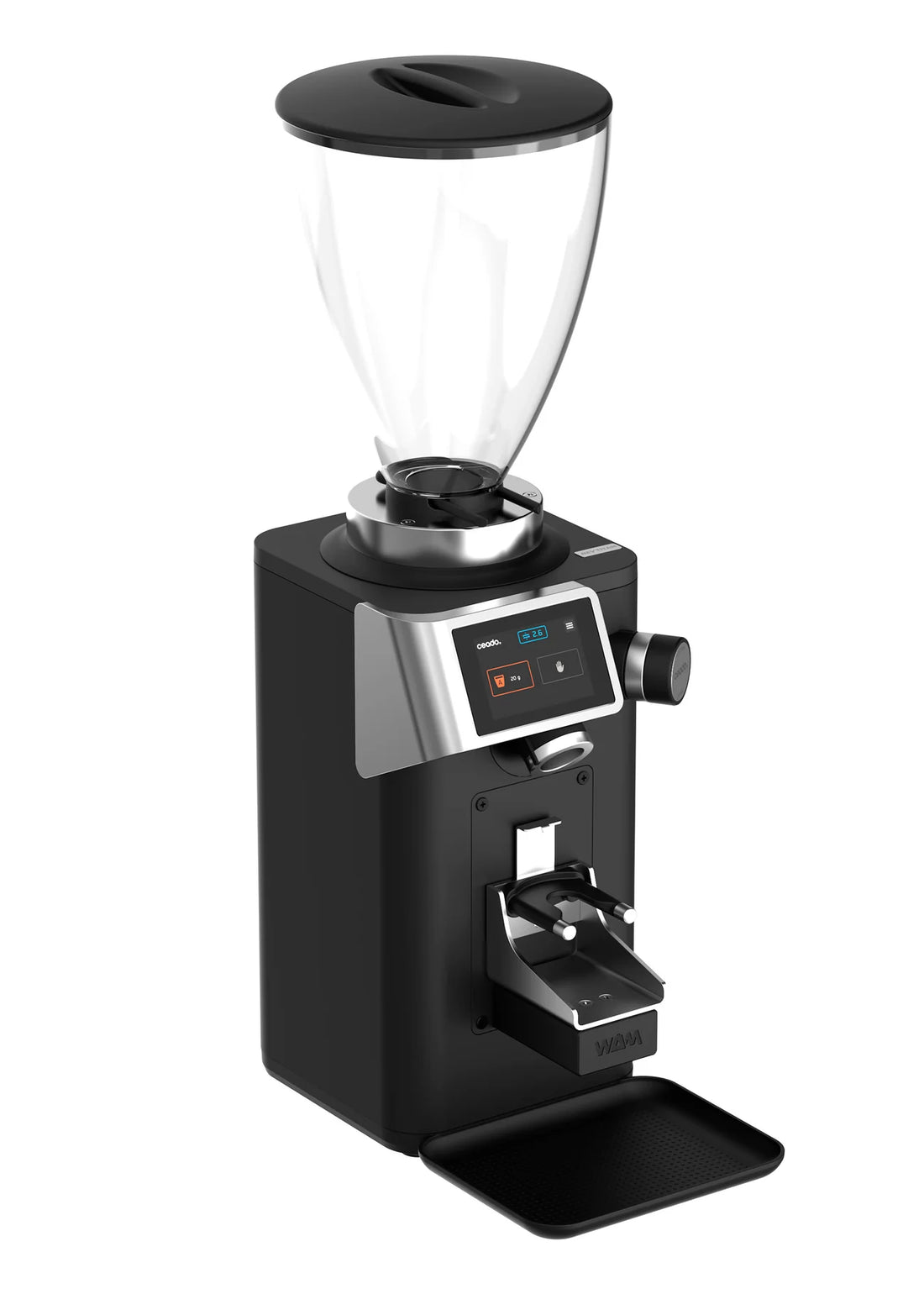

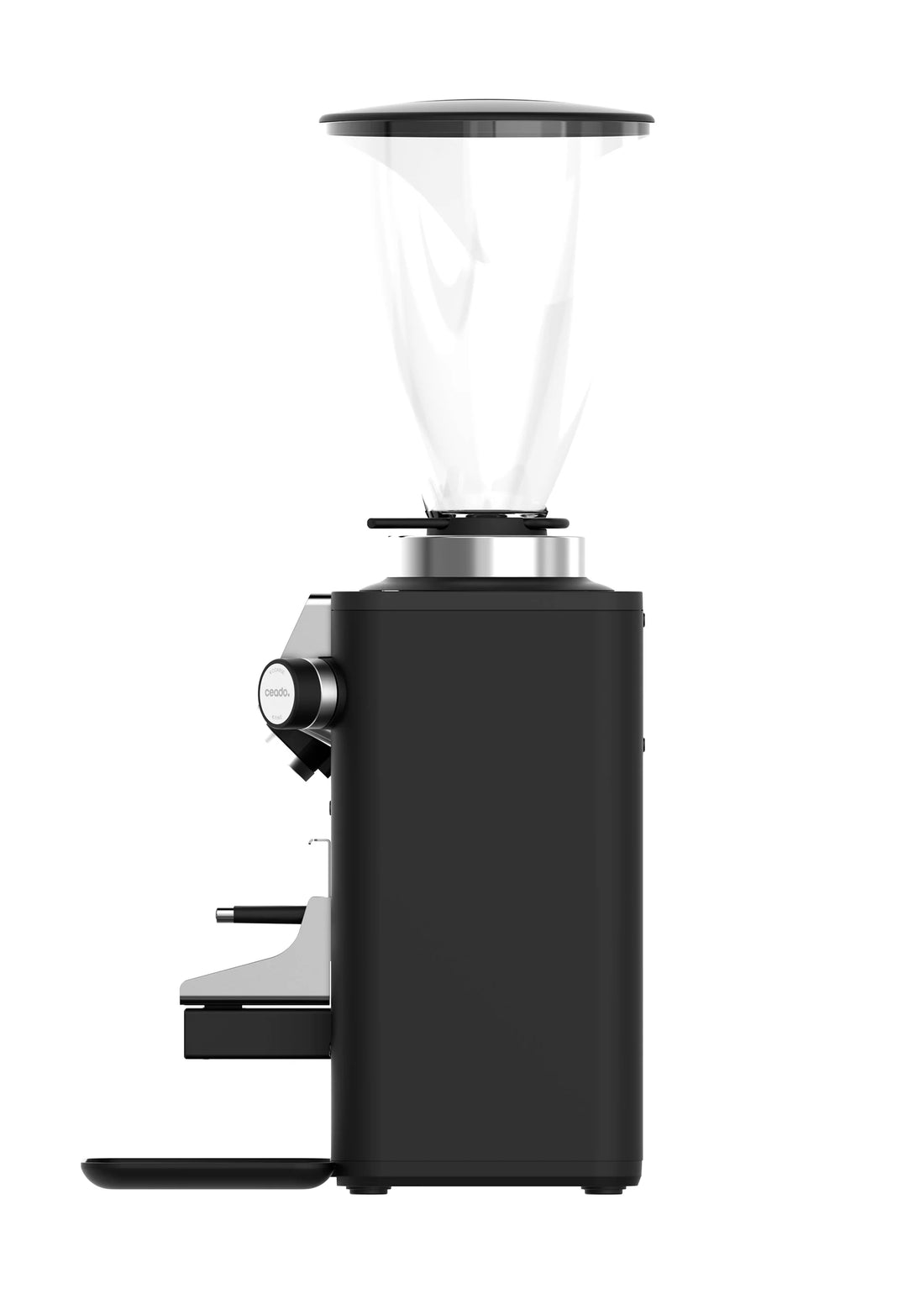

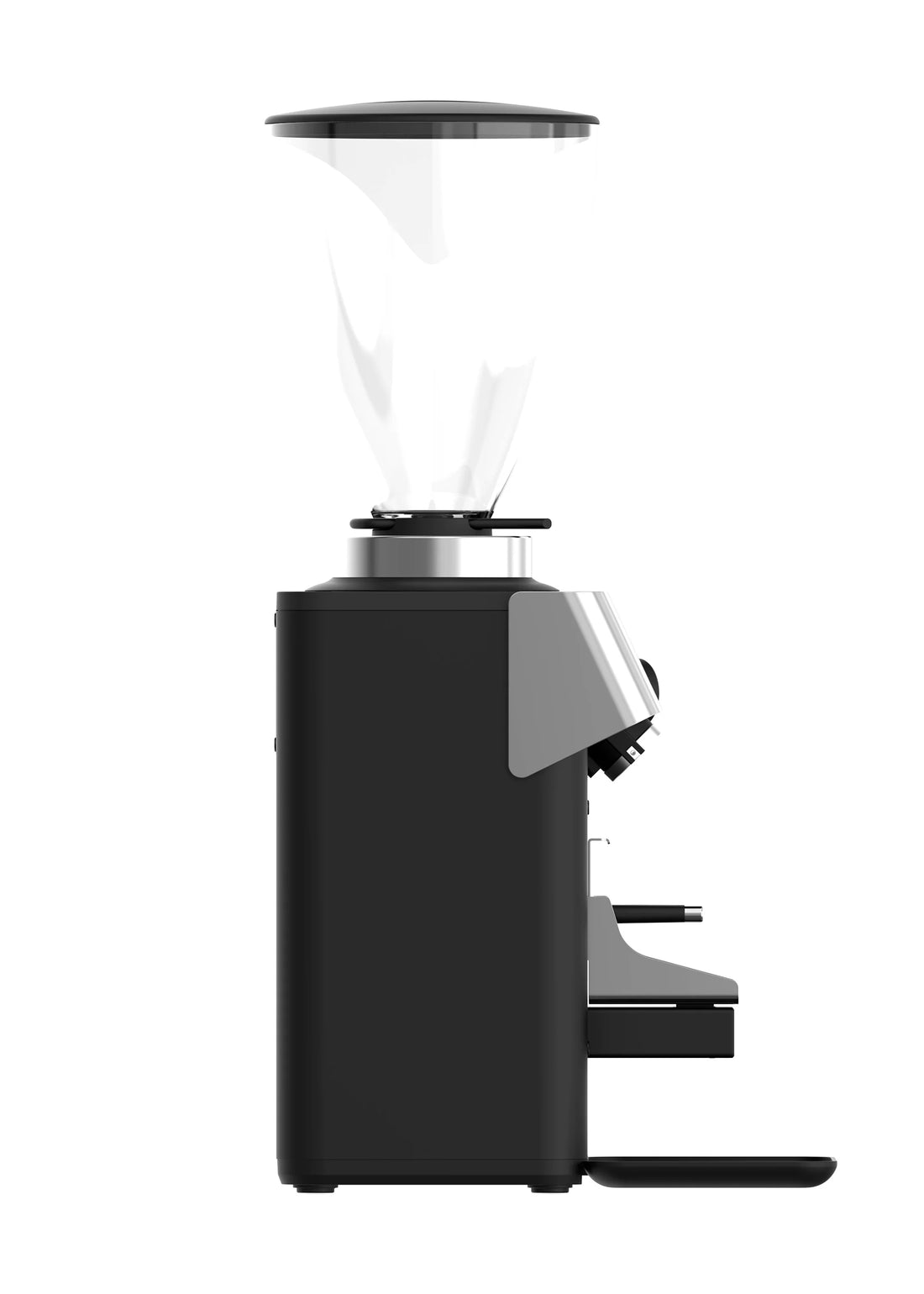

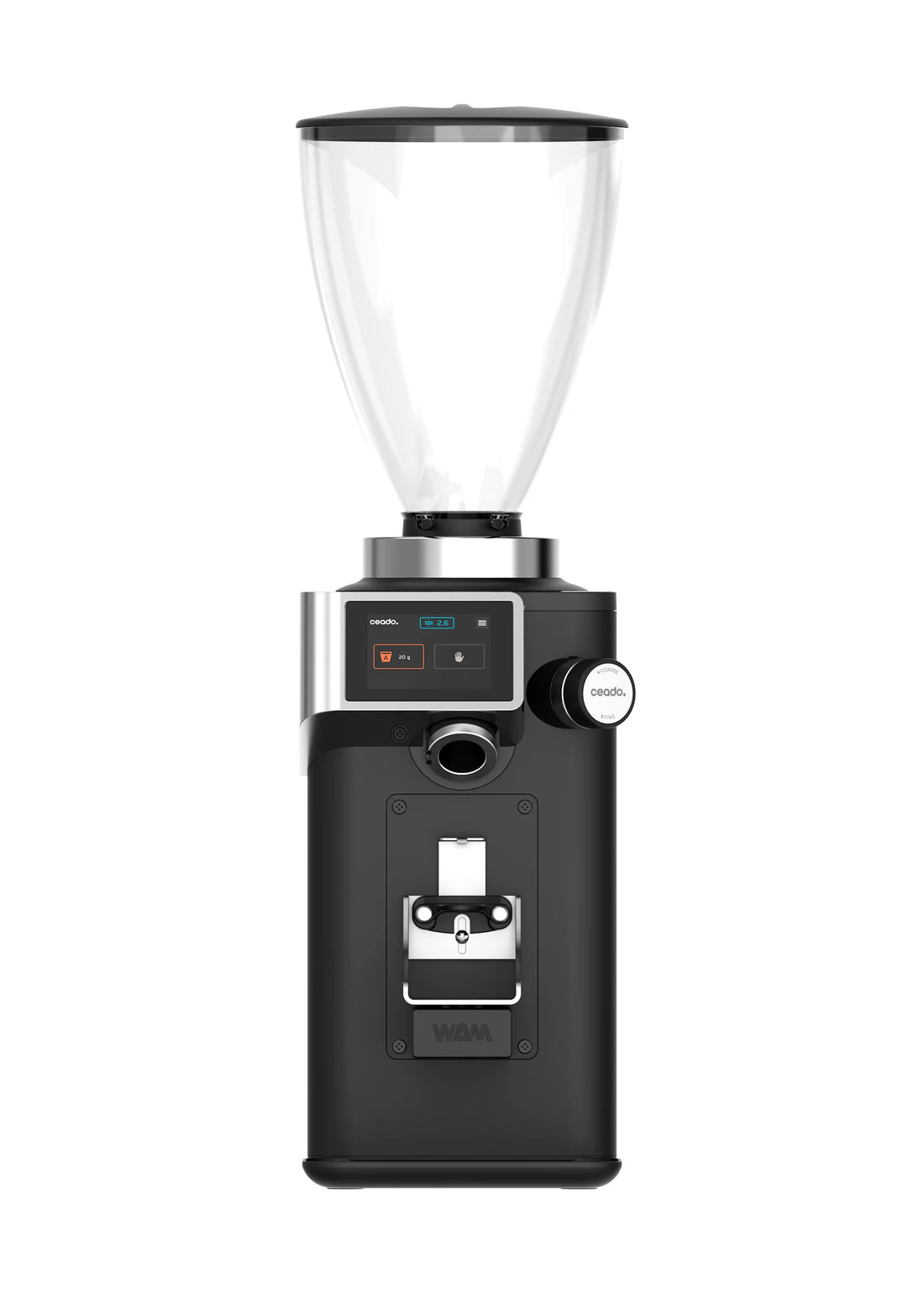

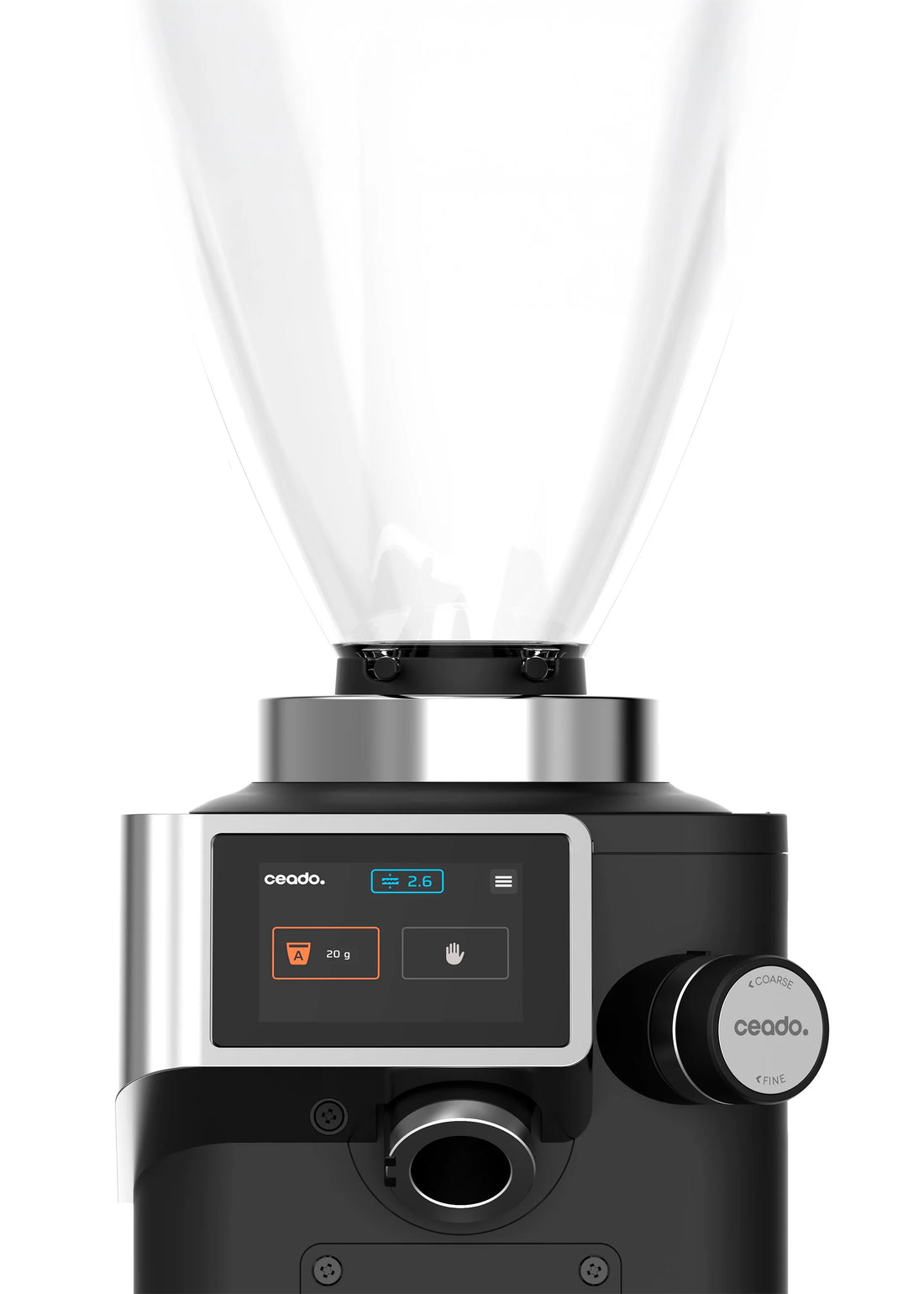

Ceado REV TITAN WAM Grind-by-Weight Espresso Grinder

Authorized dealer

Ceado REV TITAN WAM Espresso Grinder

Name: Ceado REV TITAN WAM Grind-by-Weight Espresso Grinder Black
Brand: Ceado
SKU: 50051151
Price: 3209.00 USD
Availability: InStock

$3,209

No sales taxPrice match

Color: Black

In stock Free shipping

Excellent

4.7 on

Key specs

83 mm flat burrsBurrs · Titanium Coated Steel

Weighs every doseDosing · Grind-by-Weight

3 s per double shotGrind speed · 6 g/s

About 88 doubles per fillHopper · 1600 g (3.5 lb)

24.8 in tallSize · 7.9 in × 10.6 in footprint · 37.5 lb

Runs on a standard US outletPower · 740 W

See all specs ↓

About the Ceado REV TITAN WAM Espresso Grinder

For higher volume or faster service, the Ceado REV Titan is equipped with titanium coated, hardened steel burrs and a more robust 6 A motor for an output of 6 g/s at espresso fineness. The ALIGN (Advanced Leveling Intelligent Grinding Nexus) system tracks burr position digitally, so your setting is always visible on‑screen and you can “pin” reference points to return to as needed.. Choose models with WAM (Weight Adjustment Module) for grind‑by‑weight dosing, or without WAM for traditional time‑based operation—both built on the same chassis with a modern asymmetrical design.

WAM vs. Non-WAM

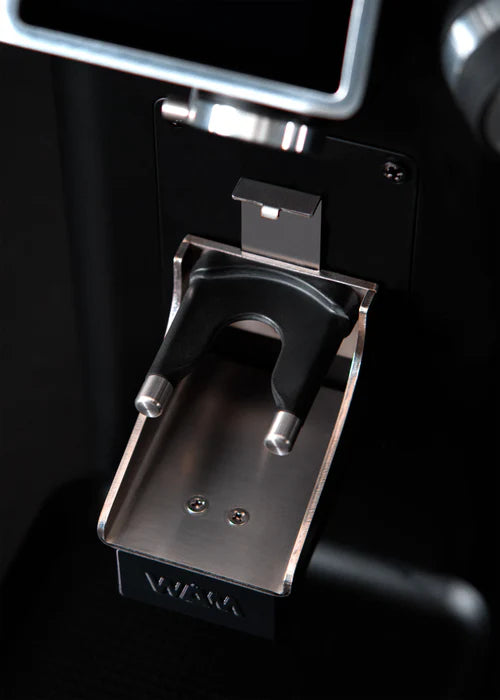

WAM (Weight Adjustment Module): Tares your portafilter and dispenses by weight with 0.1 g precision; three programmable doses (A/B/C) plus manual; two activation styles pre-selected start with automatic activation or PFA (portafilter activation) bypass with touch screen grinding.

Non‑WAM: Time‑based dosing with pre‑selected, two‑step start, PFA bypass, and click‑start modes; optional pulsing lets you top‑off a partial dose.

Key Features

Titanium‑Coated 83mm Burrs – Harder edges for longevity; grinder tracks burr life and keeps a service history. 2,500kg lifespan.
ALIGN Digital Positioning – Stepless adjustment with a live numeric readout; tap to view setting; pin current position for quick return; bottom‑burr moves so removing the top burr doesn’t lose your setting.
Fast & Quiet – 6 g/s at espresso fineness with lower noise than prior Ceado prosumer models.
Serviceable by Design – Grinds chute removes via a single screw for deep cleaning and exposes the anti‑static de‑clumper; rear fan vent cover and filter pops out for rinsing; on‑screen filter‑clean reminder.
Thermal Management – Milled aluminum grind chamber acts as a heat sink; fan has three duty profiles (1-home use, 2 default, 3-high‑volume) driven by an hourly grind‑count algorithm.
Work Area Light – Chute mounted light with adjustable brightness (25–100%) and color (white, blue, violet, amber).
UI & Controls – Sleep/standby, display brightness, language, date/time, QR user manual, firmware info & factory reset, manager lock permissions. Scale activation/calibration menu supports later WAM installation.

Specifications

Performance
Burr diameter	83 mm
Burr type	Flat
Burr material	Titanium Coated Steel
Burr speed	1700 rpm
Burr grind life	2500 kg
Grinding capacity	6 g/s
Hopper capacity	1600 g (3.5 lb)
Dosing method	Grind-by-Weight
Control and display	Touchscreen
Programmable recipes	Single, Double, Triple Shot
Dispensing	Doserless
Physical Measurements
Width	7.9 in
Depth	10.6 in
Height	24.8 in
Net weight	37.5 lb
Shipping weight	41.4 lb
Power
Voltage	220-240 V \| 110-120 V
Frequency	50-60 Hz
Wattage	740 W
Certifications
NSF certified	Yes
Model & Series
Series	REV
Warranty	12-month parts warranty
More specs
Burr type	Flat Steel
Grinder Features	Weight Based Grinding, Display Customization, Easy to Access Burrs, Digital Burr Positioning, Internal Fan, Noise Reduction
Grinder Setting Controls / Adjustment Type	Stepless
Controls and Additional Features	Programmable Dosing, Worn Burrs Alert, Fan Filter Alert, Display Management, Screen Brightness, Grinding Light
App Connectivity	No

Manuals & downloads3

ManualCeado REV TITAN WAM Espresso Grinder

Spare PartsCeado REV TITAN WAM Espresso Grinder

BrochureCeado REV TITAN WAM Espresso Grinder

Questions about the Ceado REV TITAN WAM Espresso Grinder7

Who is the REV TITAN best suited for?

Designed for high-volume coffee shops and roasteries that need industrial-grade grinding power and maximum output.

Does it handle single dosing?

While it’s designed for bulk grinding, it can handle single dosing with high accuracy, though smaller Ceado models may be more efficient for that purpose.

Is the REV TITAN suitable for filter or espresso?

It’s optimized for espresso but versatile enough for filter coffee when adjusted properly.

How easy is burr replacement on the REV TITAN?

The burr chamber is designed for quick, tool-assisted burr swaps, minimizing downtime in commercial settings.

What makes Ceado grinders different from other brands?

Ceado grinders are known for their Italian engineering, low retention designs, powerful motors, and advanced burr technology that ensures consistent grind quality for espresso professionals and enthusiasts.

How durable are Ceado grinders?

Ceado grinders are built with solid metal housings, long-lasting burrs, and powerful motors. With proper maintenance, they can last many years in commercial environments and even longer in home settings.

How noisy are Ceado grinders?

Ceado grinders are engineered to reduce vibration and noise. They are quieter than many comparable commercial grinders, though REV series models are more powerful and slightly louder.
