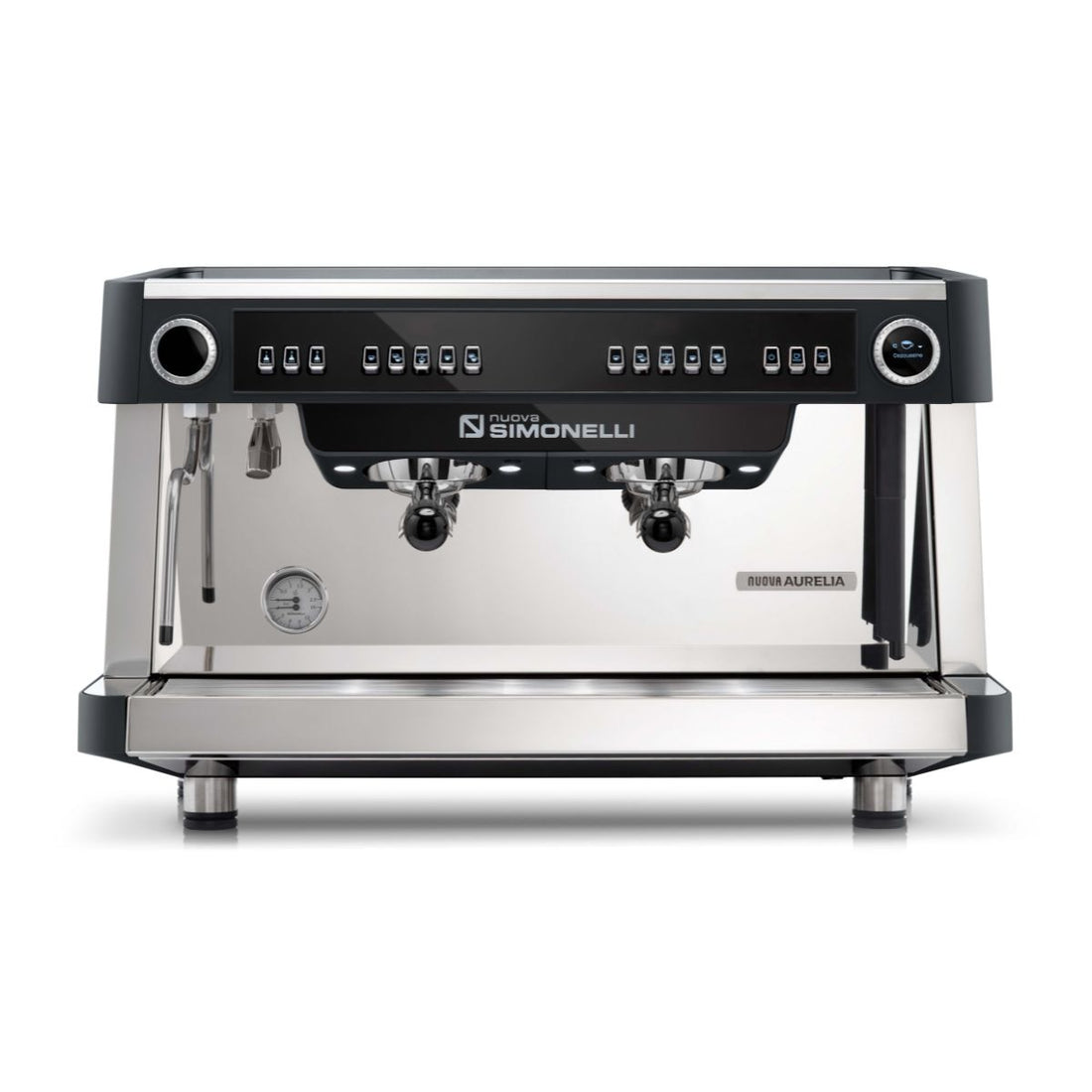

Nuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine front view

Full manufacturer warranty

Nuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine

Q: How big is the Nuova Aurelia?

2 Group: 32 in wide x 23 in deep x 21 in high, 10 L boiler.3 Group: 41 in wide x 23 in deep x 21 in high, 15 L boiler.Dimensions and boiler sizes per the US distributor spec table.

$18,900

No sales taxPrice match

Configuration: 2 Group

In stock Freight delivery $299

Ships in 1–3 business days

Curbside freight delivery. We'll call you to book a delivery window.

Excellent

4.7 on

Key specs

2 groupsGroup heads

Heat exchangerBoiler system

Needs a 30 A, 220 V circuitPower · 4700 W

Plumbed in: water line + drainWater

32.0 in wideSize · 23.0 in deep · 21.0 in tall

10 L steam boilerSteam

See all specs ↓

About the Nuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine

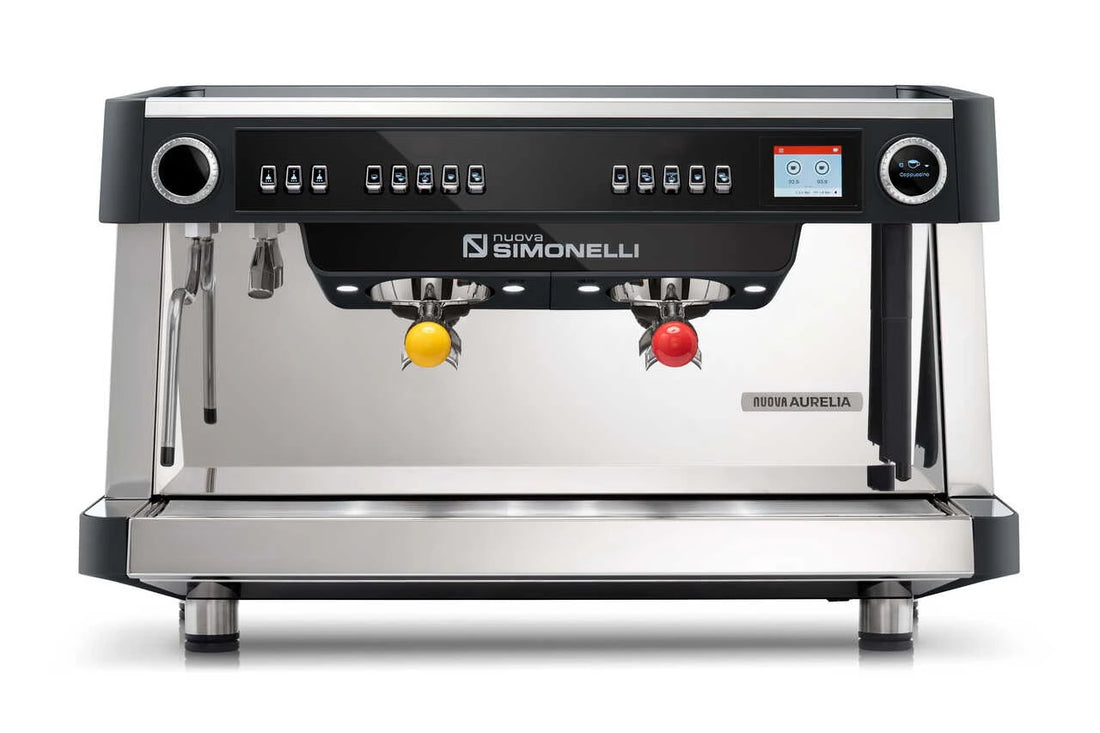

The Nuova Simonelli Nuova Aurelia 2 Group Volumetric XT is a commercial espresso machine for high-volume cafes. It is supplied with C-Automation and E-Milk (right side) and uses a touch screen for control across 2 groups.

Key Features

Volumetric XT version with touch screen and auto-purge
C-Automation for portafilter recognition and Wi-Fi connectivity
E-Milk automatic milk frothing on the right side
Steam boiler with 10 L capacity per the US distributor spec table
Raised group heads fit tall cups and travel mugs
Soft infusion system for gentle pre-wetting of the puck
Automated cleaning program

Specifications

Dimensions: 32 in wide x 23 in deep x 21 in high
Power: 220 V, 4700 W, 30 A (NEMA L6-30)

Warranty

Backed by a 2-year manufacturer warranty, per the US distributor. The machine needs a water connection and drain. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

Specifications

Brewing
Group heads	2
Boiler system	Heat Exchanger
Steam boiler capacity	10 L
Group head	Raised group heads with Soft Infusion System
Temperature control	Group temperature adjustable from the display (per manufacturer site)
Water source	Plumbed
Dosing and flow control	Programmable volumetric doses for each group, set on the touch screen
Features
Display	Touch screen display (XT)
Cleaning	Automated cleaning
Autosteam	E-Milk automatic milk frothing (right side), with steam wand temperature probe
Connectivity	C-Automation (portafilter recognition, Wi-Fi)
Physical Measurements
Width	32.0 in
Depth	23.0 in
Height	21.0 in
Power
Voltage	220 V
Wattage	4700 W
Amperage	30 A
Phase	1
Certifications
Certifications	NSF/ANSI Std. 4
Model & Series
Series	Nuova Aurelia
Warranty	2 years manufacturer warranty

Manuals & downloads6

Spec SheetNuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine

ManualNuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine

Spare PartsNuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine

WarrantyAll Nuova Simonelli models

BrochureNuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine

Questions about the Nuova Simonelli Nuova Aurelia 2 Group Volumetric XT Espresso Machine5

What electrical supply does the Nuova Aurelia need?

2 Group: 220 V (208-240 V range), 4700 W, 30 A, NEMA L6-30 twist-lock receptacle.
3 Group: 220 V (208-240 V range), 5200 W, 30 A, NEMA L6-30 twist-lock receptacle.

The outlet needs to be within 3 ft of the machine, per the US distributor spec sheet. Have a licensed electrician confirm your outlet before installation.

Does the Nuova Aurelia need a water line and drain?

Yes, it is a plumbed machine. A dedicated 3/8 in cold water line with a shut-off valve and compression fitting is required (line pressure 2-4 bar, minimum flow 1 GPM, water hardness 3 gpg or 50 ppm, filtration under 1.0 micron, TDS 50-250 ppm, chlorine under 0.50 ppm, pH 6.5-8.5). An open gravity drain of at least 1.25 in inner diameter is needed within 4 ft of the machine. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

How big is the Nuova Aurelia?

2 Group: 32 in wide x 23 in deep x 21 in high, 10 L boiler.
3 Group: 41 in wide x 23 in deep x 21 in high, 15 L boiler.

Dimensions and boiler sizes per the US distributor spec table.

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
