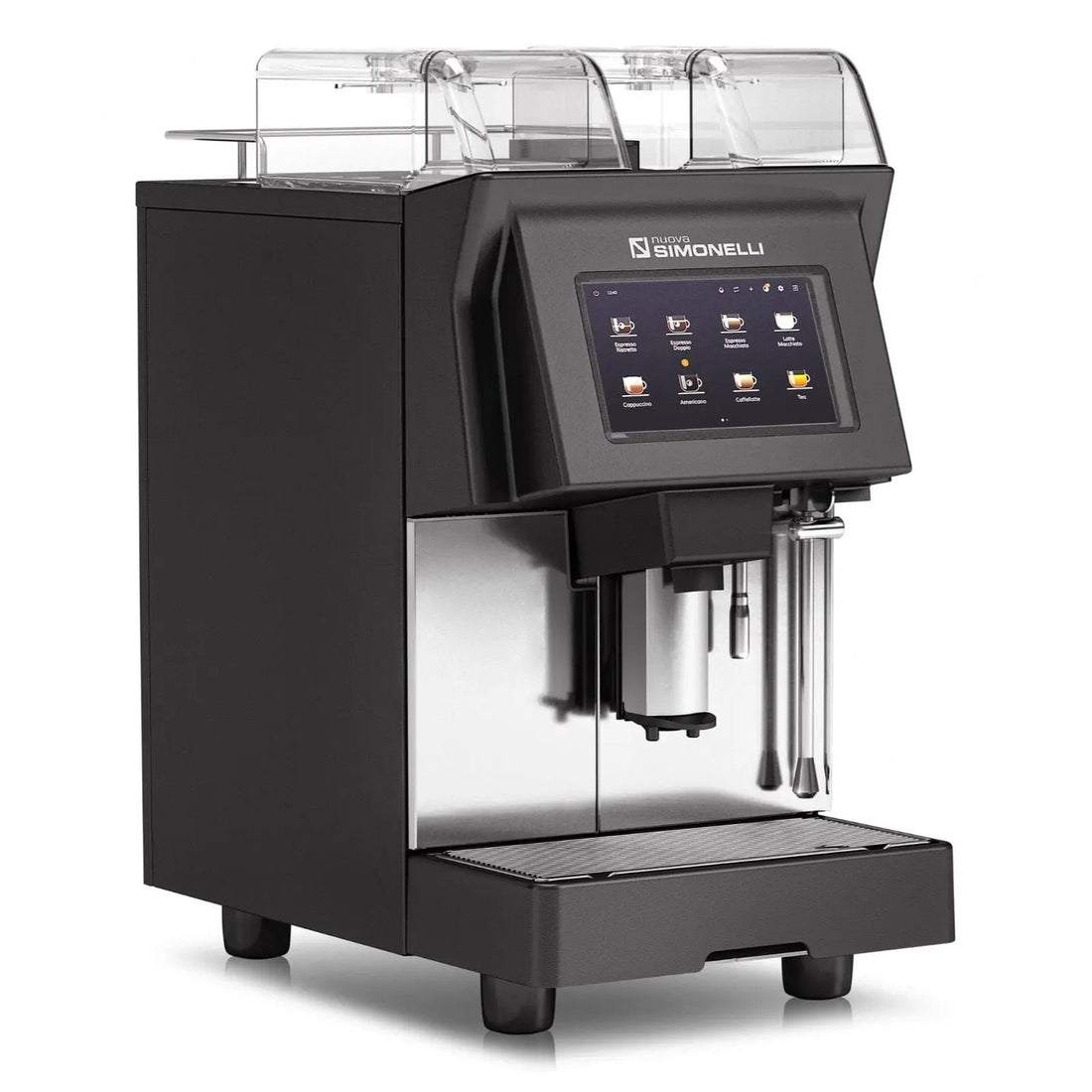

Nuova Simonelli Prontobar Touch Super-Automatic Espresso Machine Black angle view

Full manufacturer warranty

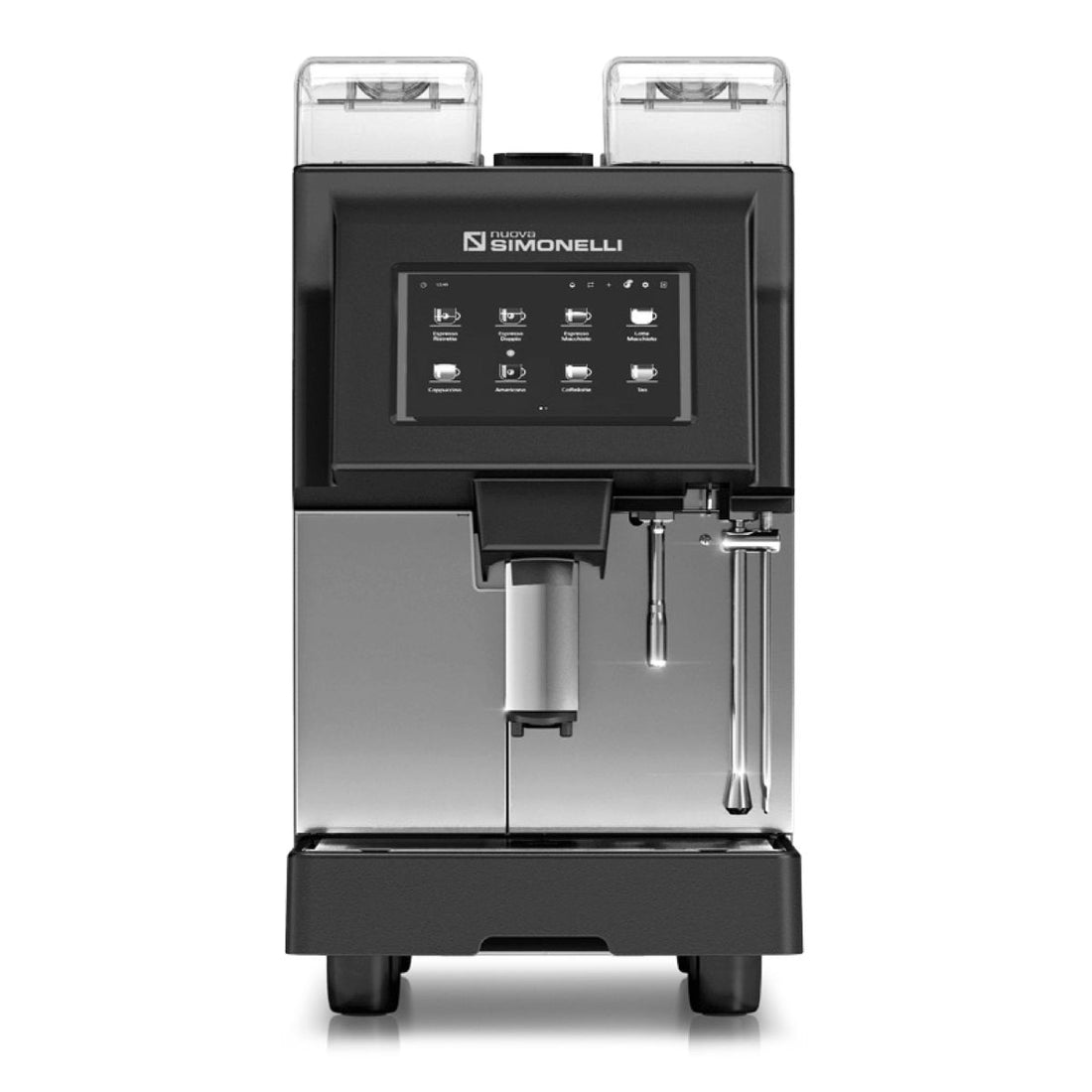

Nuova Simonelli Prontobar Touch Super-Automatic Espresso Machine

$16,250

No sales taxPrice match

In stock Freight delivery $299

Ships in 1–3 business days

Curbside freight delivery. We'll call you to book a delivery window.

Excellent

4.7 on

Key specs

1 groupGroup heads

Needs a 13 A, 220 V circuitPower · 2800 W

Plumbed in: water line + drainWater

13.0 in wideSize · 21.0 in deep · 25.0 in tall · 88.0 lb

Programmable brew, steam and group temperature from the touch displayTemperature control

See all specs ↓

About the Nuova Simonelli Prontobar Touch Super-Automatic Espresso Machine

The Nuova Simonelli Prontobar Touch is a super-automatic espresso machine for restaurants, coffee shops and medium-size offices. Drinks are made at the press of a button on a large color touch screen, so any team member can serve consistent beverages.

Key Features

Large color touch screen to select and program drinks, including dose, brew temperature, steam temperature and group temperature
Adjustable tamping force set from the display
Metal thermo-compensated delivery group for stable temperature
Grinders made with special steels, with a quieter pump designed to improve crema texture
Automatic washing program, plus automatic on/off timing and a standby function to save energy

Specifications

Counter space: 13 in wide x 21 in deep x 25 in high
Power: 220 V, 2800 W, 13 A, NEMA 6-20 receptacle
Water: 3/8 in cold water line with shut-off valve; open gravity drain

Warranty

Backed by a 2-year manufacturer warranty, per the US distributor. The machine needs a water connection and drain. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

Specifications

Brewing
Group heads	1
Group head	Metal thermo-compensated delivery group
Temperature control	Programmable brew, steam and group temperature from the touch display
Pump	Low-noise pump
Water source	Plumbed
Dosing and flow control	Programmable dose, brewing temperature and tamping force
Features
Display	Large color touch screen
Cleaning	Automatic washing program
Physical Measurements
Width	13.0 in
Depth	21.0 in
Height	25.0 in
Net weight	88.0 lb
Power
Voltage	220 V
Wattage	2800 W
Amperage	13 A
Phase	1
Certifications
Certifications	UL and NSF/ANSI Std. 4 marks on the distributor installation sheet
Model & Series
Series	Prontobar Touch
Warranty	2 years manufacturer warranty

Manuals & downloads5

Spec SheetNuova Simonelli Prontobar Touch Super-Automatic Espresso Machine

ManualNuova Simonelli Prontobar Touch Super-Automatic Espresso Machine

Spare PartsNuova Simonelli Prontobar Touch Super-Automatic Espresso Machine

WarrantyAll Nuova Simonelli models

BrochureNuova Simonelli Prontobar Touch Super-Automatic Espresso Machine

Questions about the Nuova Simonelli Prontobar Touch Super-Automatic Espresso Machine5

What electrical supply does the Prontobar Touch need?

220 V, 2800 W, 13 A, with a NEMA 6-20 receptacle within 3 ft of the machine, per the US distributor installation requirements sheet. Have a licensed electrician confirm the circuit and receptacle before installation.

Does the Prontobar Touch need a water line and drain?

Water: a dedicated 3/8 in cold water line with a shut-off valve and compression fitting.
Required water quality: hardness 3 gpg or 50 ppm, line pressure 2 to 4 bar, minimum flow 1 GPM, filtration of 1.0 micron or finer, TDS 50 to 250 ppm, alkalinity 10 to 150 ppm, chlorine 0.50 or less, pH 6.5 to 8.5.
Drain: an open gravity drain with a minimum 1.25 in inside diameter, within 4 ft of the machine.

How much counter space does the Prontobar Touch need?

Plan for a counter area 13 in wide, 21 in deep and 25 in high. The installation sheet also shows a 2.5 in drain hole location at the front of the counter space.

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
