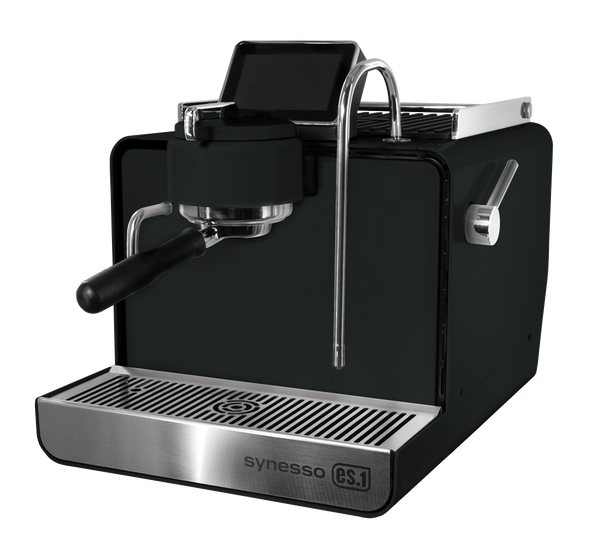

Synesso ES.1 Dual Boiler Espresso Machine Black front three-quarter view

Full manufacturer warranty

Synesso ES.1 Dual Boiler Espresso Machine

Q: What water quality does the ES.1 require?

Synesso's ES.1 water standards are:Total dissolved solids: 30-200 ppmTotal hardness: 50-85 ppm (3-5 grains)pH: 6.5-8Chloride: 5-15 ppmTotal alkalinity: below 100 ppmChlorine and iron: 0 ppmWater that does not meet these standards voids the warranty.

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)

$13,860

No sales taxPrice match

Color: Black

In stock Freight delivery $299

Ships in 3–5 days Curbside freight delivery. We'll call you to book a delivery window.

Excellent

4.7 on

Key specs

1 groupGroup heads

Dual boilerBoiler system

Needs a 14.8 A, 100-120 V circuitPower · 1200 W

Plumbed in: water line + drainWater

18.0 in wideSize · 22.0 in deep · 18.0 in tall · 80.0 lb

3.25 L (600 W) steam boilerSteam

See all specs ↓

About the Synesso ES.1 Dual Boiler Espresso Machine

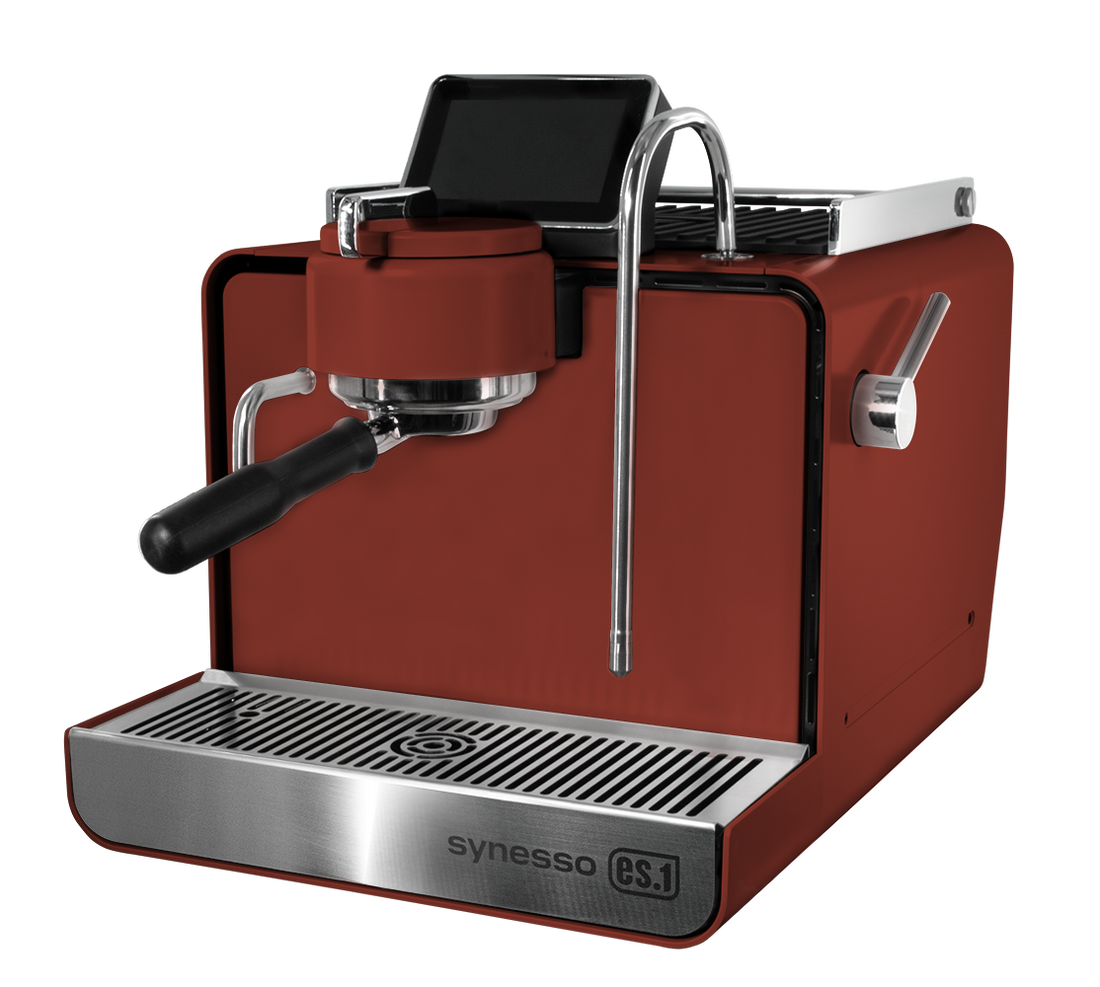

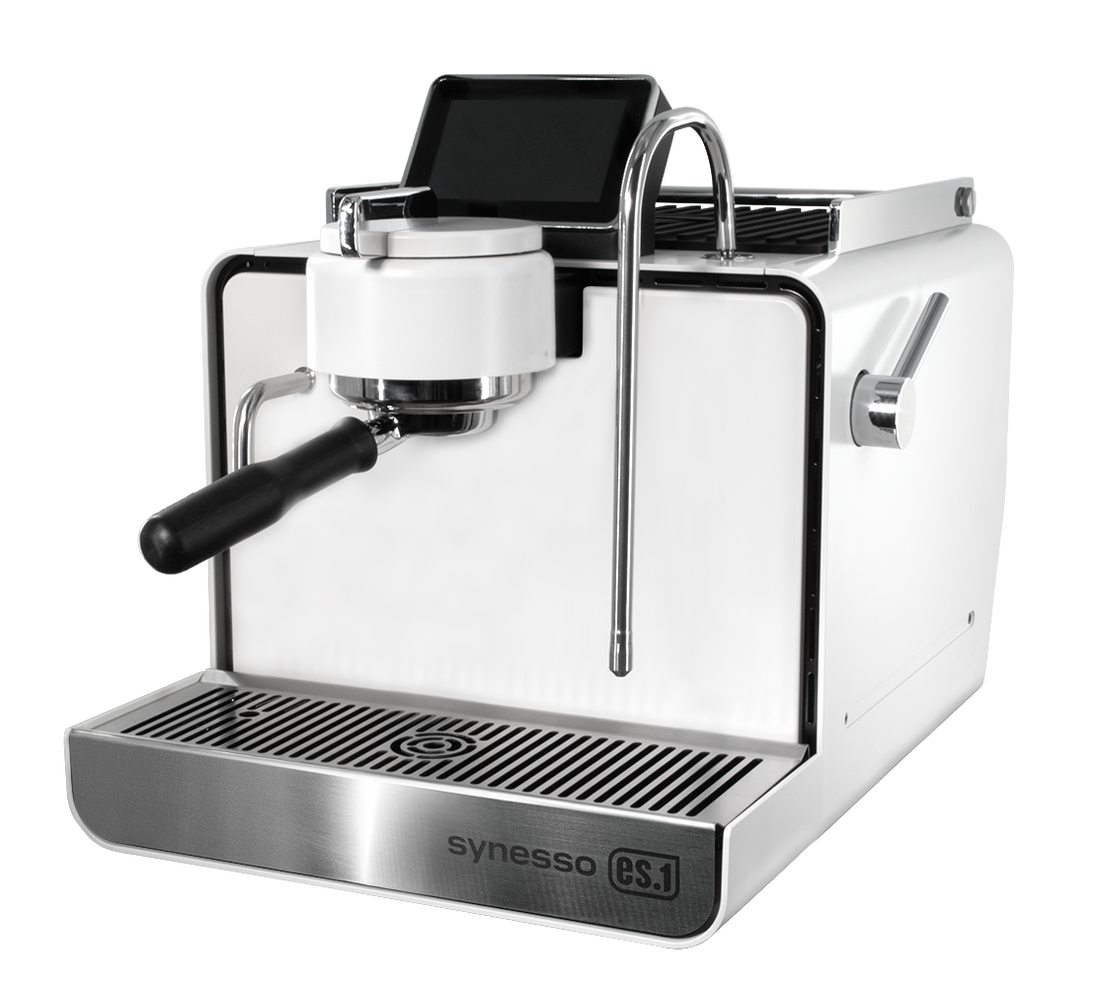

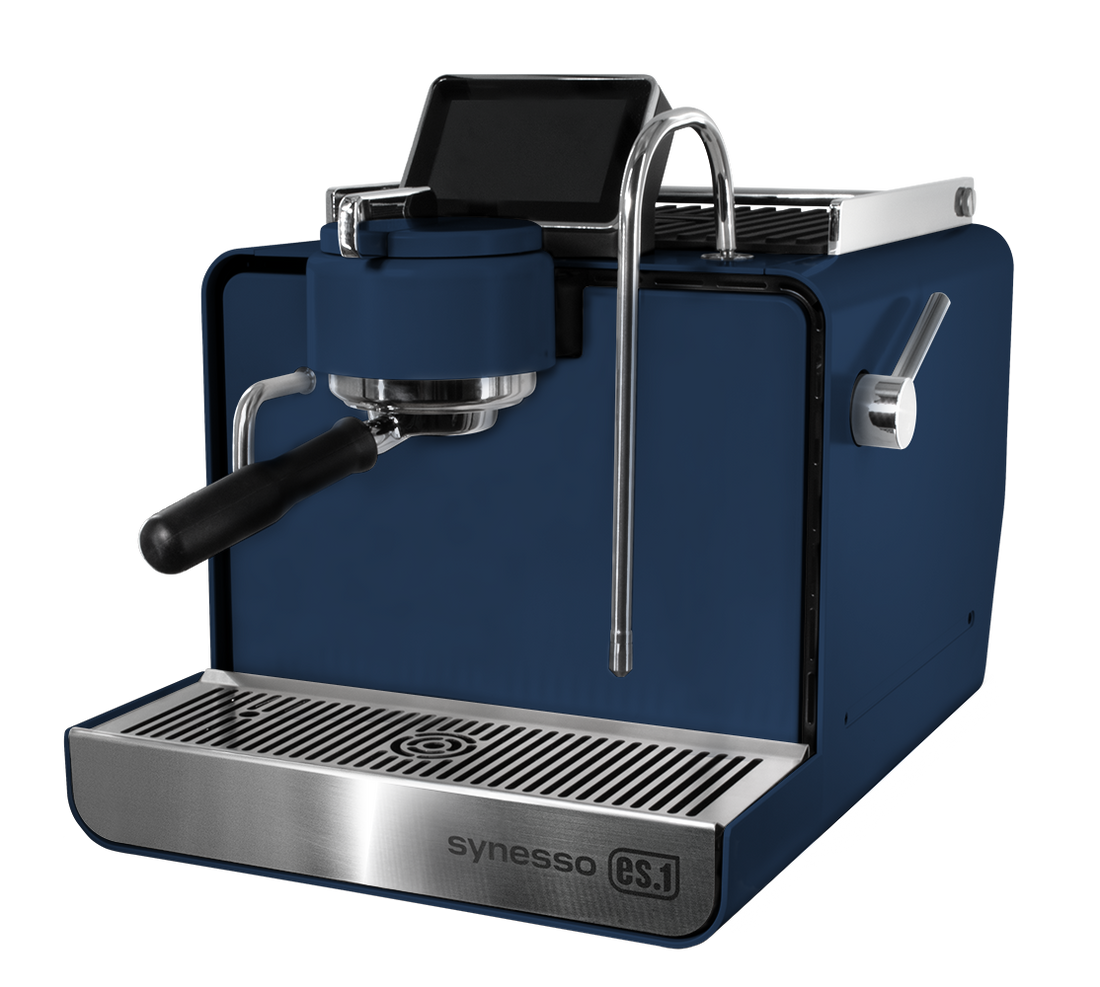

The Synesso ES.1 brings Synesso's pressure control and temperature stability to the home, mobile coffee carts and light commercial bars. It is a compact dual boiler machine that runs on a standard 120 V outlet, works from its own reservoir or a water line, and is built in Seattle in four Synesso colors.

Key Features

Patent-pending valve matrix measures temperature, flow and pressure 10 times per second
Pressure profile manually through 3 stages with the paddle, or run saved volumetric recipes from the touchscreen
Pressure and flow graphs, shot history and editable recipes
Dual boiler: brew and steam at the same time without losing temperature
3 L front-fill reservoir, or plumb it in with the optional plumb and drain kits
Volumetric tea tap with saved temperature profiles from 165 to 205 F

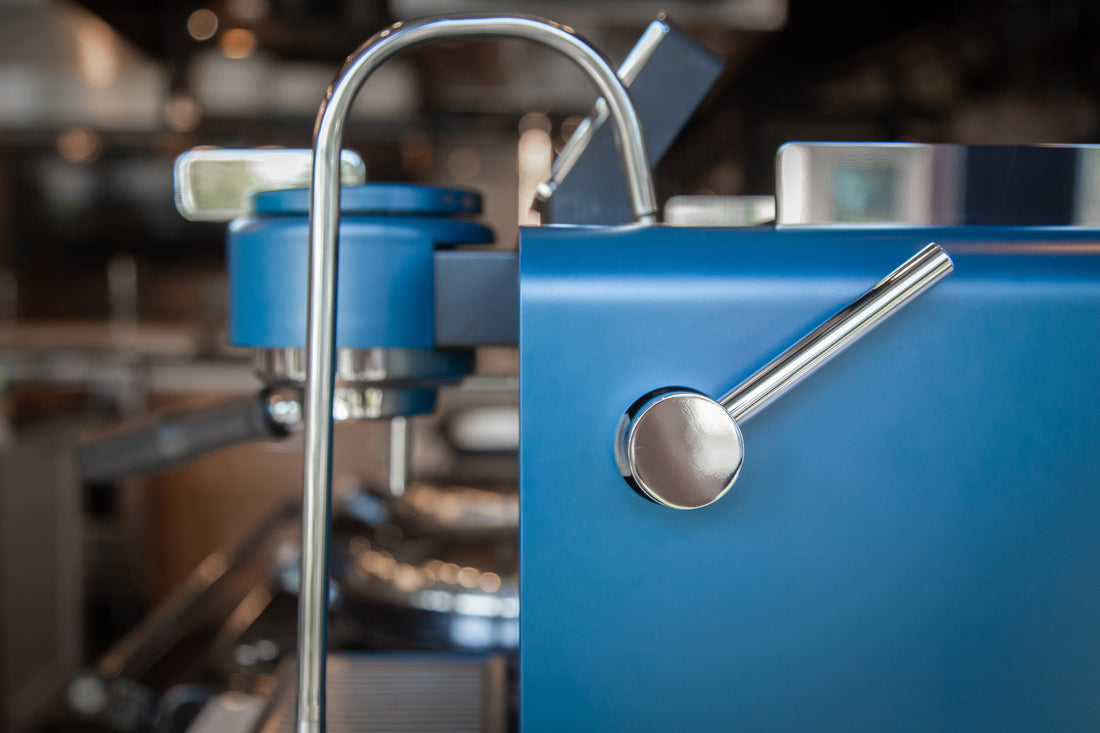

Classic Synesso cool-touch steam wands and a simplified auto-backflush routine

Specifications

Dimensions: 18 in wide x 22 in deep x 18 in high; 80 lb
Brew boiler: 0.5 L (600 W); steam boiler: 3.25 L (600 W)
Power: 100-120 V, single phase, 14.8 A, 1200 W, NEMA 5-15 plug

Warranty

The ES.1 carries a 13 month limited warranty from the date of shipment. Water that does not meet Synesso's ES.1 water standards voids the warranty. See all Synesso espresso machines.

Specifications

Brewing
Group heads	1
Boiler system	Dual Boiler
Coffee boiler capacity	0.5 L (600 W)
Steam boiler capacity	3.25 L (600 W)
Group head	Actively heated group head
Temperature control	Touchscreen controlled PID
Pump	Internal commercial rotary vane pump
Water source	Tank or Plumbed
Water tank capacity	3 L
Dosing and flow control	Manual 3-stage pressure profiling with the paddle or saved volumetric recipes
Features
Display	Touchscreen with pressure and flow graphs and shot history
Cleaning	Simplified auto-backflush routine
Physical Measurements
Width	18.0 in
Depth	22.0 in
Height	18.0 in
Net weight	80.0 lb
Power
Voltage	100-120 V
Frequency	60 Hz
Wattage	1200 W
Amperage	14.8 A
Phase	1
Model & Series
Series	ES.1
Warranty	13 months limited warranty

Manuals & downloads5

Spec SheetSynesso ES.1 Dual Boiler Espresso Machine

ManualSynesso ES.1 Dual Boiler Espresso Machine

Product GuideSynesso ES.1 Dual Boiler Espresso Machine

WarrantyAll Synesso models

BrochureAll Synesso models

Questions about the Synesso ES.1 Dual Boiler Espresso Machine8

Can the ES.1 run on a standard 120 V outlet?

Yes. The US ES.1 runs on 100-120 V, single phase, and draws up to 14.8 A from a NEMA 5-15 plug, with no dedicated circuit required. Synesso's valve matrix avoids the power spikes usually needed to keep a dual boiler machine at temperature.

Does the ES.1 need a water line?

No. The ES.1 has a 3 L front-fill reservoir and a 1.75 L drip tray, so it works without plumbing. It can also be plumbed in with a plumb kit, and a drain kit is available for semi-permanent draining. For mobile use the ES.1 creates its own line pressure from a water container.

What water quality does the ES.1 require?

Synesso's ES.1 water standards are:

Total dissolved solids: 30-200 ppm
Total hardness: 50-85 ppm (3-5 grains)
pH: 6.5-8
Chloride: 5-15 ppm
Total alkalinity: below 100 ppm
Chlorine and iron: 0 ppm

Water that does not meet these standards voids the warranty.

How does pressure profiling work on the ES.1?

Extract manually through 3 stages of pressure with the paddle, or run a saved recipe from the touchscreen. The ES.1 shows pressure and flow graphs for each shot, keeps a shot history, and lets you save and edit recipes. The volumetric tea tap stores its own temperature profiles between 165 and 205 F.

What comes with the ES.1?

The ES.1 ships with its water reservoir and an accessory package: Synesso tamper, milk pitcher, bottomless portafilter, double spout portafilter, 2 baskets, blind basket, brew head cleaning tool, brew head cleaning detergent and a Synesso USB drive.

What warranty comes with a Synesso espresso machine?

Synesso commercial machines (MVP Hydra and S-Series) carry Synesso's limited 2 Year Plus warranty. Selected components, such as the machine body, frame, heating elements, wire harness and flow meters, are covered by a limited 5 year warranty, and Synesso's patented group head activation switches carry a lifetime warranty.

The ES.1 has its own limited warranty of 13 months from the date of shipment. All warranties require proper water treatment and are void without it.

Do Synesso machines need water treatment?

Yes. Synesso requires water treatment to keep the full machine warranty. Synesso does not prescribe one filter brand, because water quality varies by region; have your water tested by a water treatment specialist and choose a system that meets the water standards in the owner's manual.

Where are Synesso machines made?

Synesso machines are designed, engineered and hand-built to order in Seattle, Washington, where the company has built espresso machines since 2004. Synesso is part of Middleby Coffee.
