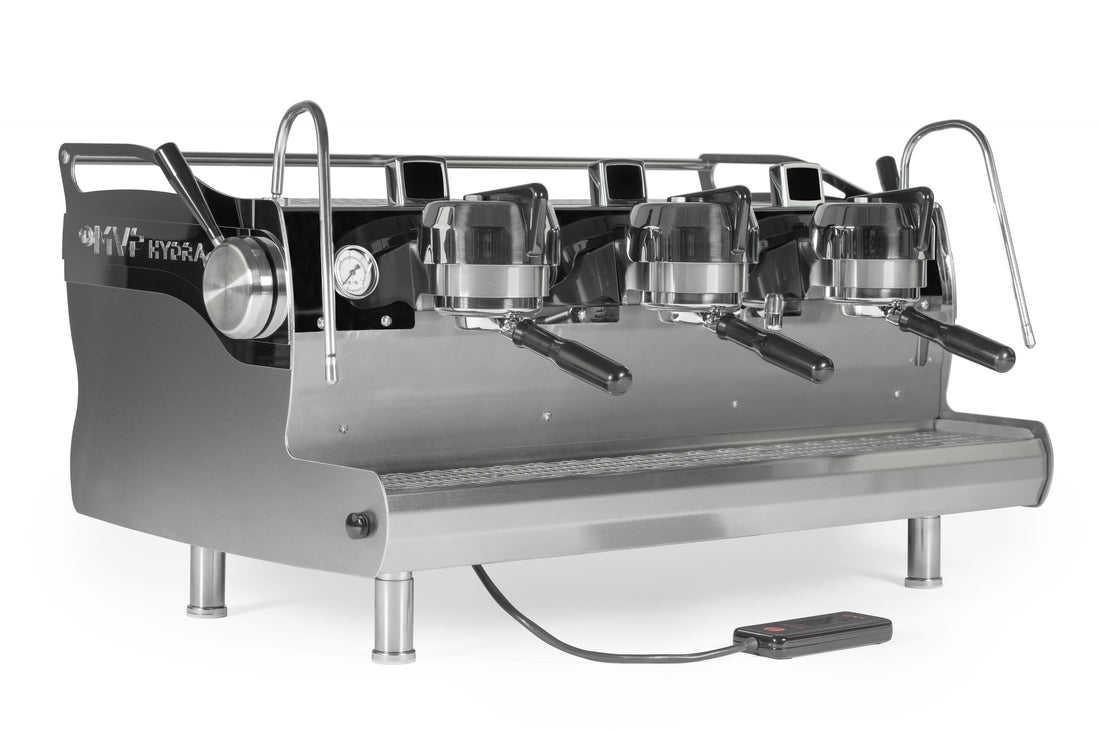

Synesso MVP Hydra 3 Group Espresso Machine front three-quarter view

Full manufacturer warranty

Synesso MVP Hydra 3 Group Espresso Machine

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)

$32,810

No sales taxPrice match

Group size: 3 Group

In stock Freight delivery $299

Ships in 3–5 days Curbside freight delivery. We'll call you to book a delivery window.

Excellent

4.7 on

Key specs

3 groupsGroup heads

Multi-boilerBoiler system

Needs a 36 A, 220 V circuitPower · 7100 W

Plumbed in: water line + drainWater

41.0 in wideSize · 24.0 in deep · 21.0 in tall · 190.0 lb

12.3 L (2500 W) steam boilerSteam

See all specs ↓

About the Synesso MVP Hydra 3 Group Espresso Machine

The Synesso MVP Hydra 3 Group is Synesso's flagship 3 group multi-boiler machine for high volume specialty cafes, where every group needs its own pressure profile during the busiest service. Every group head has its own pump, motor and brew boiler, and the machine is hand-built to order in Seattle.

Key Features

Individual pump and motor for every group head, so each group runs its own pressure profile at the same time
Manual, Semi-Automatic and Full Volumetric modes with 4-stage pressure ramping
Save up to 6 recipes per group head from the handheld controller
Dedicated 1.9 L stainless steel brew boiler per group with PID control, hand-bent copper tubing
Classic Synesso cool-touch steam wands and automated backflush program
Pressure regulator included; line boost available for low pressure areas
Custom RAL powder coating and wood accent kits available as add-ons

Specifications

Dimensions: 41 in wide x 24 in deep x 21 in high; 190 lb
Brew boilers: 1.9 L per group (700 W each); steam boiler: 12.3 L (2500 W)
Power: 220 V, single phase, 36 A, 7100 W; dedicated circuit, plug not included
Plumbed water line (min 50 psi, 3/8 in fitting with shut-off) and drain required

Installation and Warranty

Professional installation is required. The machine is covered by Synesso's 2 year parts warranty, with a limited 5 year warranty on selected components. Water treatment is required to keep the warranty. Also available as the 2 Group; see all Synesso espresso machines.

Specifications

Brewing
Group heads	3
Boiler system	Multi-Boiler
Coffee boiler capacity	1.9 L per group (700 W each)
Steam boiler capacity	12.3 L (2500 W)
Group head	Independent group heads, each with a dedicated brew boiler
Temperature control	PID control per brew boiler
Pump	Individual pump and motor per group, bypass hardware and pressure regulator included
Water source	Plumbed
Dosing and flow control	Manual, Semi-Automatic and Full Volumetric modes; 4-stage pressure ramping; 6 recipes per group
Features
Display	LED shot timer display; handheld controller
Cleaning	Automated backflush program
Physical Measurements
Width	41.0 in
Depth	24.0 in
Height	21.0 in
Net weight	190.0 lb
Power
Voltage	220 V
Frequency	50/60 Hz
Wattage	7100 W
Amperage	36 A
Phase	1
Model & Series
Series	MVP Hydra
Warranty	2 years parts, 5 years limited on selected components

Manuals & downloads5

Spec SheetSynesso MVP Hydra 3 Group Espresso Machine

ManualSynesso MVP Hydra 3 Group Espresso Machine

Installation GuideSynesso MVP Hydra 3 Group Espresso Machine

WarrantyAll Synesso models

BrochureAll Synesso models

Questions about the Synesso MVP Hydra 3 Group Espresso Machine8

What brew modes does the MVP Hydra offer?

Each group head can run in Manual, Semi-Automatic or Full Volumetric mode. In manual mode the barista controls a 4-stage pressure ramp, and the profile can then be saved and repeated automatically. Each group head stores up to 6 recipes, set from the handheld controller.

What makes the MVP Hydra different from the S-Series?

The MVP Hydra has an individual pump and motor for every group head, so each group can run its own pressure profile at the same time. It adds 4-stage pressure ramping and manual pressure profiling. The S-Series uses a single pump with auto-volumetric recipes and adjustable pre-infusion in a lower profile body, and is aimed at cafes that want simple, consistent operation.

What electrical service does the MVP Hydra need?

All MVP Hydra models run on 220 V, single phase, on a dedicated circuit. Synesso's installation guides list 16 A for the 1 Group, 30 A for the 2 Group and 36 A for the 3 Group. The machine ships without a plug: a qualified electrician or espresso technician fits a correctly rated plug and receptacle or wires it per local code.

What are the water and drain requirements for the MVP Hydra?

A filtered cold water line with at least 50 psi line pressure and a 3/8 in MPT fitting with shut-off valve.

A drain within 4 feet of the machine, with a 1/2 in air gap.

A 2.5 in (minimum) cut-out in the counter for hoses and cords. A pressure regulator is included for areas with high line pressure; a line boost is available where pressure is low.

Can the MVP Hydra be customized?

Yes. Synesso offers custom RAL powder coating for the panels and wood accent kits (maple, black walnut or white oak) for the portafilter, group and steam handles. These are add-on options; contact us for a quote before ordering.

What warranty comes with a Synesso espresso machine?

Synesso commercial machines (MVP Hydra and S-Series) carry Synesso's limited 2 Year Plus warranty. Selected components, such as the machine body, frame, heating elements, wire harness and flow meters, are covered by a limited 5 year warranty, and Synesso's patented group head activation switches carry a lifetime warranty.

The ES.1 has its own limited warranty of 13 months from the date of shipment. All warranties require proper water treatment and are void without it.

Do Synesso machines need water treatment?

Yes. Synesso requires water treatment to keep the full machine warranty. Synesso does not prescribe one filter brand, because water quality varies by region; have your water tested by a water treatment specialist and choose a system that meets the water standards in the owner's manual.

Where are Synesso machines made?

Synesso machines are designed, engineered and hand-built to order in Seattle, Washington, where the company has built espresso machines since 2004. Synesso is part of Middleby Coffee.
