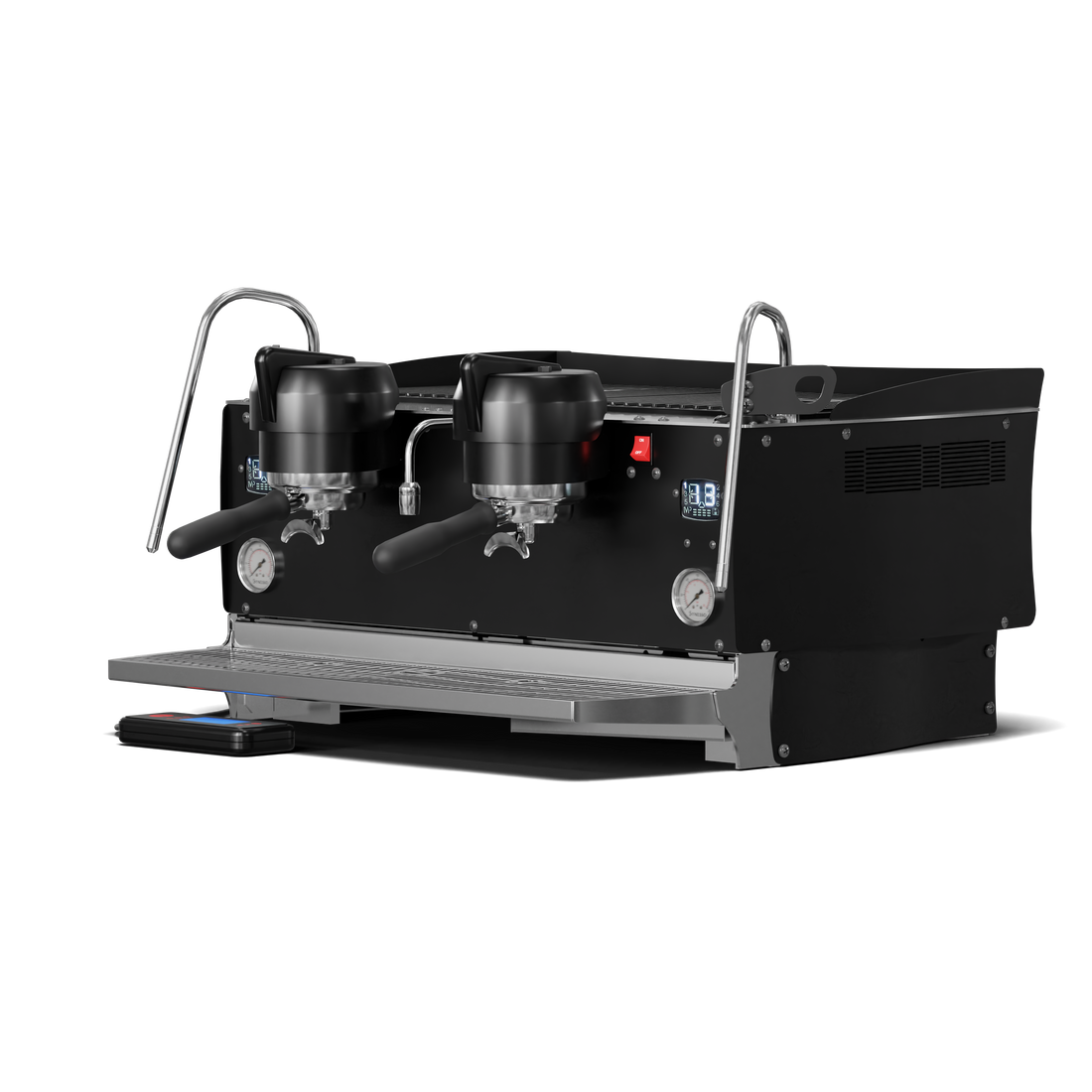

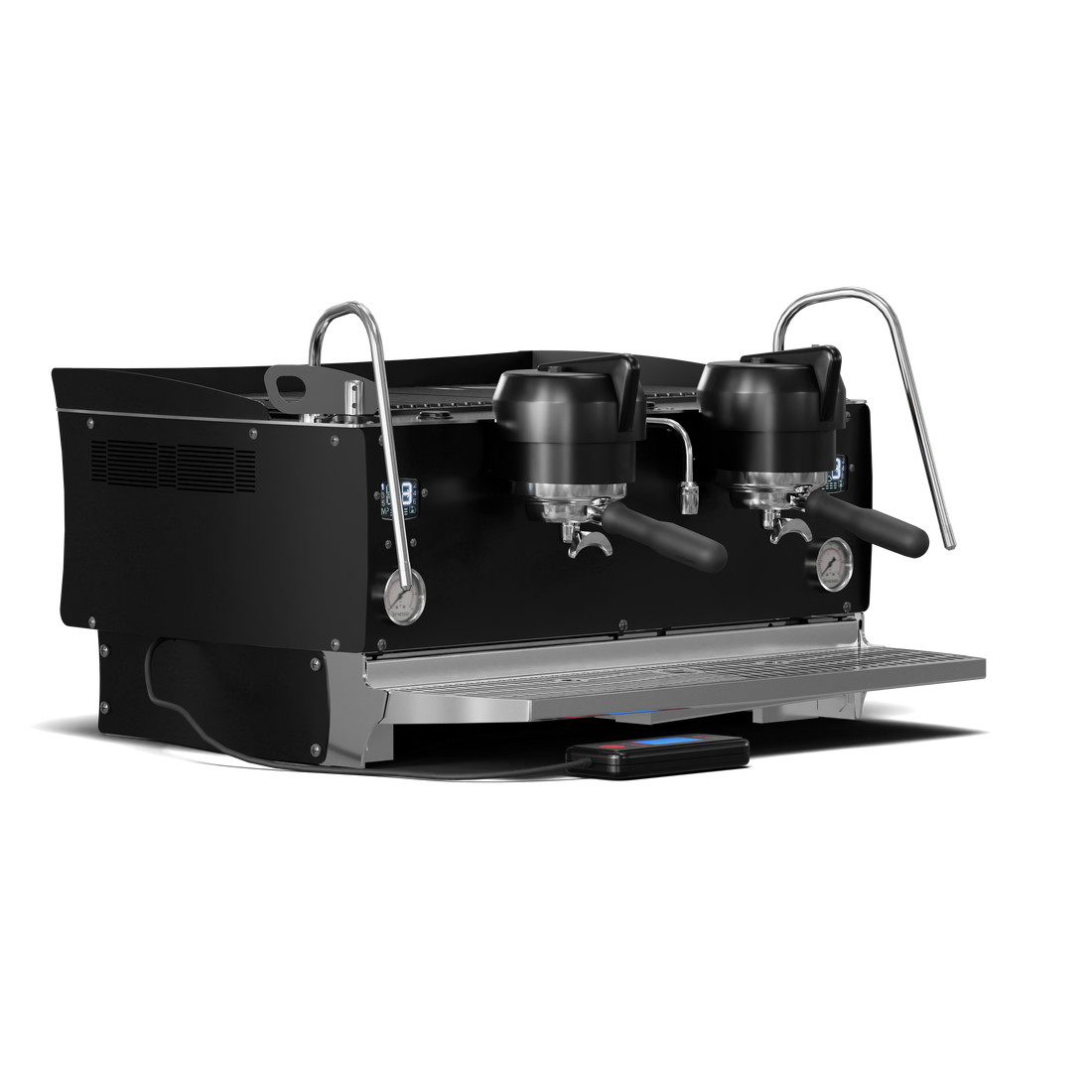

Synesso S200 2 Group Espresso Machine Black front three-quarter view

Full manufacturer warranty

Synesso S200 2 Group Espresso Machine

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)

$19,430

No sales taxPrice match

Group size: S200 2 Group

Color: Black

In stock Freight delivery $299

Ships in 3–5 days Curbside freight delivery. We'll call you to book a delivery window.

Excellent

4.7 on

Key specs

2 groupsGroup heads

Multi-boilerBoiler system

Needs a 28 A, 220 V circuitPower · 5400 W

Plumbed in: water line + drainWater

27.6 in wideSize · 24.0 in deep · 16.9 in tall · 152.0 lb

7.7 L (2000 W) steam boilerSteam

See all specs ↓

About the Synesso S200 2 Group Espresso Machine

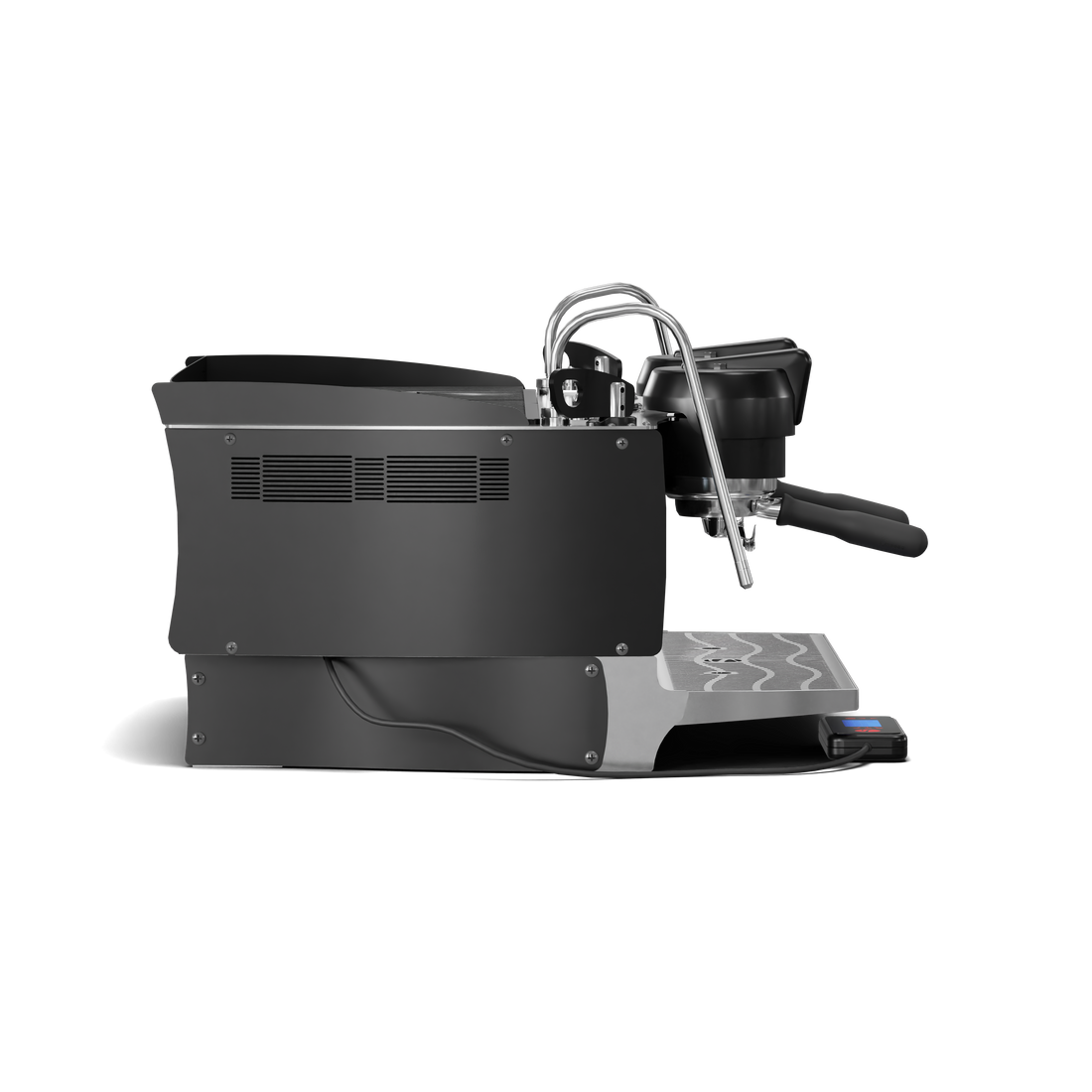

The Synesso S200 is Synesso's compact 2 group machine for cafes, restaurants and coffee programs that want Synesso build quality and temperature stability with simple, consistent auto-volumetric operation. It is hand-built to order in Seattle and comes in matte Synesso Black or matte Synesso White.

Key Features

Low-profile body keeps the barista in contact with guests across the counter
Auto-volumetric: up to 4 recipes per group with adjustable auto pre-infusion
One-tap espresso controls and a one-tap automatic backflush program
Dedicated 1.9 L stainless steel brew boiler per group with PID control, hand-bent copper tubing

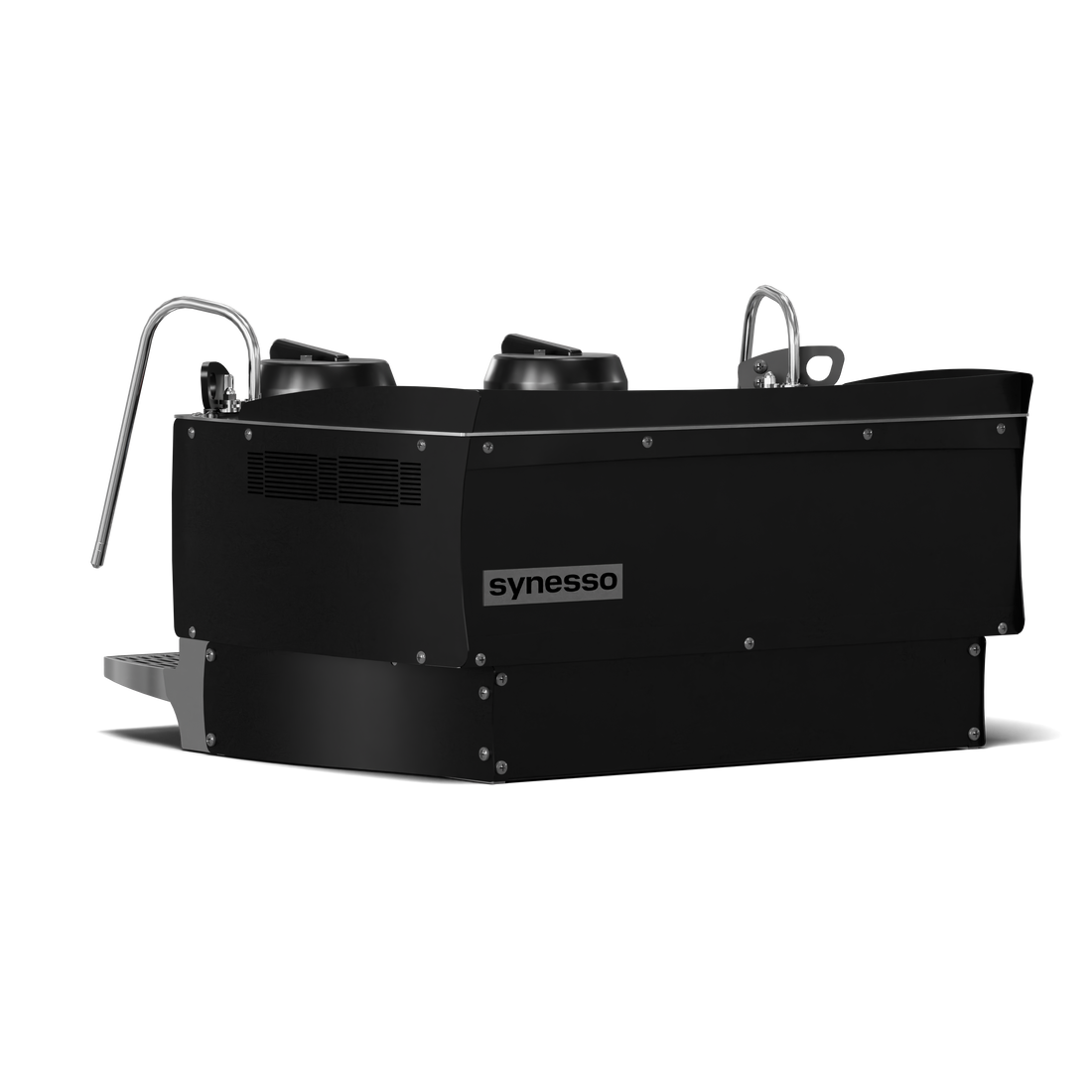

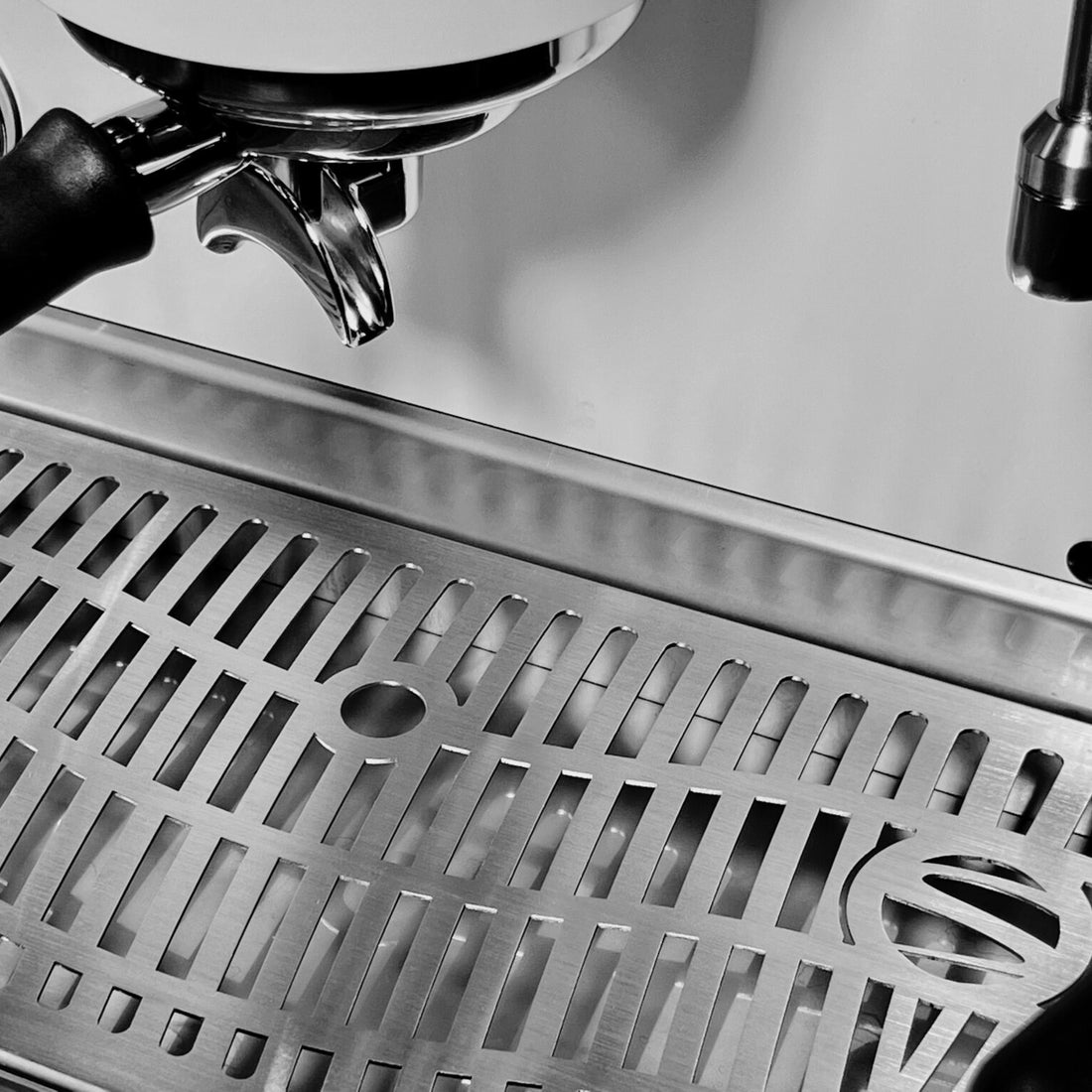

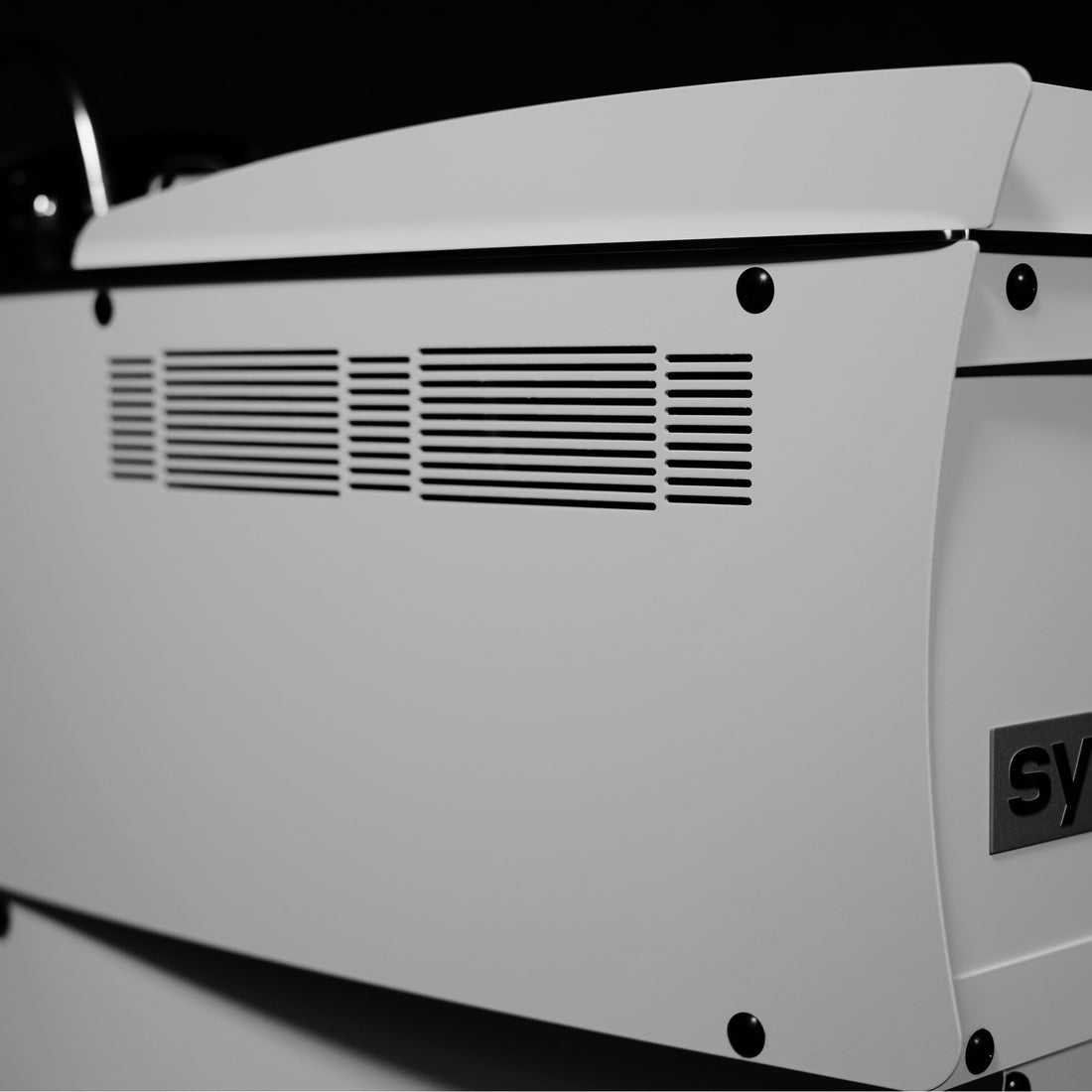

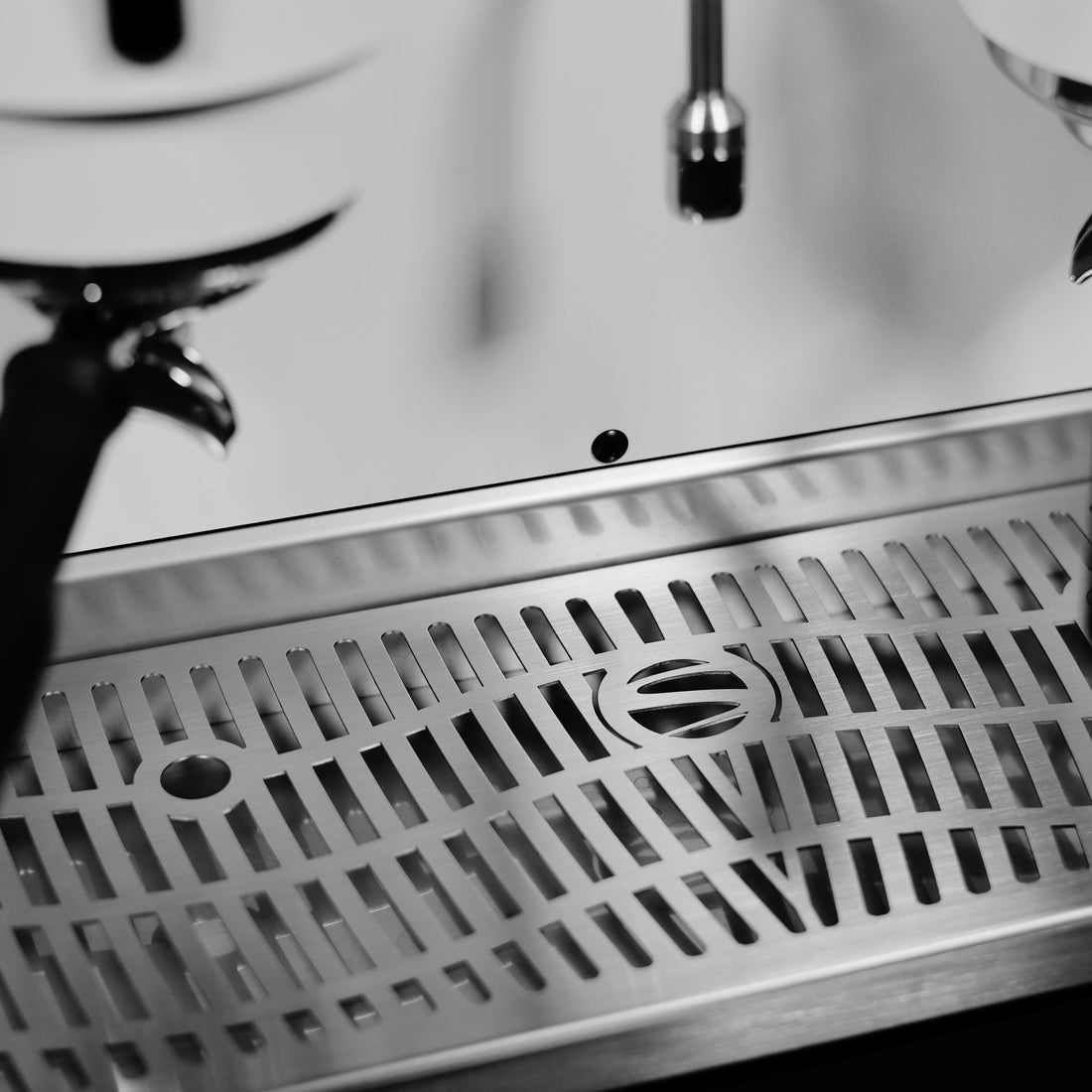

2025 refresh: easily removable drip tray with a deeper workspace, black screws and a redesigned back panel
Classic Synesso cool-touch steam wands; energy save and wake-up timing modes
Pressure regulator included; line boost available for low pressure areas

Specifications

Dimensions: 27.6 in wide x 24 in deep x 16.9 in high; 152 lb
Brew boilers: 1.9 L per group (700 W each); steam boiler: 7.7 L (2000 W)
Power: 220 V, single phase, 28 A, 5400 W; dedicated circuit, plug not included
Plumbed water line (min 50 psi) and drain required

Installation and Warranty

Professional installation is required. The machine is covered by Synesso's 2 year parts warranty, with a limited 5 year warranty on selected components. Water treatment is required to keep the warranty. Also available as the S300 3 Group; see all Synesso espresso machines.

Specifications

Brewing
Group heads	2
Boiler system	Multi-Boiler
Coffee boiler capacity	1.9 L per group (700 W each)
Steam boiler capacity	7.7 L (2000 W)
Group head	Independent group heads, each with a dedicated brew boiler
Temperature control	PID control per brew boiler
Pump	Single external rotary pump and motor
Water source	Plumbed
Dosing and flow control	Auto-volumetric, up to 4 recipes per group, adjustable auto pre-infusion
Features
Display	Shot timers and brew pressure gauges; handheld controller
Cleaning	One-tap automatic backflush
Physical Measurements
Width	27.6 in
Depth	24.0 in
Height	16.9 in
Net weight	152.0 lb
Power
Voltage	220 V
Frequency	50/60 Hz
Wattage	5400 W
Amperage	28 A
Phase	1
Model & Series
Series	S-Series
Warranty	2 years parts, 5 years limited on selected components

Manuals & downloads5

Spec SheetSynesso S200 2 Group Espresso Machine

ManualSynesso S200 2 Group Espresso Machine

Installation GuideSynesso S200 2 Group Espresso Machine

WarrantyAll Synesso models

BrochureAll Synesso models

Questions about the Synesso S200 2 Group Espresso Machine8

What is the difference between the S200 and the S300?

Both machines share the same S-Series design and components. The S200 has 2 groups (27.6 in wide, 152 lb, 7.7 L steam boiler) and the S300 has 3 groups (37 in wide, 225 lb, 12.3 L steam boiler). Each group has its own 1.9 L stainless steel brew boiler with PID control.

What electrical service does the S-Series need?

Both models run on 220 V, single phase, on a dedicated circuit. Synesso lists 28 A for the S200 and 36 A for the S300. The machine ships without a plug: a qualified electrician or espresso technician fits a correctly rated plug and receptacle or wires it per local code.

What are the water and drain requirements for the S-Series?

A filtered cold water line with a shut-off valve and at least 50 psi (3.5 bar) of line pressure at 30 gallons per hour; the supplied hoses use 3/8 in compression fittings.

A drain under the machine; a 3/4 in drain hose is supplied. A pressure regulator is included, and a line boost is available for low pressure areas.

How do the S-Series volumetric recipes work?

The S-Series is auto-volumetric: each group stores up to 4 recipes, combined with adjustable auto pre-infusion. Baristas start a recipe by bumping the group paddle left or right, and a separate button flushes the group. A one-tap automatic backflush program is built in.

What colors are available for the S-Series?

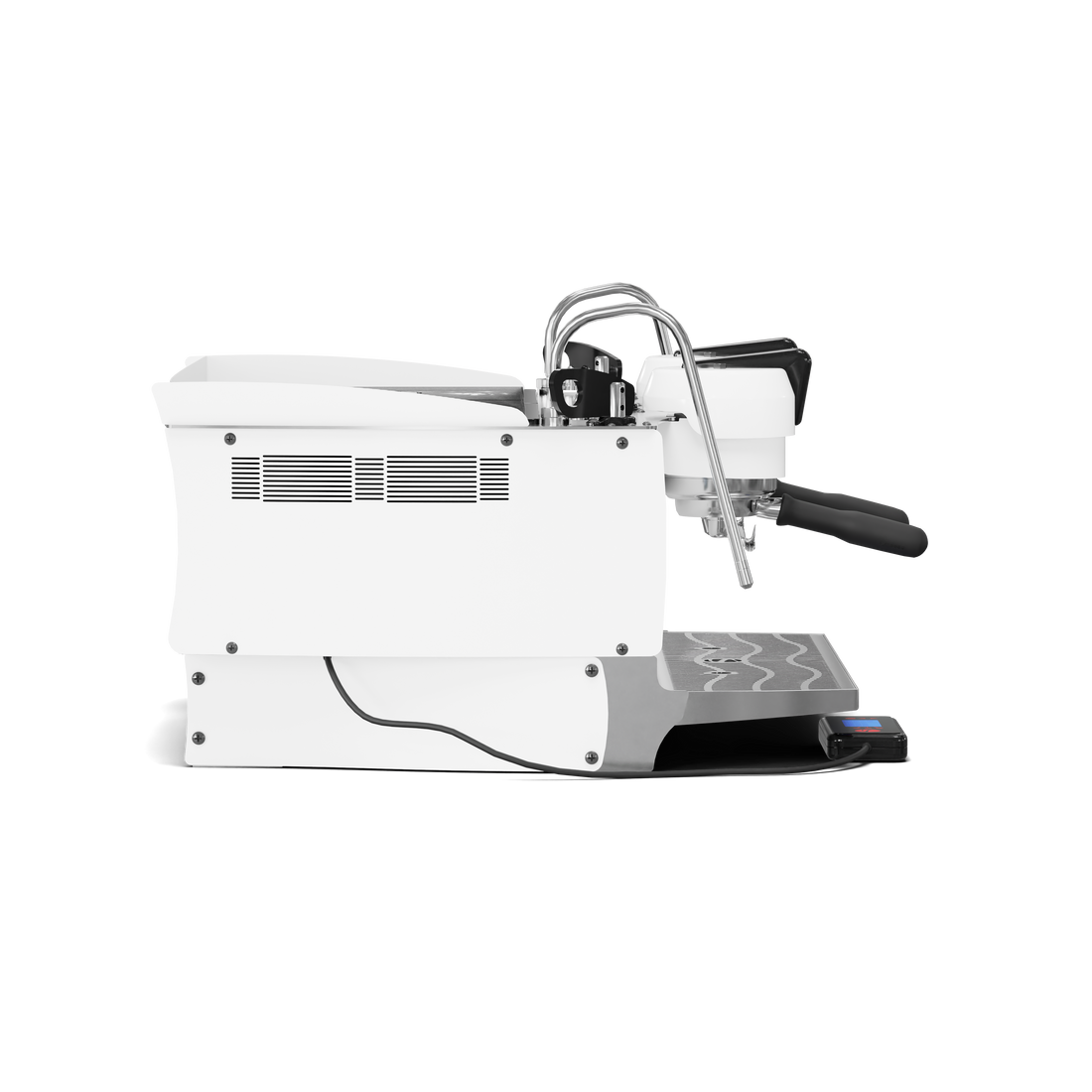

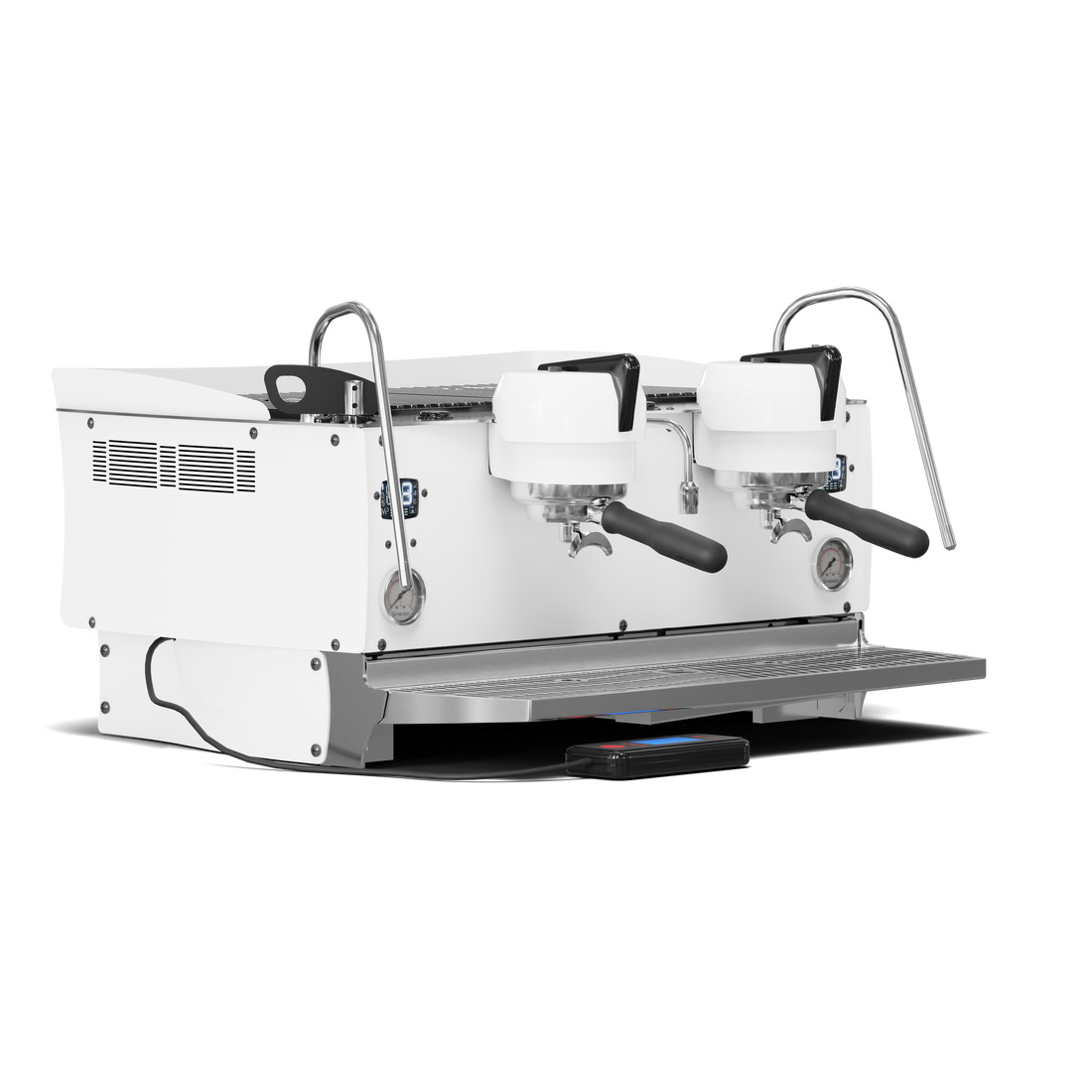

The S200 and S300 come in matte Synesso White or matte Synesso Black. Synesso also offers custom RAL powder coating and wood accent kits as add-on options; contact us for a quote.

What warranty comes with a Synesso espresso machine?

Synesso commercial machines (MVP Hydra and S-Series) carry Synesso's limited 2 Year Plus warranty. Selected components, such as the machine body, frame, heating elements, wire harness and flow meters, are covered by a limited 5 year warranty, and Synesso's patented group head activation switches carry a lifetime warranty.

The ES.1 has its own limited warranty of 13 months from the date of shipment. All warranties require proper water treatment and are void without it.

Do Synesso machines need water treatment?

Yes. Synesso requires water treatment to keep the full machine warranty. Synesso does not prescribe one filter brand, because water quality varies by region; have your water tested by a water treatment specialist and choose a system that meets the water standards in the owner's manual.

Where are Synesso machines made?

Synesso machines are designed, engineered and hand-built to order in Seattle, Washington, where the company has built espresso machines since 2004. Synesso is part of Middleby Coffee.
