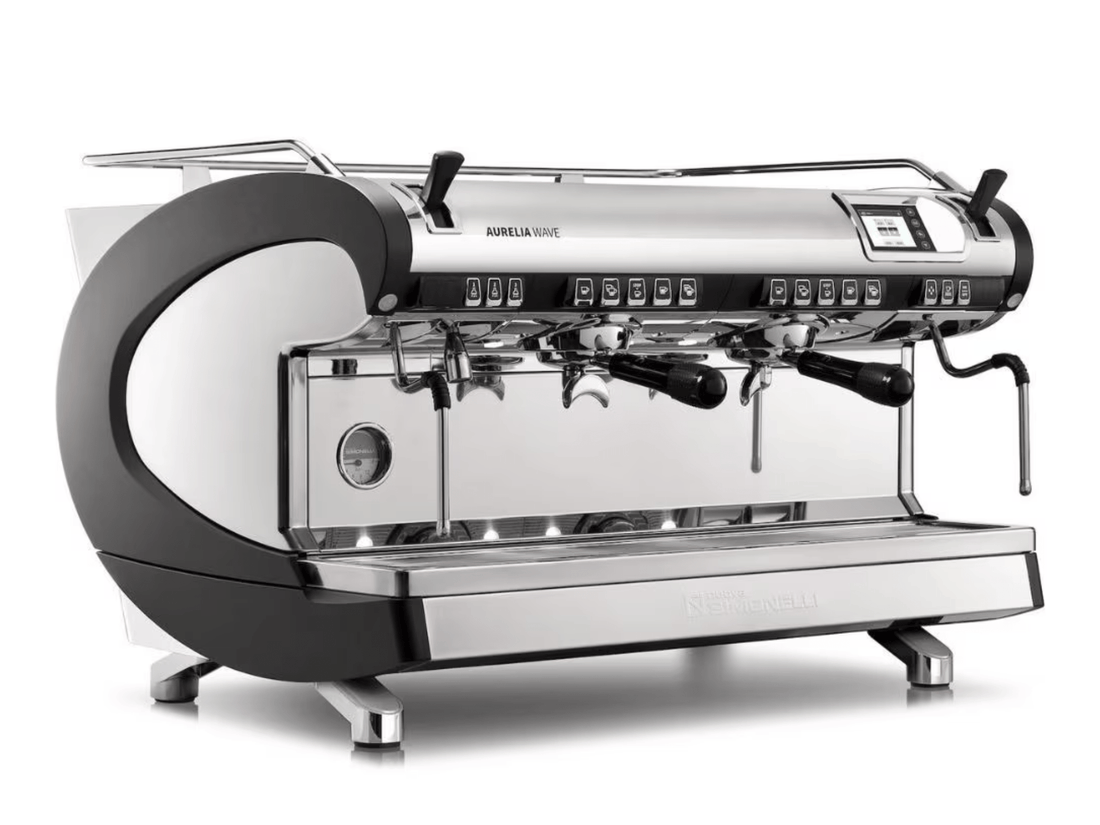

Nuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine angle view

Full manufacturer warranty

Nuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine

Q: What is the difference between the Aurelia Wave Semi, Volumetric and Digit versions?

Semi: you start and stop each shot manually.Volumetric: programmable doses for each group, with a digital display, a power saving option and automatic cleaning.Digit: everything in the Volumetric, plus a touch screen, auto-purge and enhanced diagnostics.The Volumetric and Digit versions are autosteam capable, per the US distributor. All versions have raised group heads, cool-touch steam wands and a soft infusion system. The 2 Group and 3 Group machines are separate listings.

Q: How big is the Aurelia Wave?

2 Group: 32 in wide x 24 in deep x 22 in high, 14 L boiler.3 Group: 41 in wide x 24 in deep x 22 in high, 17 L boiler.Dimensions and boiler sizes per the US distributor spec table.

$17,500

No sales taxPrice match

Configuration: 3 Group · Volumetric

2 Group · Semi-Automatic 2 Group · Volumetric 2 Group · Digit 3 Group · Semi-Automatic 3 Group · Volumetric 3 Group · Digit

In stock Freight delivery $299

Ships in 1–3 business days

Curbside freight delivery. We'll call you to book a delivery window.

Excellent

4.7 on

Key specs

3 groupsGroup heads

Heat exchangerBoiler system

Needs a 25 A, 220 V circuitPower · 5400 W

Plumbed in: water line + drainWater

41.0 in wideSize · 24.0 in deep · 22.0 in tall · 203.0 lb

17 L steam boilerSteam

See all specs ↓

About the Nuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine

The Nuova Simonelli Aurelia Wave 3 Group Volumetric is a commercial espresso machine for busy cafes that need consistent shots from 3 groups. Programmable doses let every barista pull the same volume.

Key Features

Volumetric dosing with programmable doses per group, a digital display and a power saving option; autosteam capable
Steam boiler with 17 L capacity per the US distributor spec table
Raised group heads fit tall cups and travel mugs
Soft infusion system for gentle pre-wetting of the puck
Cool-touch steam wands
Automated cleaning program

Specifications

Dimensions: 41 in wide x 24 in deep x 22 in high
Power: 220 V, 5400 W, 25 A (NEMA L6-30)

Warranty

Backed by a 2-year manufacturer warranty, per the US distributor. The machine needs a water connection and drain. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

Specifications

Brewing
Group heads	3
Boiler system	Heat Exchanger
Steam boiler capacity	17 L
Group head	Raised group heads with Soft Infusion System
Water source	Plumbed
Dosing and flow control	Programmable volumetric doses for each group
Features
Display	Digital display
Cleaning	Automated cleaning
Autosteam	Autosteam capable
Physical Measurements
Width	41.0 in
Depth	24.0 in
Height	22.0 in
Net weight	203.0 lb
Power
Voltage	220 V
Wattage	5400 W
Amperage	25 A
Phase	1
Certifications
Certifications	NSF/ANSI Std. 4; CSA certificate of compliance published by distributor
Model & Series
Series	Aurelia Wave
Warranty	2 years manufacturer warranty

Manuals & downloads4

Spec SheetNuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine

ManualNuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine

WarrantyAll Nuova Simonelli models

BrochureNuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine

Questions about the Nuova Simonelli Aurelia Wave 3 Group Volumetric Espresso Machine6

What is the difference between the Aurelia Wave Semi, Volumetric and Digit versions?

Semi: you start and stop each shot manually.
Volumetric: programmable doses for each group, with a digital display, a power saving option and automatic cleaning.
Digit: everything in the Volumetric, plus a touch screen, auto-purge and enhanced diagnostics.

The Volumetric and Digit versions are autosteam capable, per the US distributor. All versions have raised group heads, cool-touch steam wands and a soft infusion system. The 2 Group and 3 Group machines are separate listings.

What electrical supply does the Aurelia Wave need?

2 Group: 220 V (208-240 V range), 4700 W, 22 A, NEMA L6-30 twist-lock receptacle.
3 Group: 220 V (208-240 V range), 5400 W, 25 A, NEMA L6-30 twist-lock receptacle.

The outlet needs to be within 3 ft of the machine, per the US distributor spec sheet. Have a licensed electrician confirm your outlet before installation.

Does the Aurelia Wave need a water line and drain?

Yes, it is a plumbed machine. A dedicated 3/8 in cold water line with a shut-off valve and compression fitting is required (line pressure 2-4 bar, minimum flow 1 GPM, water hardness 3 gpg or 50 ppm, filtration under 1.0 micron, TDS 50-250 ppm, chlorine under 0.50 ppm, pH 6.5-8.5). An open gravity drain of at least 1.25 in inner diameter is needed within 4 ft of the machine. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

How big is the Aurelia Wave?

2 Group: 32 in wide x 24 in deep x 22 in high, 14 L boiler.
3 Group: 41 in wide x 24 in deep x 22 in high, 17 L boiler.

Dimensions and boiler sizes per the US distributor spec table.

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
