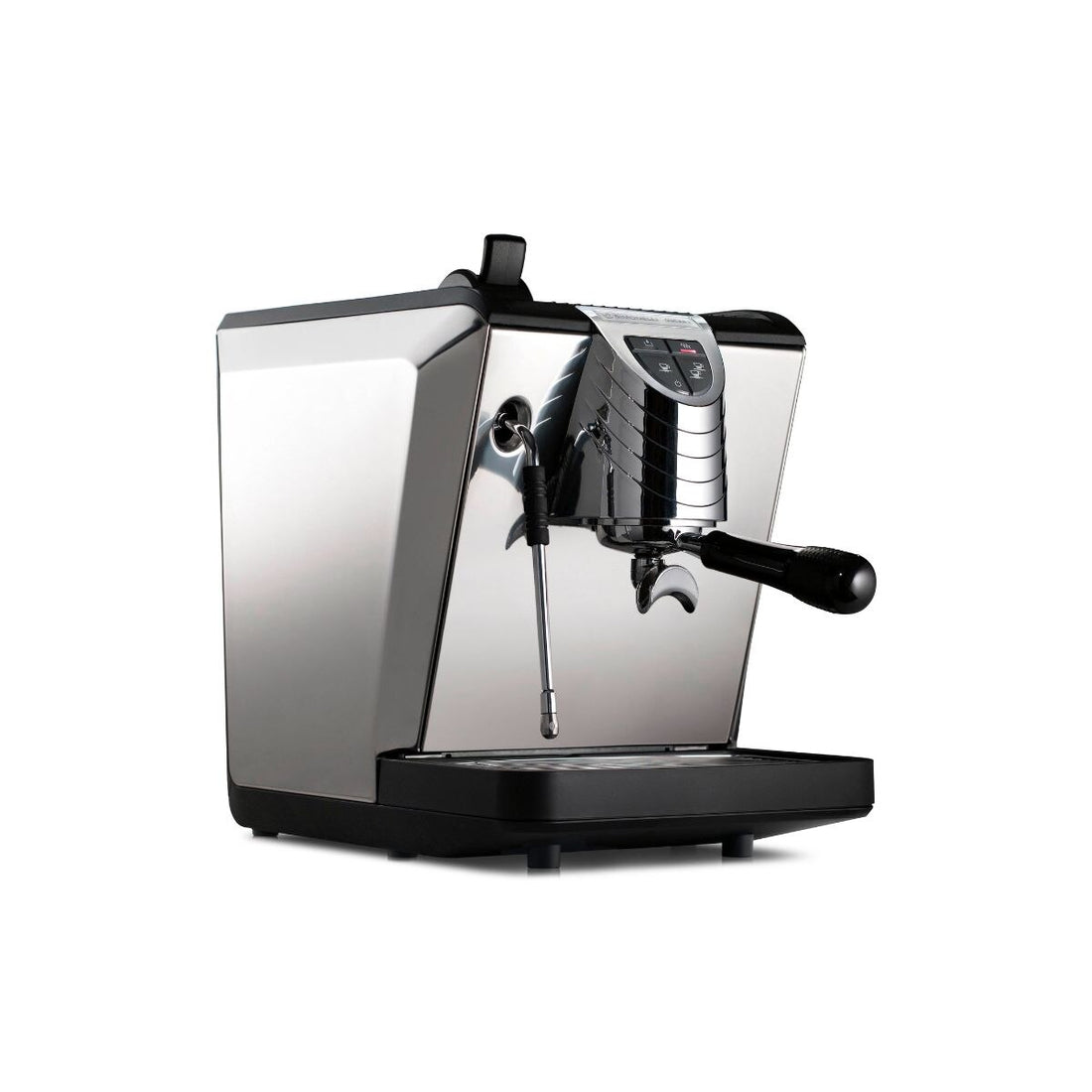

Nuova Simonelli Oscar II Direct Connect Espresso Machine Black angle view

Full manufacturer warranty

Nuova Simonelli Oscar II Direct Connect Espresso Machine

$2,450

No sales taxPrice match

Water Input: Direct Connect

In stock Shipping $89.90

Ships in 1–3 business days

Excellent

4.7 on

Key specs

1 groupGroup heads

Heat exchangerBoiler system

Needs a 10 A, 110 V circuitPower · 1200 W

Plumbed in: water line + drainWater

12.0 in wideSize · 16.0 in deep · 16.0 in tall · 40.0 lb

2 L steam boilerSteam

See all specs ↓

About the Nuova Simonelli Oscar II Direct Connect Espresso Machine

The Nuova Simonelli Oscar II Direct Connect is a compact 1 group espresso machine that connects directly to a cold water line. It brings a professional-size group head and a copper boiler to homes, offices, mobile locations and small shops without refilling a tank.

Key Features

Time-based dosing
Ergonomic push/pull steam lever with a cool-touch steam wand
Stainless steel and ABS body
2 liter boiler, plumbed water supply and a removable drip tray

Specifications

Dimensions: 12 in wide x 16 in deep x 16 in high
Power: 110 V, 1200 W, NEMA 5-15 plug
Water: 3/8 in cold water line with shut-off valve

Warranty

Backed by a 2-year manufacturer warranty, per the US distributor. The machine needs a water connection. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

Specifications

Brewing
Group heads	1
Boiler system	Heat Exchanger
Steam boiler capacity	2 L
Water source	Plumbed
Water tank capacity	None (plumbed)
Dosing and flow control	Time-based dosing
Features
Cleaning	No automated cleaning
Physical Measurements
Width	12.0 in
Depth	16.0 in
Height	16.0 in
Net weight	40.0 lb
Power
Voltage	110 V
Wattage	1200 W
Amperage	10 A
Phase	1
Certifications
Certifications	UL, CSA and NSF/ANSI Std. 4 marks on the distributor spec sheet
Model & Series
Series	Oscar II
Warranty	2 years manufacturer warranty

Manuals & downloads5

Spec SheetNuova Simonelli Oscar II Direct Connect Espresso Machine

Product GuideNuova Simonelli Oscar II Direct Connect Espresso Machine

Spare PartsNuova Simonelli Oscar II Direct Connect Espresso Machine

WarrantyAll Nuova Simonelli models

BrochureNuova Simonelli Oscar II Direct Connect Espresso Machine

Questions about the Nuova Simonelli Oscar II Direct Connect Espresso Machine6

What is the difference between the Oscar II Pour Over and Direct Connect versions?

Both versions are the same 1 group machine with a 2 liter boiler, time-based dosing, 110 V and 1200 W. The Pour Over version has a 1 liter removable water tank that you fill by hand. The Direct Connect version has no tank and connects to a dedicated cold water line.

What electrical supply does the Oscar II need?

110 V (range 110 to 125 V), 1200 W, 10 A, with a standard NEMA 5-15 receptacle, per the US distributor spec sheet.

Does the Oscar II need a water line and drain?

Pour Over: fills from the 1 liter removable tank, so no water line is needed. Drain style is a removable drip tray.
Direct Connect: needs a dedicated 3/8 in cold water line with a shut-off valve and compression fitting, a minimum incoming flow of 0.5 GPM and a maximum line pressure of 36 PSI (2.5 bar); a regulator is not included. Drain style is a removable drip tray.
Water hardness must not exceed 3 gpg (50 ppm); above that a water softener must be installed.

How big is the Oscar II?

The Oscar II is 12 in wide, 16 in deep and 16 in high, with a 2 liter boiler. The spec sheet lists a counter-space weight of 40 lb with water and a shipping weight of 39 lb (shipping box 22 x 16 x 21 in).

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
