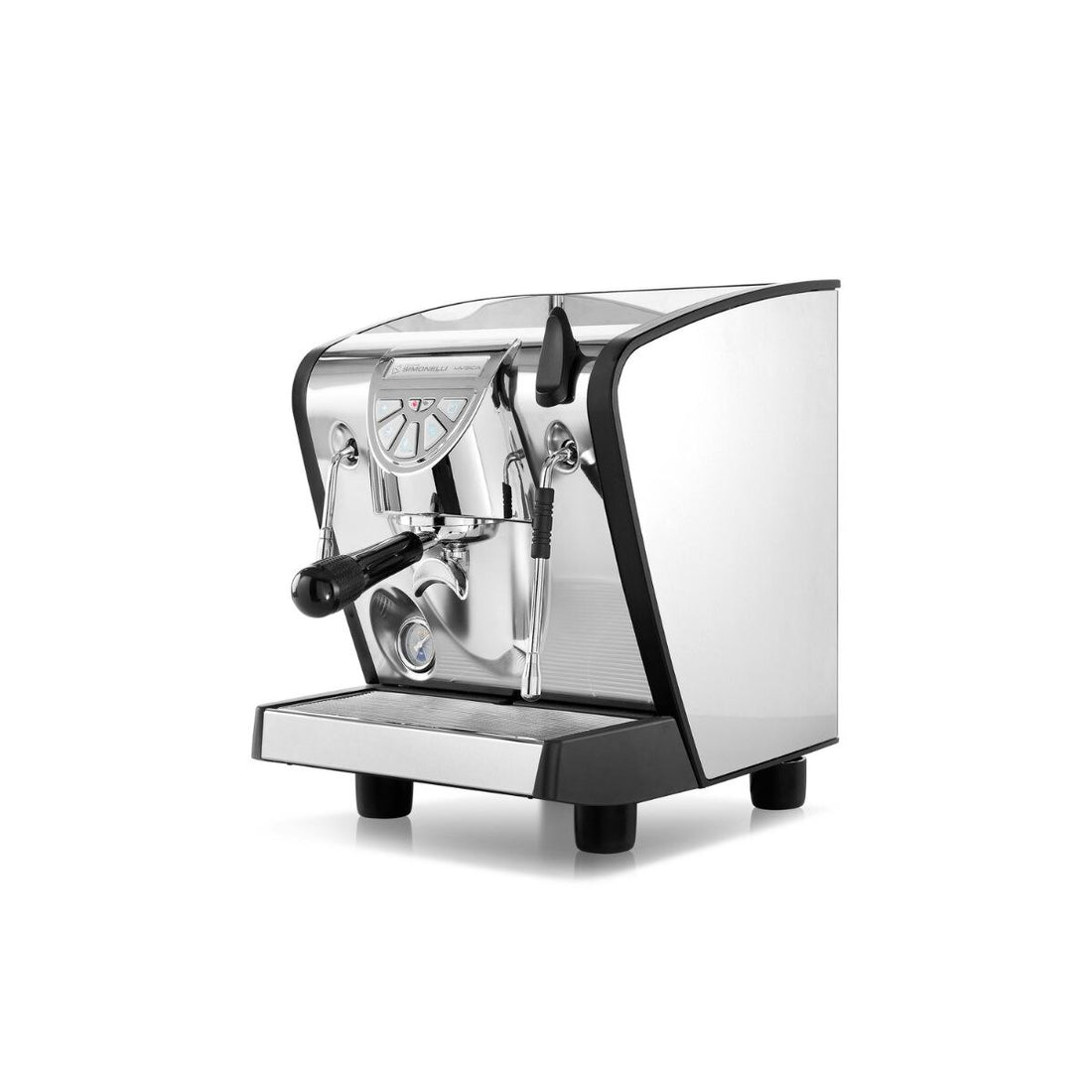

Nuova Simonelli Musica Volumetric Direct Connect Espresso Machine Black angle view

Authorized dealer

Nuova Simonelli Musica Volumetric Direct Connect Espresso Machine

$3,650

No sales taxPrice match

Water Input: Direct Connect

In stock Shipping $89.90

Ships in 1–3 business days

Excellent

4.7 on

Key specs

1 groupGroup heads

Heat exchangerBoiler system

Needs a 10 A, 110 V circuitPower · 1200 W

Plumbed in: water line + drainWater

13.0 in wideSize · 16.0 in deep · 17.0 in tall · 45.0 lb

2 L steam boilerSteam

See all specs ↓

About the Nuova Simonelli Musica Volumetric Direct Connect Espresso Machine

The Nuova Simonelli Musica Direct Connect is a compact 1 group volumetric espresso machine that connects directly to a cold water line. It suits homes, offices and small shops that want a professional group head and a 2 liter boiler in a small footprint without refilling a tank.

Key Features

Volumetric dosing: the machine doses by volume for repeatable shots
Soft Infusion System for gentle pre-wetting of the puck
Cool-touch steam wand with a push/pull steam lever
2 liter boiler, plumbed water supply and a removable drip tray

Specifications

Dimensions: 13 in wide x 16 in deep x 17 in high
Power: 110 V, 1200 W, NEMA 5-15 plug
Water: 3/8 in cold water line with shut-off valve

Warranty

Backed by a 2-year manufacturer warranty, per the US distributor. The machine needs a water connection. A water softener is mandatory when your water does not meet the required specifications, otherwise the warranty is void, and a water filter is recommended.

Specifications

Brewing
Group heads	1
Boiler system	Heat Exchanger
Steam boiler capacity	2 L
Group head	Single group with Soft Infusion System
Temperature control	Heat exchanger boiler
Water source	Plumbed
Water tank capacity	None (plumbed)
Dosing and flow control	Volumetric dosing
Features
Cleaning	No automated cleaning
Physical Measurements
Width	13.0 in
Depth	16.0 in
Height	17.0 in
Net weight	45.0 lb
Power
Voltage	110 V
Wattage	1200 W
Amperage	10 A
Phase	1
Certifications
Certifications	UL, CSA and NSF/ANSI Std. 4 marks on the distributor spec sheet
Model & Series
Series	Musica
Warranty	2 years manufacturer warranty

Manuals & downloads5

Spec SheetNuova Simonelli Musica Volumetric Direct Connect Espresso Machine

ManualNuova Simonelli Musica Volumetric Direct Connect Espresso Machine

Spare PartsNuova Simonelli Musica Volumetric Direct Connect Espresso Machine

WarrantyAll Nuova Simonelli models

BrochureNuova Simonelli Musica Volumetric Direct Connect Espresso Machine

Questions about the Nuova Simonelli Musica Volumetric Direct Connect Espresso Machine6

What is the difference between the Musica Pour Over and Direct Connect versions?

Both versions are the same 1 group volumetric machine with a 2 liter boiler, 110 V and 1200 W. The Pour Over version has a 1 liter removable water tank that you fill by hand, so it needs no plumbing. The Direct Connect version has no tank and connects to a dedicated cold water line.

What electrical supply does the Musica need?

110 V (voltage range 110 to 125 V), 1200 W, 10 A, with a standard NEMA 5-15 receptacle. These figures come from the US distributor spec sheet.

Does the Musica need a water line and drain?

Pour Over: fills from the 1 liter removable tank, so no water line is needed. Drain style is a removable drip tray.
Direct Connect: needs a dedicated 3/8 in cold water line with a shut-off valve and compression fitting, a minimum incoming flow of 35 GPH and a maximum line pressure of 70 PSI (5 bar); a regulator is not included. Drain style is a removable drip tray.
Water hardness must not exceed 3 gpg (50 ppm); above that a water softener must be installed.

How big is the Musica?

The Musica is 13 in wide, 16 in deep and 17 in high, with a 2 liter boiler. The spec sheet lists a counter-space weight of 45 lb and a shipping weight of 50 lb (shipping box 22 x 16 x 21 in).

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
