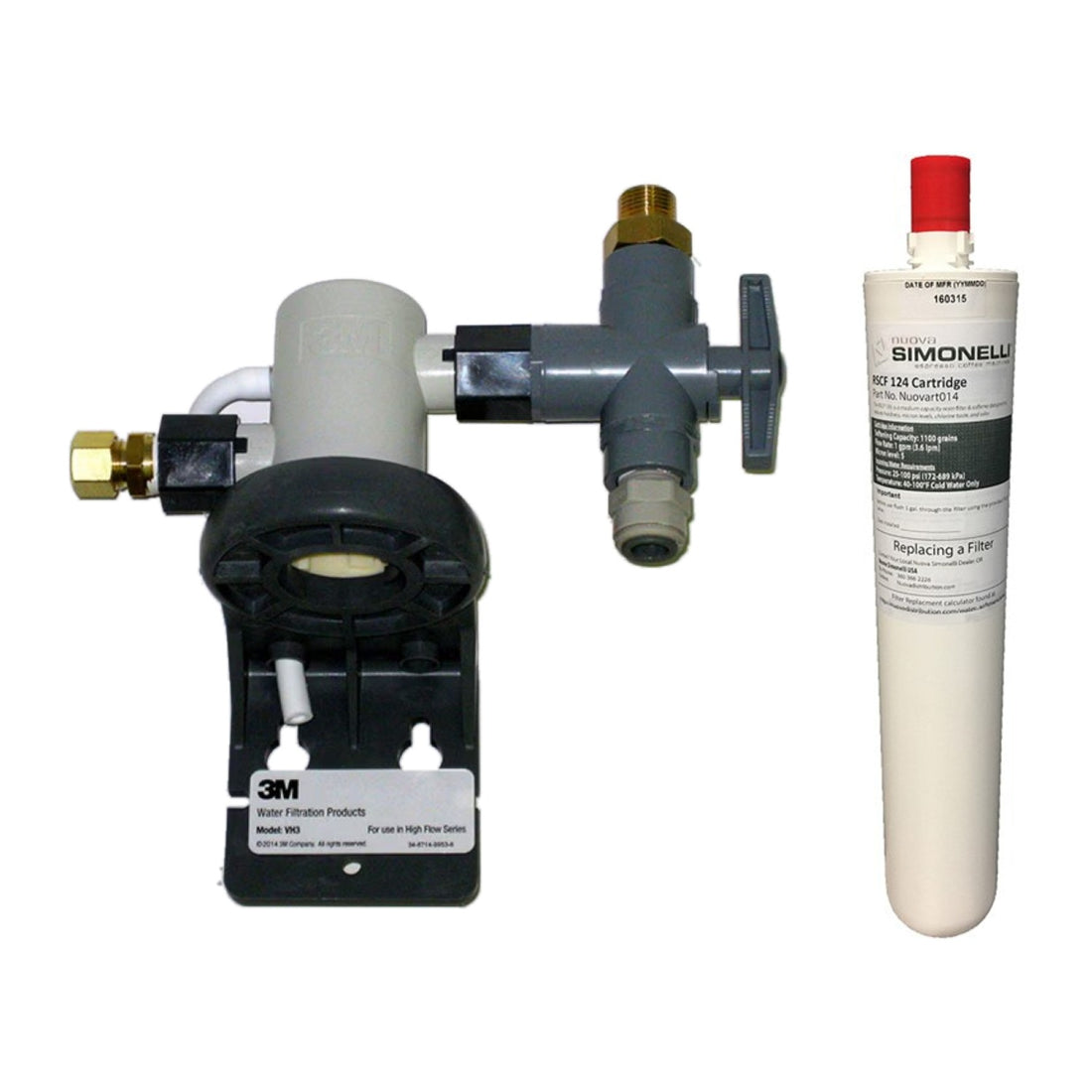

Nuova Simonelli Small Capacity Filtration System head and cartridge
Authorized dealer

Nuova Simonelli Small Capacity Filtration System

5.0 store rating (26) Top Quality Store on Google5.0 Google store rating (26)
$400
No sales taxPrice match

In stock Shipping $49.90

Ships in 1–3 days

Excellent4.7 on
  • Visa
  • Master
  • American express
  • Apple pay
  • Paypal
  • Affirm

About the Nuova Simonelli Small Capacity Filtration System

The Nuova Simonelli Small Capacity Filtration System is a complete water softening setup for espresso machines in lower volume settings. It pairs the RSCF 124 Softening Cartridge with the VH3 filter head, so you get everything needed to protect a plumbed espresso machine from scale.

This package includes

  • 1x RSCF 124 Softening Cartridge, 1,100 grains (NUOVART014)
  • 1x VH3 filter head, 3/8 in NPT (NUOVART005)

Features

  • Reduces water hardness to limit scale on boiler heating elements, and reduces chlorine taste and odor
  • Valve-in-head design shuts off and vents the water with a quarter turn for quick cartridge changes
  • Sanitary quick change cartridge: no contact with the filter media, no activation needed
  • 3/8 in FNPT horizontal inlet and outlet ports
  • Service flow rate of 0.5 gpm (1.9 lpm), up to 125 psi and 100°F
  • System materials are NSF and/or FDA CFR-21 compliant

Need more capacity? See the Nuova Simonelli Standard Capacity Filtration System (4,350 grains), or browse more from Nuova Simonelli.

Manuals & downloads2
Spec SheetNuova Simonelli Small Capacity Filtration SystemWarrantyAll Nuova Simonelli models

Questions about the Nuova Simonelli Small Capacity Filtration System6
What is included in the Small Capacity Filtration System?

The system includes the RSCF 124 Softening Cartridge (NUOVART014, 1,100 grains) and the VH3 filter head with 3/8 in NPT connections (NUOVART005).

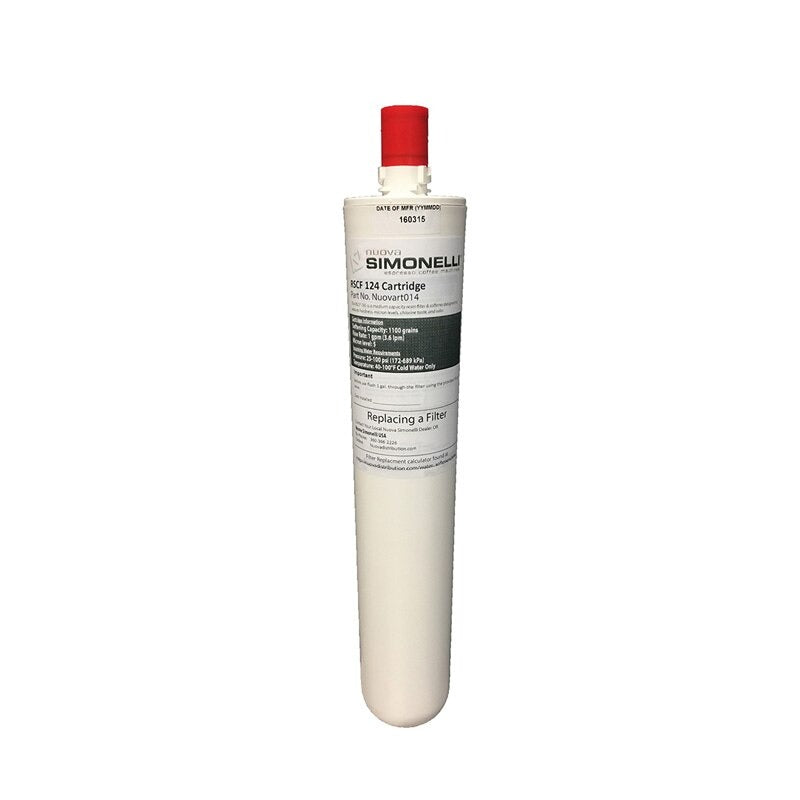

What does the RSCF 124 cartridge reduce?

It reduces water hardness (calcium and magnesium) to limit scale build-up on boiler heating elements, and reduces chlorine taste and odor.

How is the cartridge replaced?

The valve-in-head design shuts off and vents the water with a quarter turn, so the cartridge can be swapped without shutting off the water line. The cartridge is sanitary in design, so there is no contact with the filter media, and it needs no activation.

What are the operating limits of this system?

Maximum operating pressure is 125 psi (862 kPa), maximum operating temperature is 100°F (37.8°C), and the service flow rate is 0.5 gpm (1.9 lpm).

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
