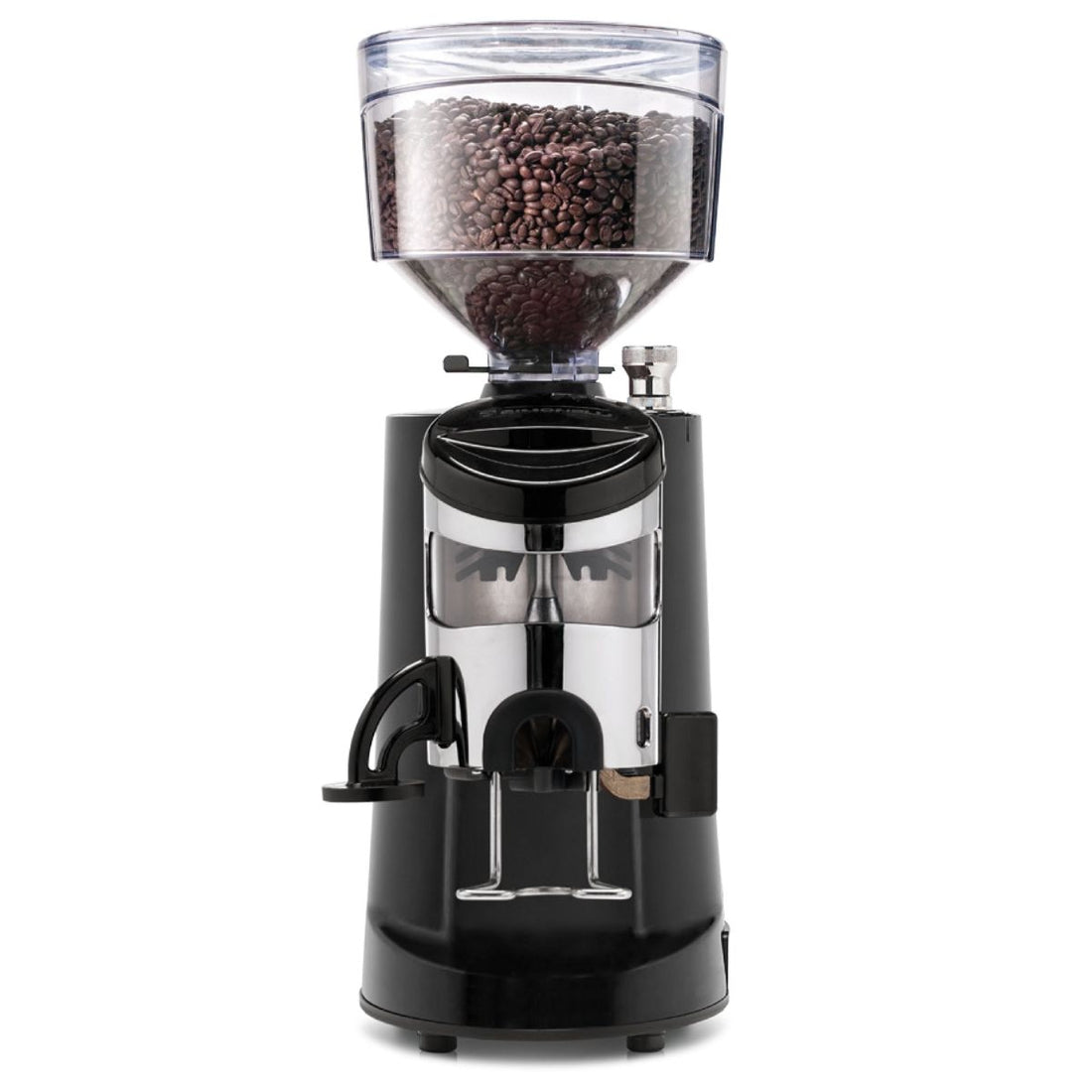

Nuova Simonelli MDXS Doser Espresso Grinder Black front view

Authorized dealer

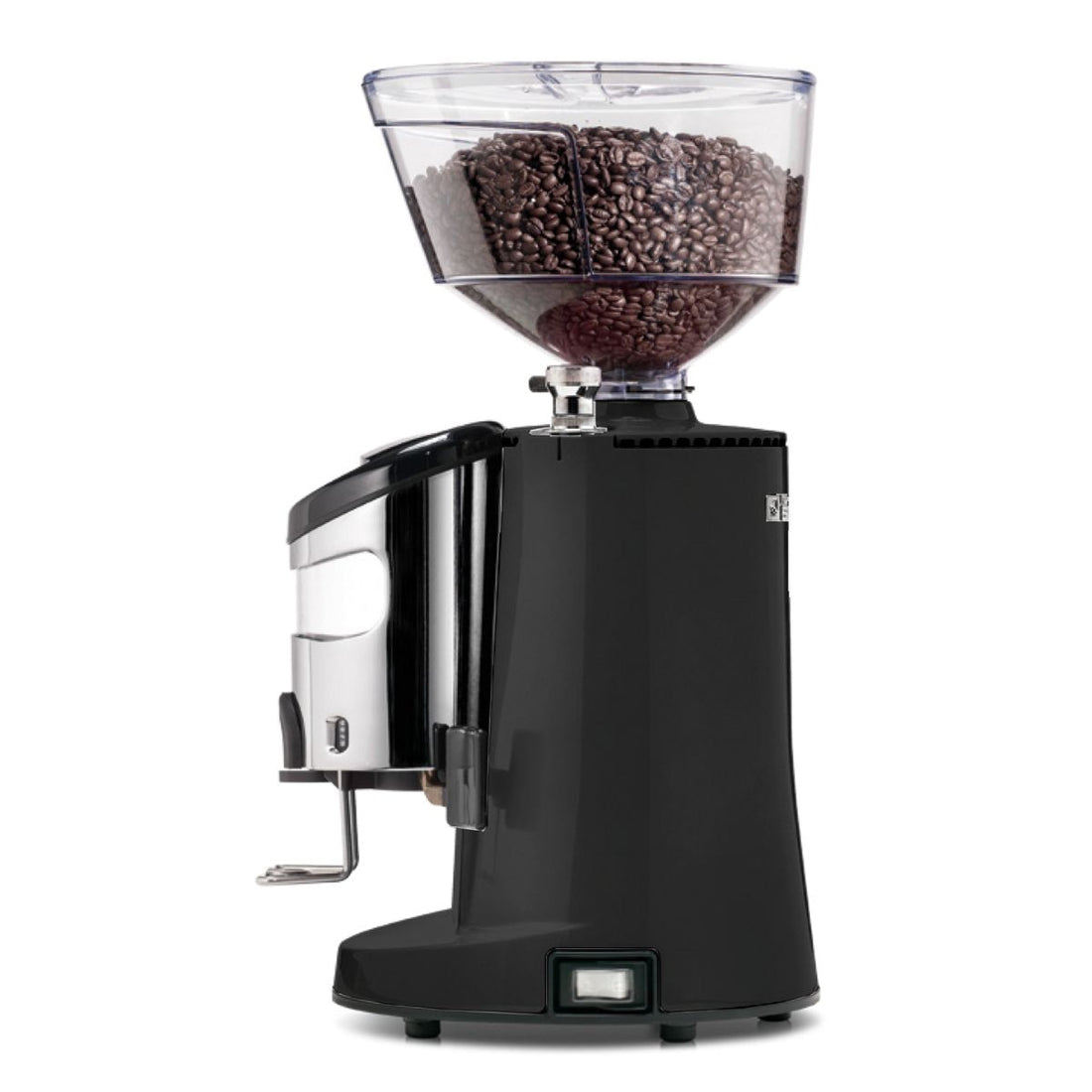

Nuova Simonelli MDXS Doser Espresso Grinder

$1,550

No sales taxPrice match

Version: Doser

Doser Doser with Shutoff Core On Demand On Demand Digit

In stock Shipping $89.90

Ships in 1–3 business days

Excellent

4.7 on

Key specs

65 mm flat burrsBurrs · Steel

DoserDosing

About 88 doubles per fillHopper · 1600 g (3.5 lb)

24.0 in tallSize · 8.5 in × 11.5 in footprint · 30.0 lb

Runs on a standard US outletPower · 245 W

See all specs ↓

About the Nuova Simonelli MDXS Doser Espresso Grinder

The Nuova Simonelli MDXS Doser is a commercial doser espresso grinder with a compact footprint, built for cafes that want a simple, dependable grinder. The baristas dose from a dosing chamber, and there is no display or programming to learn.

Key Features

65 mm burrs
Doser with a manual workflow: no programmable dosing, no LCD display
Micrometric grind adjustment
Sound insulation for a quieter cafe
Portafilter holder
1.6 kg transparent bean hopper

Specifications

Dimensions: 8.5 in wide x 11.5 in deep x 24 in high
Power: 110 V, 245 W, 3 A, NEMA 5-15 plug

Warranty

Backed by a 2-year manufacturer warranty, per the US distributor.

Specifications

Performance
Burr diameter	65 mm
Burr type	Flat
Burr material	Steel
Grind size adjustment	Stepless
Hopper capacity	1600 g (3.5 lb)
Dosing method	Doser
Control and display	Manual operation, no display
Dispensing	Doser
Physical Measurements
Width	8.5 in
Depth	11.5 in
Height	24.0 in
Net weight	30.0 lb
Shipping weight	35.0 lb
Body material	Die-cast aluminum
Power
Voltage	110 V
Wattage	245 W
Phase	1
Certifications
NSF certified	Yes
Model & Series
Series	MDXS
Warranty	2 years manufacturer warranty

Manuals & downloads5

Spec SheetNuova Simonelli MDXS Doser Espresso Grinder

ManualNuova Simonelli MDXS Doser Espresso Grinder

Spare PartsNuova Simonelli MDXS Doser Espresso Grinder

WarrantyAll Nuova Simonelli models

BrochureNuova Simonelli MDXS Doser Espresso Grinder

Questions about the Nuova Simonelli MDXS Doser Espresso Grinder5

What is the difference between the MDXS Doser, Doser with Shutoff, Core On Demand and On Demand Digit versions?

Doser: classic doser grinder with a manual workflow, no programmable dosing and no LCD display.
Doser with Shutoff: the same doser grinder with an automatic dosing chamber shutoff.
Core On Demand and On Demand Digit: on-demand versions that grind straight into the portafilter, with programmable dosing and an LCD display.

All versions share the same 8.5 x 11.5 x 24 inch footprint, 1.6 kg hopper, 65 mm burrs and 110 V power supply, per the US distributor.

What electrical supply does the MDXS need?

Every MDXS version runs on 110 V (110-125 V range), draws 245 W and 3 A, and uses a NEMA 5-15 plug, so it works on a standard US wall outlet. These figures come from the US distributor spec sheet.

How big is the MDXS and how much does the hopper hold?

The MDXS needs 8.5 in wide x 11.5 in deep x 24 in high of counter space and weighs 30 lb. Shipping weight is 35 lb, in a carton of 16 x 12 x 25 inches. The transparent hopper holds 1.6 kg of beans and the grinder uses 65 mm burrs.

What warranty comes with Nuova Simonelli espresso machines?

Nuova Simonelli espresso machines carry a 2-year manufacturer warranty, according to the US distributor. If a part is defective, the claim is made with the Defective Part Warranty Claim Form, which is available in the documents section of this page.

Does my Nuova Simonelli machine need a water softener or filter?

A water softener is mandatory whenever the incoming water does not meet the water specifications Nuova Simonelli requires. Running a machine on water outside those specs voids the warranty. A water filter is also recommended to protect the machine and keep your coffee tasting consistent.
